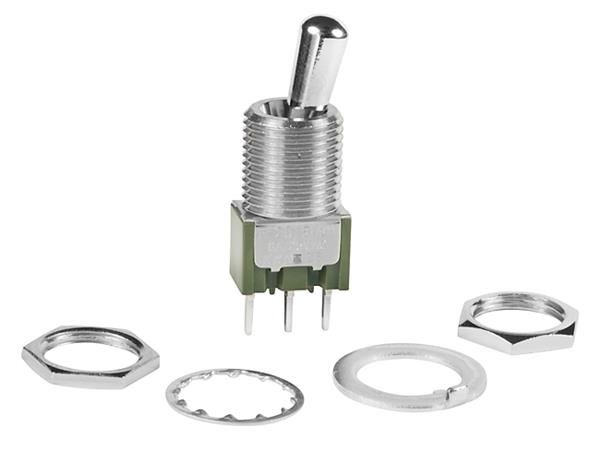

M2015BB1W03 NKK Switches
Виробник: NKK Switches
Description: SWITCH TOGGLE SPDT 6A 125V
Features: Epoxy Sealed Terminals
Packaging: Bulk
Current Rating (Amps): 6A (AC), 3A (DC)
Mounting Type: Panel Mount
Circuit: SPDT
Switch Function: On-Mom
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: M12 x 1
Actuator Length: 11.50mm
Actuator Type: Standard Round
Panel Cutout Dimensions: Circular - 12.50mm Dia
Voltage Rating - AC: 125 V
Voltage Rating - DC: 30 V
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 475.22 грн |
| 10+ | 411.78 грн |
| 25+ | 391.14 грн |
| 50+ | 351.52 грн |
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання:
21-31 дні (днів)
Відгуки про товар
Написати відгук
Технічний опис M2015BB1W03 NKK Switches
Category: Toggle Switches, Description: Switch: toggle; Pos: 2; SPDT; ON-(ON); 3A/250VAC; 3A/30VDC; M20, Mounting: on panel, Body dimensions: 7.9x13x9.4mm, Manufacturer series: M20, Operating temperature: -30...85°C, Electrical life: 25000 cycles, DC contacts rating @R: 3A / 30V DC, AC contacts rating @R: 3A / 250V AC, Lever length: 11.5mm, Contacts configuration: SPDT, Stable positions number: 1, Number of terminals: 3, Leads: for soldering; straight, Kind of toggle: round, Switching method: ON-(ON), Min. insulation resistance: 1GΩ, Max. contact resistance:: 10mΩ, Conform to the norm: CSA; UL, Illumination: none, Number of positions: 2, Actuator material: brass, Contact plating: silver plated, Lever plating: chromium, Contact material: silver, Poles number: 1, Type of switch: toggle, Mechanical durability: 100000 cycles.
Інші пропозиції M2015BB1W03 за ціною від 477.79 грн до 570.58 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||
|---|---|---|---|---|---|---|---|---|---|
|
M2015BB1W03 | NKK SWITCHES |
Category: Toggle SwitchesDescription: Switch: toggle; Pos: 2; SPDT; ON-(ON); 3A/250VAC; 3A/30VDC; M20 Mounting: on panel Body dimensions: 7.9x13x9.4mm Manufacturer series: M20 Operating temperature: -30...85°C Electrical life: 25000 cycles DC contacts rating @R: 3A / 30V DC AC contacts rating @R: 3A / 250V AC Lever length: 11.5mm Contacts configuration: SPDT Stable positions number: 1 Number of terminals: 3 Leads: for soldering; straight Kind of toggle: round Switching method: ON-(ON) Min. insulation resistance: 1GΩ Max. contact resistance:: 10mΩ Conform to the norm: CSA; UL Illumination: none Number of positions: 2 Actuator material: brass Contact plating: silver plated Lever plating: chromium Contact material: silver Poles number: 1 Type of switch: toggle Mechanical durability: 100000 cycles |
на замовлення 4 шт: термін постачання 14-30 дні (днів) |
|
| M2015BB1W03 |
![]() |
Виробник: NKK SWITCHES
Category: Toggle Switches
Description: Switch: toggle; Pos: 2; SPDT; ON-(ON); 3A/250VAC; 3A/30VDC; M20
Mounting: on panel
Body dimensions: 7.9x13x9.4mm
Manufacturer series: M20
Operating temperature: -30...85°C
Electrical life: 25000 cycles
DC contacts rating @R: 3A / 30V DC
AC contacts rating @R: 3A / 250V AC
Lever length: 11.5mm
Contacts configuration: SPDT
Stable positions number: 1
Number of terminals: 3
Leads: for soldering; straight
Kind of toggle: round
Switching method: ON-(ON)
Min. insulation resistance: 1GΩ
Max. contact resistance:: 10mΩ
Conform to the norm: CSA; UL
Illumination: none
Number of positions: 2
Actuator material: brass
Contact plating: silver plated
Lever plating: chromium
Contact material: silver
Poles number: 1
Type of switch: toggle
Mechanical durability: 100000 cycles
Category: Toggle Switches
Description: Switch: toggle; Pos: 2; SPDT; ON-(ON); 3A/250VAC; 3A/30VDC; M20
Mounting: on panel
Body dimensions: 7.9x13x9.4mm
Manufacturer series: M20
Operating temperature: -30...85°C
Electrical life: 25000 cycles
DC contacts rating @R: 3A / 30V DC
AC contacts rating @R: 3A / 250V AC
Lever length: 11.5mm
Contacts configuration: SPDT
Stable positions number: 1
Number of terminals: 3
Leads: for soldering; straight
Kind of toggle: round
Switching method: ON-(ON)
Min. insulation resistance: 1GΩ
Max. contact resistance:: 10mΩ
Conform to the norm: CSA; UL
Illumination: none
Number of positions: 2
Actuator material: brass
Contact plating: silver plated
Lever plating: chromium
Contact material: silver
Poles number: 1
Type of switch: toggle
Mechanical durability: 100000 cycles
на замовлення 4 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 570.58 грн |
| 2+ | 477.79 грн |
