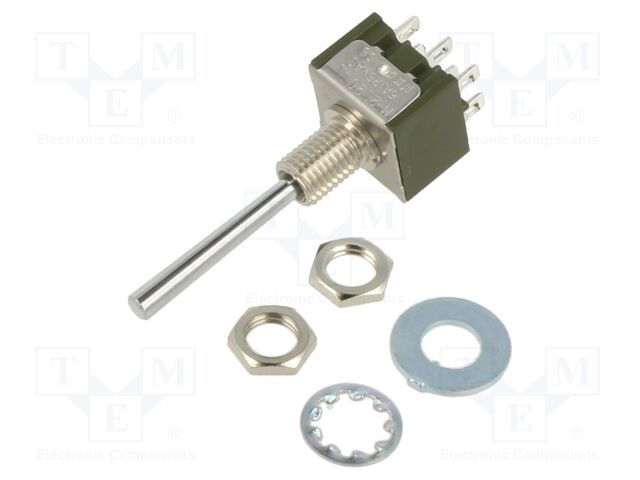

M2024Q4S4W01 NKK Switches
Виробник: NKK Switches
Description: SWITCH TOGGLE SP3T 6A 125V
Features: Jumper needed to achieve triple throw
Packaging: Bulk
Current Rating (Amps): 6A (AC), 3A (DC)
Mounting Type: Panel Mount
Circuit: SP3T
Switch Function: On-On-On
Operating Temperature: -30°C ~ 85°C
Termination Style: Solder Lug
Illumination: Non-Illuminated
Bushing Thread: M6 x 0.75
Actuator Length: 21.30mm
Actuator Type: Standard Round
Panel Cutout Dimensions: Circular - 6.50mm Dia
Voltage Rating - AC: 125 V
Voltage Rating - DC: 30 V
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 532.80 грн |
| 10+ | 462.50 грн |
| 25+ | 439.31 грн |
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання:
21-31 дні (днів)
Відгуки про товар
Написати відгук
Технічний опис M2024Q4S4W01 NKK Switches
Category: Toggle Switches, Description: Switch: toggle; Pos: 3; SP3T; ON-ON-ON; 3A/250VAC; 3A/30VDC; M20, Mounting: on panel, Body dimensions: 12.7x13x9.4mm, Manufacturer series: M20, Operating temperature: -30...85°C, Electrical life: 25000 cycles, DC contacts rating @R: 3A / 30V DC, AC contacts rating @R: 3A / 250V AC, Lever length: 21.3mm, Contacts configuration: SP3T, Stable positions number: 3, Number of terminals: 6, Leads: for soldering, Kind of toggle: round, Switching method: ON-ON-ON, Min. insulation resistance: 1GΩ, Max. contact resistance:: 10mΩ, Conform to the norm: CSA; UL, Illumination: none, Number of positions: 3, Actuator material: brass, Contact plating: silver plated, Lever plating: chromium, Contact material: silver, Poles number: 1, Type of switch: toggle, Mechanical durability: 100000 cycles.
Інші пропозиції M2024Q4S4W01 за ціною від 445.22 грн до 954.79 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2024Q4S4W01 | NKK SWITCHES |
Category: Toggle SwitchesDescription: Switch: toggle; Pos: 3; SP3T; ON-ON-ON; 3A/250VAC; 3A/30VDC; M20 Mounting: on panel Body dimensions: 12.7x13x9.4mm Manufacturer series: M20 Operating temperature: -30...85°C Electrical life: 25000 cycles DC contacts rating @R: 3A / 30V DC AC contacts rating @R: 3A / 250V AC Lever length: 21.3mm Contacts configuration: SP3T Stable positions number: 3 Number of terminals: 6 Leads: for soldering Kind of toggle: round Switching method: ON-ON-ON Min. insulation resistance: 1GΩ Max. contact resistance:: 10mΩ Conform to the norm: CSA; UL Illumination: none Number of positions: 3 Actuator material: brass Contact plating: silver plated Lever plating: chromium Contact material: silver Poles number: 1 Type of switch: toggle Mechanical durability: 100000 cycles |
на замовлення 40 шт: термін постачання 14-30 дні (днів) |
|
||||||
|
M2024Q4S4W01 | NKK Switches |
Switch Toggle ON ON ON SP3T Small Cone Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads |
на замовлення 66 шт: термін постачання 21-31 дні (днів) |
|
| M2024Q4S4W01 |
![]() |
Виробник: NKK SWITCHES
Category: Toggle Switches
Description: Switch: toggle; Pos: 3; SP3T; ON-ON-ON; 3A/250VAC; 3A/30VDC; M20
Mounting: on panel
Body dimensions: 12.7x13x9.4mm
Manufacturer series: M20
Operating temperature: -30...85°C
Electrical life: 25000 cycles
DC contacts rating @R: 3A / 30V DC
AC contacts rating @R: 3A / 250V AC
Lever length: 21.3mm
Contacts configuration: SP3T
Stable positions number: 3
Number of terminals: 6
Leads: for soldering
Kind of toggle: round
Switching method: ON-ON-ON
Min. insulation resistance: 1GΩ
Max. contact resistance:: 10mΩ
Conform to the norm: CSA; UL
Illumination: none
Number of positions: 3
Actuator material: brass
Contact plating: silver plated
Lever plating: chromium
Contact material: silver
Poles number: 1
Type of switch: toggle
Mechanical durability: 100000 cycles
Category: Toggle Switches
Description: Switch: toggle; Pos: 3; SP3T; ON-ON-ON; 3A/250VAC; 3A/30VDC; M20
Mounting: on panel
Body dimensions: 12.7x13x9.4mm
Manufacturer series: M20
Operating temperature: -30...85°C
Electrical life: 25000 cycles
DC contacts rating @R: 3A / 30V DC
AC contacts rating @R: 3A / 250V AC
Lever length: 21.3mm
Contacts configuration: SP3T
Stable positions number: 3
Number of terminals: 6
Leads: for soldering
Kind of toggle: round
Switching method: ON-ON-ON
Min. insulation resistance: 1GΩ
Max. contact resistance:: 10mΩ
Conform to the norm: CSA; UL
Illumination: none
Number of positions: 3
Actuator material: brass
Contact plating: silver plated
Lever plating: chromium
Contact material: silver
Poles number: 1
Type of switch: toggle
Mechanical durability: 100000 cycles
на замовлення 40 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 570.58 грн |
| 2+ | 470.91 грн |
| 6+ | 445.22 грн |
| M2024Q4S4W01 |
![]() |
Виробник: NKK Switches
Switch Toggle ON ON ON SP3T Small Cone Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
Switch Toggle ON ON ON SP3T Small Cone Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
на замовлення 66 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 16+ | 954.79 грн |
| 17+ | 853.36 грн |
