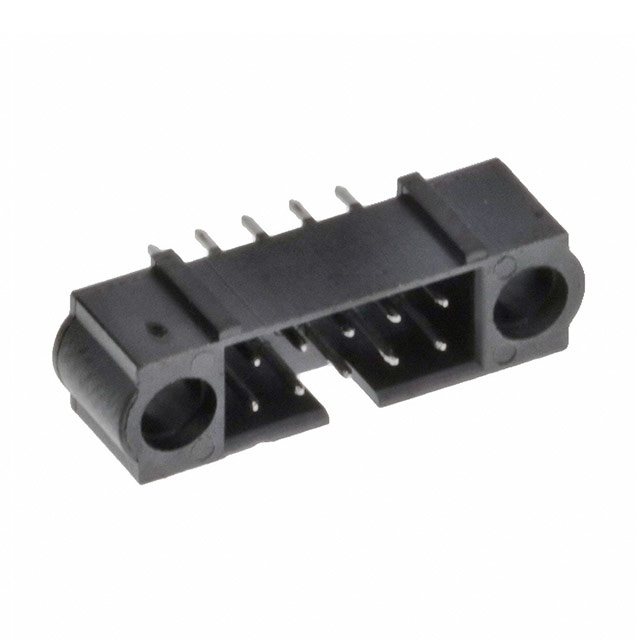

M225-5201046 HARWIN
Виробник: HARWIN
Description: HARWIN - M225-5201046 - Stiftleiste, Wire-to-Board, 2 mm, 2 Reihe(n), 10 Kontakt(e), Durchsteckmontage, M225 Pin
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Produktpalette: M225 Pin
productTraceability: No
Kontaktanschluss: Durchsteckmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (17-Jan-2023)
Відгуки про товар
Написати відгук
Технічний опис M225-5201046 HARWIN
Description: CONN HEADER VERT 10POS 2MM, Features: Mating Flange, Polarizing Key, Packaging: Tube, Connector Type: Plug, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-In, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 118.1µin (3.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції M225-5201046
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
|
M225-5201046 | Harwin Inc. |
Description: CONN HEADER VERT 10POS 2MMFeatures: Mating Flange, Polarizing Key Packaging: Tube Connector Type: Plug Current Rating (Amps): 3A Mounting Type: Through Hole Number of Positions: 10 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-In Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 118.1µin (3.00µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.130" (3.30mm) Insulation Height: 0.220" (5.60mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
товару немає в наявності |
Мінімальне замовлення: 1014 шт В кошику од. на суму грн. |
| M225-5201046 |
![]() |
Виробник: Harwin Inc.
Description: CONN HEADER VERT 10POS 2MM
Features: Mating Flange, Polarizing Key
Packaging: Tube
Connector Type: Plug
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-In
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 118.1µin (3.00µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
