| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 328.87 грн |
| 10+ | 322.48 грн |
| 25+ | 214.91 грн |
| 94+ | 197.98 грн |
| 517+ | 181.06 грн |
| 1034+ | 172.22 грн |
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання:
31-40 дні (днів)
Відгуки про товар
Написати відгук

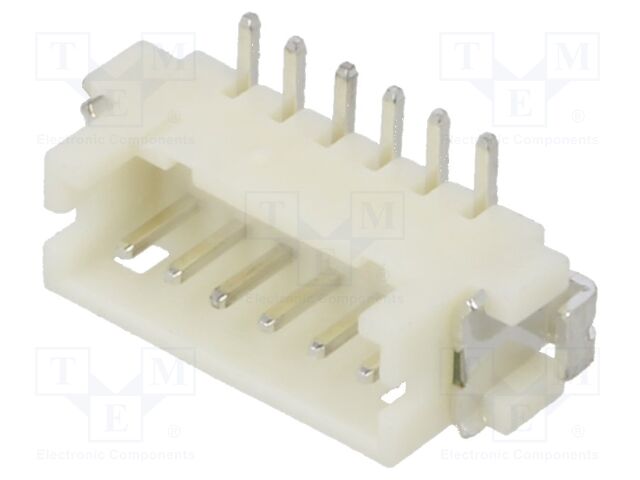

Технічний опис M30-6000646 Harwin
Description: CONN HEADER SMD 6POS 1.25MM, Features: Board Guide, Solder Retention, Packaging: Tube, Connector Type: Header, Voltage Rating: 150V, Current Rating (Amps): 1A per Contact, Mounting Type: Surface Mount, Number of Positions: 6, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -25°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Detent Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Natural, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 80.0µin (2.03µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.189" (4.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA6T), Nylon 6T.
Інші пропозиції M30-6000646 за ціною від 168.60 грн до 341.55 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
M30-6000646 | HARWIN |
 Category: Raster signal connectors 1,25mmDescription: Connector: wire-board; plug; male; data; 1A; 150V; PIN: 6; shrouded Type of connector: wire-board Connector: plug Kind of connector: male Connector family: data Number of pins: 6 Contacts pitch: 1.25mm Contact plating: tinned Spatial orientation: vertical Electrical mounting: SMT; soldering Body material: polyamide Rated voltage: 0.15kV Flammability rating: UL94V-0 Connector variant: shrouded Current rating: 1A Operating temperature: -25...85°C Mechanical mounting: on PCBs |
на замовлення 11 шт: термін постачання 14-30 дні (днів) |
|
||||
 |
M30-6000646 | Harwin Inc. |
Description: CONN HEADER SMD 6POS 1.25MM Features: Board Guide, Solder Retention Packaging: Tube Connector Type: Header Voltage Rating: 150V Current Rating (Amps): 1A per Contact Mounting Type: Surface Mount Number of Positions: 6 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -25°C ~ 85°C Contact Type: Male Pin Fastening Type: Detent Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Natural Pitch - Mating: 0.049" (1.25mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 80.0µin (2.03µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.189" (4.80mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA6T), Nylon 6T |
на замовлення 103 шт: термін постачання 21-31 дні (днів) |
|
||||
 |
M30-6000646 | HARWIN |
Description: HARWIN - M30-6000646 - Stiftleiste, Wire-to-Board, 1.25 mm, 1 Reihe(n), 6 Kontakt(e), Oberflächenmontage, M30-6 tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Messing usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 6Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: M30-6 productTraceability: No Kontaktanschluss: Oberflächenmontage Anzahl der Reihen: 1Reihe(n) Rastermaß: 1.25mm SVHC: No SVHC (21-Jan-2025) |
на замовлення 8 шт: термін постачання 21-31 дні (днів) |
В кошику од. на суму грн. |
| M30-6000646 |
|
Виробник: HARWIN
Category: Raster signal connectors 1,25mm
Description: Connector: wire-board; plug; male; data; 1A; 150V; PIN: 6; shrouded
Type of connector: wire-board
Connector: plug
Kind of connector: male
Connector family: data
Number of pins: 6
Contacts pitch: 1.25mm
Contact plating: tinned
Spatial orientation: vertical
Electrical mounting: SMT; soldering
Body material: polyamide
Rated voltage: 0.15kV
Flammability rating: UL94V-0
Connector variant: shrouded
Current rating: 1A
Operating temperature: -25...85°C
Mechanical mounting: on PCBs
Category: Raster signal connectors 1,25mm
Description: Connector: wire-board; plug; male; data; 1A; 150V; PIN: 6; shrouded
Type of connector: wire-board
Connector: plug
Kind of connector: male
Connector family: data
Number of pins: 6
Contacts pitch: 1.25mm
Contact plating: tinned
Spatial orientation: vertical
Electrical mounting: SMT; soldering
Body material: polyamide
Rated voltage: 0.15kV
Flammability rating: UL94V-0
Connector variant: shrouded
Current rating: 1A
Operating temperature: -25...85°C
Mechanical mounting: on PCBs
на замовлення 11 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 332.73 грн |
| 6+ | 168.60 грн |
| M30-6000646 |
|
Виробник: Harwin Inc.
Description: CONN HEADER SMD 6POS 1.25MM
Features: Board Guide, Solder Retention
Packaging: Tube
Connector Type: Header
Voltage Rating: 150V
Current Rating (Amps): 1A per Contact
Mounting Type: Surface Mount
Number of Positions: 6
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 80.0µin (2.03µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.189" (4.80mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA6T), Nylon 6T
Description: CONN HEADER SMD 6POS 1.25MM
Features: Board Guide, Solder Retention
Packaging: Tube
Connector Type: Header
Voltage Rating: 150V
Current Rating (Amps): 1A per Contact
Mounting Type: Surface Mount
Number of Positions: 6
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 80.0µin (2.03µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.189" (4.80mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA6T), Nylon 6T
на замовлення 103 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 341.55 грн |
| 47+ | 275.97 грн |
| M30-6000646 |
|
Виробник: HARWIN
Description: HARWIN - M30-6000646 - Stiftleiste, Wire-to-Board, 1.25 mm, 1 Reihe(n), 6 Kontakt(e), Oberflächenmontage, M30-6
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Messing
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 6Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: M30-6
productTraceability: No
Kontaktanschluss: Oberflächenmontage
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 1.25mm
SVHC: No SVHC (21-Jan-2025)
Description: HARWIN - M30-6000646 - Stiftleiste, Wire-to-Board, 1.25 mm, 1 Reihe(n), 6 Kontakt(e), Oberflächenmontage, M30-6
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Messing
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 6Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: M30-6
productTraceability: No
Kontaktanschluss: Oberflächenmontage
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 1.25mm
SVHC: No SVHC (21-Jan-2025)
на замовлення 8 шт:
термін постачання 21-31 дні (днів)
