M50-3532042 HARWIN
Виробник: HARWIN
Description: HARWIN - M50-3532042 - Stiftleiste, Board-to-Board, 1.27 mm, 1 Reihe(n), 20 Kontakt(e), Durchsteckmontage
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Messing
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 20Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Archer M50 Series
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Durchsteckmontage
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 1.27mm
SVHC: No SVHC (04-Feb-2026)
| Кількість | Ціна без ПДВ |
|---|---|
| 18+ | 46.98 грн |
| 100+ | 40.40 грн |
Відгуки про товар
Написати відгук
Технічний опис M50-3532042 HARWIN

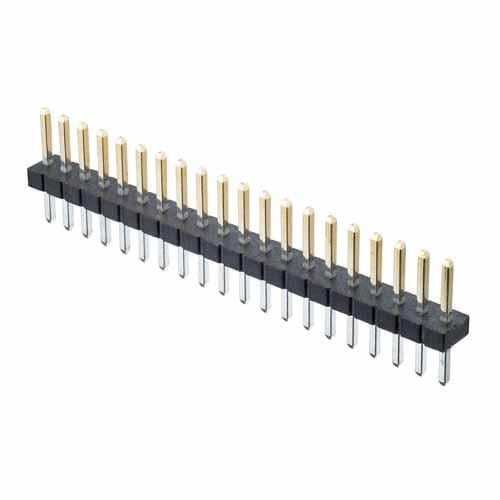

Description: CONN HEADER VERT 20POS 1.27MM, Contact Length - Mating: 0.118" (3.00mm), Insulation Material: Polyamide (PA9T), Nylon 9T, Overall Contact Length: 0.248" (6.30mm), Shrouding: Unshrouded, Insulation Height: 0.039" (1.00mm), Contact Length - Post: 0.091" (2.30mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -40°C ~ 105°C, Style: Board to Board, Number of Rows: 1, Number of Positions: 20, Mounting Type: Through Hole, Current Rating (Amps): 1A per Contact, Connector Type: Header, Packaging: Box.
Інші пропозиції M50-3532042 за ціною від 25.77 грн до 52.52 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M50-3532042 | Harwin Inc. |
Description: CONN HEADER VERT 20POS 1.27MM Contact Length - Mating: 0.118" (3.00mm) Insulation Material: Polyamide (PA9T), Nylon 9T Overall Contact Length: 0.248" (6.30mm) Shrouding: Unshrouded Insulation Height: 0.039" (1.00mm) Contact Length - Post: 0.091" (2.30mm) Contact Shape: Square Part Status: Active Contact Finish - Post: Tin Contact Finish - Mating: Gold Pitch - Mating: 0.050" (1.27mm) Insulation Color: Black Contact Material: Brass Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -40°C ~ 105°C Style: Board to Board Number of Rows: 1 Number of Positions: 20 Mounting Type: Through Hole Current Rating (Amps): 1A per Contact Connector Type: Header Packaging: Box |
на замовлення 1752 шт: термін постачання 21-31 дні (днів) |
|
| M50-3532042 |
|
Виробник: Harwin Inc.
Description: CONN HEADER VERT 20POS 1.27MM
Contact Length - Mating: 0.118" (3.00mm)
Insulation Material: Polyamide (PA9T), Nylon 9T
Overall Contact Length: 0.248" (6.30mm)
Shrouding: Unshrouded
Insulation Height: 0.039" (1.00mm)
Contact Length - Post: 0.091" (2.30mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Brass
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -40°C ~ 105°C
Style: Board to Board
Number of Rows: 1
Number of Positions: 20
Mounting Type: Through Hole
Current Rating (Amps): 1A per Contact
Connector Type: Header
Packaging: Box
Description: CONN HEADER VERT 20POS 1.27MM
Contact Length - Mating: 0.118" (3.00mm)
Insulation Material: Polyamide (PA9T), Nylon 9T
Overall Contact Length: 0.248" (6.30mm)
Shrouding: Unshrouded
Insulation Height: 0.039" (1.00mm)
Contact Length - Post: 0.091" (2.30mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Brass
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -40°C ~ 105°C
Style: Board to Board
Number of Rows: 1
Number of Positions: 20
Mounting Type: Through Hole
Current Rating (Amps): 1A per Contact
Connector Type: Header
Packaging: Box
на замовлення 1752 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 6+ | 52.52 грн |
| 10+ | 41.36 грн |
| 250+ | 31.05 грн |
| 500+ | 27.40 грн |
| 1000+ | 25.77 грн |
