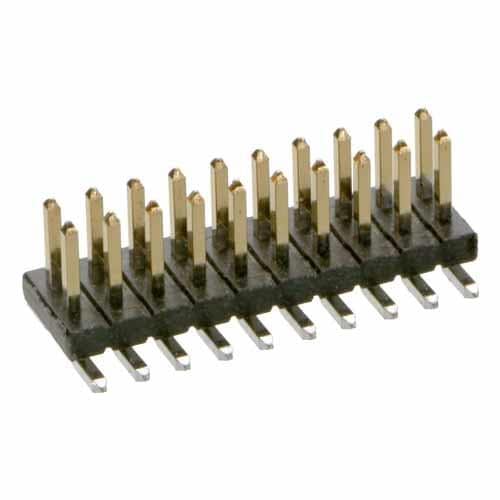

M50-3601042 HARWIN
Виробник: HARWIN
Category: Board-to-board connectors
Description: Connector: pin strips; pin header; male; PIN: 20; ARCHER; straight
Number of pins: 20
Spatial orientation: straight
Contact material: brass
Body colour: black
Electrical mounting: SMT; soldering
Kind of connector: male
Mechanical mounting: on PCBs
Contact plating: gold-plated
Body material: polyamide
Connector: pin header
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Contacts pitch: 1.27mm
Lead length: 2.3mm
Height: 4.68mm
Overall length: 12.7mm
Length: 12.7mm
Max. contact resistance:: 20mΩ
Current rating: 1A
Maximum current: 1A
Manufacturer series: ARCHER
Type of connector: pin strips
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 162.57 грн |
| 10+ | 129.15 грн |
| 25+ | 121.60 грн |
| 100+ | 109.86 грн |
| 250+ | 102.32 грн |
Відгуки про товар
Написати відгук
Технічний опис M50-3601042 HARWIN
Description: CONN HEADER SMD 20POS 1.27MM, Packaging: Bulk, Connector Type: Header, Current Rating (Amps): 1A, Mounting Type: Surface Mount, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.039" (1.00mm), Shrouding: Unshrouded, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.118" (3.00mm).
Інші пропозиції M50-3601042 за ціною від 92.97 грн до 199.96 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M50-3601042 | Harwin Inc. |
Description: CONN HEADER SMD 20POS 1.27MM Packaging: Bulk Connector Type: Header Current Rating (Amps): 1A Mounting Type: Surface Mount Number of Positions: 20 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.039" (1.00mm) Shrouding: Unshrouded Insulation Material: Thermoplastic Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.118" (3.00mm) |
на замовлення 1540 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
M50-3601042 | HARWIN |
Description: HARWIN - M50-3601042 - Stiftleiste, Board-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e), Oberflächenmontage tariffCode: 85366990 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Kupferlegierung isCanonical: Y Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 20Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Board-to-Board Steckverbinder: Stiftleiste Produktpalette: Archer M50 Series productTraceability: Yes-Date/Lot Code Kontaktanschluss: Oberflächenmontage usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm |
на замовлення 785 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
M50-3601042 | Harwin |
Headers & Wire Housings 10+10 DIL PIN HDR SMT Au/Sn |
на замовлення 1111 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| M50-3601042 |
|
Виробник: Harwin Inc.
Description: CONN HEADER SMD 20POS 1.27MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 1A
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.118" (3.00mm)
Description: CONN HEADER SMD 20POS 1.27MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 1A
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.118" (3.00mm)
на замовлення 1540 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 170.09 грн |
| 10+ | 138.96 грн |
| 400+ | 107.04 грн |
| 800+ | 95.66 грн |
| 1200+ | 92.97 грн |
| M50-3601042 |
|
Виробник: HARWIN
Description: HARWIN - M50-3601042 - Stiftleiste, Board-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e), Oberflächenmontage
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 20Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board
Steckverbinder: Stiftleiste
Produktpalette: Archer M50 Series
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Oberflächenmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
Description: HARWIN - M50-3601042 - Stiftleiste, Board-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e), Oberflächenmontage
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 20Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board
Steckverbinder: Stiftleiste
Produktpalette: Archer M50 Series
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Oberflächenmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
на замовлення 785 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 5+ | 199.96 грн |
| 10+ | 150.38 грн |
| 100+ | 147.12 грн |
| 250+ | 134.35 грн |
| M50-3601042 |
|
Виробник: Harwin
Headers & Wire Housings 10+10 DIL PIN HDR SMT Au/Sn
Headers & Wire Housings 10+10 DIL PIN HDR SMT Au/Sn
на замовлення 1111 шт:
термін постачання 21-30 дні (днів)
