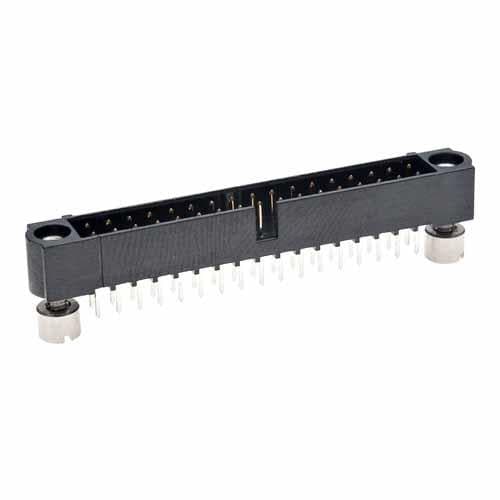

M80-5103422 Harwin Inc.
Виробник: Harwin Inc.Description: CONN HEADER VERT 34POS 2MM
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 34
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
на замовлення 48 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1229.27 грн |
| 12+ | 949.35 грн |
Відгуки про товар
Написати відгук
Технічний опис M80-5103422 Harwin Inc.
Description: CONN HEADER VERT 34POS 2MM, Packaging: Tube, Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Number of Positions: 34, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin-Lead, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції M80-5103422 за ціною від 887.49 грн до 1428.65 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-5103422 | Виробник : Harwin |
Power to the Board 17+17 POS VERT MALE 3mm TAIL W/JS TIN/LD |
на замовлення 48 шт: термін постачання 86-95 дні (днів) |
|
||||||||||
 |
M80-5103422 | Виробник : HARWIN |
Description: HARWIN - M80-5103422 - Stiftleiste, Wire-to-Board, 2 mm, 2 Reihe(n), 34 Kontakt(e), Durchsteckmontage, gerade tariffCode: 85366930 rohsCompliant: NO Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: NO Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 34Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbindertyp: PCB Header Produktpalette: Datamate J-Tek M80 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: Lead (27-Jun-2024) |
на замовлення 18 шт: термін постачання 21-31 дні (днів) |
|
