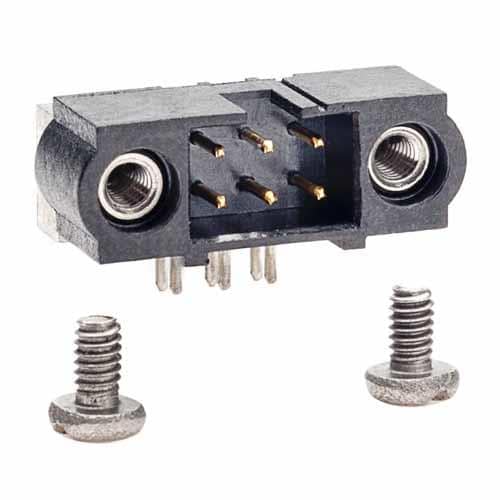

M80-5400622 HARWIN
Виробник: HARWINDescription: HARWIN - M80-5400622 - Stiftleiste, Wire-to-Board, 2 mm, 2 Reihe(n), 6 Kontakt(e), Durchsteckmontage, Datamate J-Tek M80
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 6Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Produktpalette: Datamate J-Tek M80
productTraceability: No
Kontaktanschluss: Durchsteckmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (17-Jan-2023)
на замовлення 16 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 16+ | 1216.75 грн |
Відгуки про товар
Написати відгук
Технічний опис M80-5400622 HARWIN
Description: CONN HEADER R/A 6POS 2MM, Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Packaging: Tube, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 6, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Threaded, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin-Lead, Contact Shape: Circular, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.218" (5.55mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
