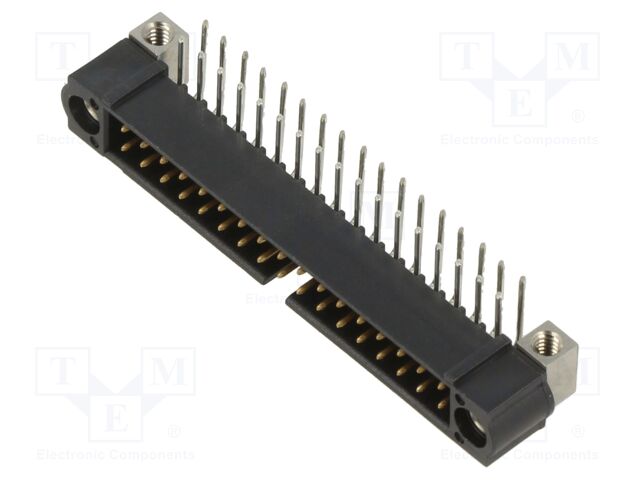

M80-5403442
Код товару: 188258
Додати до обраних
Обраний товар
Виробник:
Роз'єми, клеми, з'єднувачі > Інтерфейсні (D-SUB та ін.)
Відгуки про товар
Написати відгук
Інші пропозиції M80-5403442 за ціною від 1096.80 грн до 2332.84 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-5403442 | HARWIN |
Category: Raster signal connectors 2,00mm Description: Connector: PCB-cable/PCB; socket; male; PIN: 34; Datamate J-Tek; 3A Type of connector: PCB-cable/PCB Connector: socket Kind of connector: male Number of pins: 34 Electrical mounting: THT Spatial orientation: angled 90° Contacts pitch: 2mm Connector pinout layout: 2x17 Mechanical mounting: on PCBs Locking system: screws Contact plating: gold-plated Rated voltage: 0.8kV Manufacturer series: Datamate J-Tek Current rating: 3A Thread: M2 x 0,4mm |
на замовлення 64 шт: термін постачання 14-30 дні (днів) |
|
||||||
 |
M80-5403442 | Harwin Inc. |
Description: CONN HEADER R/A 34POS 2MM Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware Packaging: Tube Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A Mounting Type: Through Hole, Right Angle Number of Positions: 34 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Threaded Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.218" (5.55mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
на замовлення 43 шт: термін постачання 21-31 дні (днів) |
|
||||||
 |
M80-5403442 | Harwin |
Conn Datamate HDR 34 POS 2mm Solder RA Side Entry Thru-Hole Tube |
на замовлення 12 шт: термін постачання 21-31 дні (днів) |
|
||||||
 |
M80-5403442 | HARWIN |
Description: HARWIN - M80-5403442 - Stiftleiste, Wire-to-Board, 2 mm, 2 Reihe(n), 34 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 34Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Produktpalette: Datamate J-Tek M80 productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (17-Jan-2023) |
на замовлення 246 шт: термін постачання 21-31 дні (днів) |
В кошику од. на суму грн. |
| M80-5403442 |
|
Виробник: HARWIN
Category: Raster signal connectors 2,00mm
Description: Connector: PCB-cable/PCB; socket; male; PIN: 34; Datamate J-Tek; 3A
Type of connector: PCB-cable/PCB
Connector: socket
Kind of connector: male
Number of pins: 34
Electrical mounting: THT
Spatial orientation: angled 90°
Contacts pitch: 2mm
Connector pinout layout: 2x17
Mechanical mounting: on PCBs
Locking system: screws
Contact plating: gold-plated
Rated voltage: 0.8kV
Manufacturer series: Datamate J-Tek
Current rating: 3A
Thread: M2 x 0,4mm
Category: Raster signal connectors 2,00mm
Description: Connector: PCB-cable/PCB; socket; male; PIN: 34; Datamate J-Tek; 3A
Type of connector: PCB-cable/PCB
Connector: socket
Kind of connector: male
Number of pins: 34
Electrical mounting: THT
Spatial orientation: angled 90°
Contacts pitch: 2mm
Connector pinout layout: 2x17
Mechanical mounting: on PCBs
Locking system: screws
Contact plating: gold-plated
Rated voltage: 0.8kV
Manufacturer series: Datamate J-Tek
Current rating: 3A
Thread: M2 x 0,4mm
на замовлення 64 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1393.58 грн |
| 30+ | 1157.04 грн |
| 60+ | 1096.80 грн |
| M80-5403442 |
|
Виробник: Harwin Inc.
Description: CONN HEADER R/A 34POS 2MM
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 34
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.218" (5.55mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Description: CONN HEADER R/A 34POS 2MM
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 34
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.218" (5.55mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
на замовлення 43 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1692.28 грн |
| 12+ | 1367.41 грн |
| M80-5403442 |
|
Виробник: Harwin
Conn Datamate HDR 34 POS 2mm Solder RA Side Entry Thru-Hole Tube
Conn Datamate HDR 34 POS 2mm Solder RA Side Entry Thru-Hole Tube
на замовлення 12 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 7+ | 2332.84 грн |
| 12+ | 2187.73 грн |
| M80-5403442 |
|
Виробник: HARWIN
Description: HARWIN - M80-5403442 - Stiftleiste, Wire-to-Board, 2 mm, 2 Reihe(n), 34 Kontakt(e), Durchsteckmontage
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 34Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Produktpalette: Datamate J-Tek M80
productTraceability: No
Kontaktanschluss: Durchsteckmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (17-Jan-2023)
Description: HARWIN - M80-5403442 - Stiftleiste, Wire-to-Board, 2 mm, 2 Reihe(n), 34 Kontakt(e), Durchsteckmontage
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 34Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Produktpalette: Datamate J-Tek M80
productTraceability: No
Kontaktanschluss: Durchsteckmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (17-Jan-2023)
на замовлення 246 шт:
термін постачання 21-31 дні (днів)
