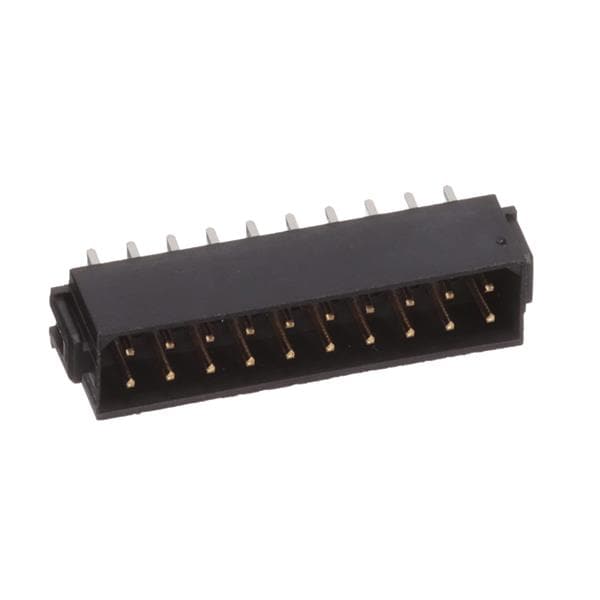

M80-6652022 Harwin

Description: CONN HEADER SMD R/A 20POS 2MM, Packaging: Tube, Features: Strain Relief Clips, Connector Type: Plug, Voltage Rating: 800V, Current Rating (Amps): 2.2A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin-Lead, Contact Shape: Circular, Insulation Height: 0.235" (5.97mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
