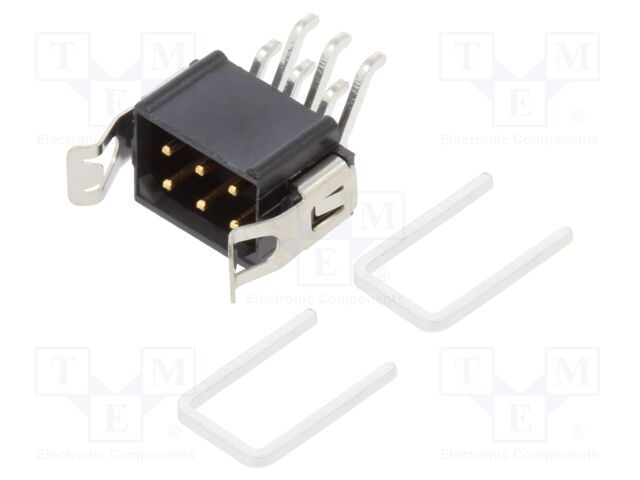

M80-6660642 HARWIN
Виробник: HARWINCategory: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 6; Datamate L-Tek; 3A
Kind of package: tube
Electrical mounting: SMT
Manufacturer series: Datamate L-Tek
Kind of connector: male
Mechanical mounting: on PCBs
Locking system: with latch
Contact plating: gold-plated
Spatial orientation: horizontal
Connector: socket
Connector variant: polarized
Body material: PPS
Terminals plating: tinned
Flammability rating: UL94V-0
Contacts pitch: 2mm
Current rating: 3A
Rated voltage: 800V
Number of pins: 6
Connector pinout layout: 2x3
Type of connector: wire-wire/PCB
на замовлення 146 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 358.21 грн |
| 10+ | 283.09 грн |
| 26+ | 267.36 грн |
| 52+ | 255.56 грн |
| 104+ | 245.34 грн |
| 130+ | 241.41 грн |
Відгуки про товар
Написати відгук
Технічний опис M80-6660642 HARWIN
Description: CONN HEADER SMD R/A 6POS 2MM, Features: Strain Relief Clips, Packaging: Tube, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 6, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Insulation Height: 0.235" (5.97mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції M80-6660642 за ціною від 263.46 грн до 529.27 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
+1 |
M80-6660642 | Виробник : HARWIN |
Category: Raster signal connectors 2,00mm Description: Connector: wire-wire/PCB; socket; male; PIN: 6; Datamate L-Tek; 3A Kind of package: tube Electrical mounting: SMT Manufacturer series: Datamate L-Tek Kind of connector: male Mechanical mounting: on PCBs Locking system: with latch Contact plating: gold-plated Spatial orientation: horizontal Connector: socket Connector variant: polarized Body material: PPS Terminals plating: tinned Flammability rating: UL94V-0 Contacts pitch: 2mm Current rating: 3A Rated voltage: 800V Number of pins: 6 Connector pinout layout: 2x3 Type of connector: wire-wire/PCB кількість в упаковці: 1 шт |
на замовлення 146 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||||
 |
M80-6660642 | Виробник : Harwin |
Headers & Wire Housings 3+3 POS HRZ MALE LOCK LATCH GOLD+TIN |
на замовлення 1524 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
 |
M80-6660642 | Виробник : Harwin Inc. |
Description: CONN HEADER SMD R/A 6POS 2MM Features: Strain Relief Clips Packaging: Tube Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A Mounting Type: Surface Mount, Right Angle Number of Positions: 6 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Insulation Height: 0.235" (5.97mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
на замовлення 408 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
M80-6660642 | Виробник : HARWIN |
Description: HARWIN - M80-6660642 - Stiftleiste, mit Verriegelungslasche, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 6 Kontakt(e) tariffCode: 85366990 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Messing usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 6Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: M80 productTraceability: No Kontaktanschluss: Oberflächenmontage, abgewinkelt Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (21-Jan-2025) |
на замовлення 163 шт: термін постачання 21-31 дні (днів) |
|
