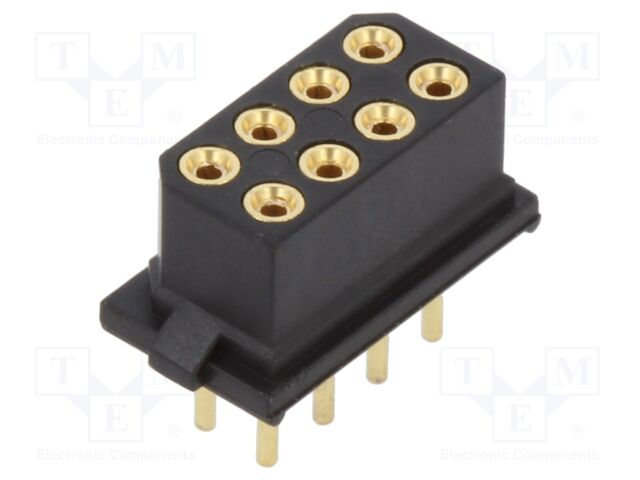

M80-8500845 HARWIN
Виробник: HARWINCategory: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; female; PIN: 8; Datamate L-Tek
Mechanical mounting: on PCBs
Manufacturer series: Datamate L-Tek
Flammability rating: UL94V-0
Kind of package: tube
Connector: socket
Electrical mounting: THT
Kind of connector: female
Terminals plating: gold-plated
Contact plating: gold-plated
Contacts pitch: 2mm
Lead length: 3mm
Current rating: 3A
Number of pins: 8
Rated voltage: 0.8kV
Connector pinout layout: 2x4
Type of connector: wire-wire/PCB
Spatial orientation: straight
Body material: polyamide
на замовлення 189 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 305.01 грн |
| 10+ | 252.67 грн |
| 21+ | 237.81 грн |
| 42+ | 224.60 грн |
| 105+ | 208.08 грн |
Відгуки про товар
Написати відгук
Технічний опис M80-8500845 HARWIN
Description: CONN RCPT 8POS 0.079 GOLD PCB, Packaging: Tube, Connector Type: Receptacle, Voltage Rating: 800V, Mounting Type: Through Hole, Number of Positions: 8, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Female Socket, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Mated Stacking Heights: 7.23mm, 7.85mm, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 12.0µin (0.30µm), Contact Finish - Post: Gold, Part Status: Active, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.202" (5.14mm), Row Spacing - Mating: 0.079" (2.00mm), Number of Rows: 2.
Інші пропозиції M80-8500845 за ціною від 191.38 грн до 436.97 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
+1 |
M80-8500845 | Виробник : HARWIN |
Category: Raster signal connectors 2,00mm Description: Connector: wire-wire/PCB; socket; female; PIN: 8; Datamate L-Tek Mechanical mounting: on PCBs Manufacturer series: Datamate L-Tek Flammability rating: UL94V-0 Kind of package: tube Connector: socket Electrical mounting: THT Kind of connector: female Terminals plating: gold-plated Contact plating: gold-plated Contacts pitch: 2mm Lead length: 3mm Current rating: 3A Number of pins: 8 Rated voltage: 0.8kV Connector pinout layout: 2x4 Type of connector: wire-wire/PCB Spatial orientation: straight Body material: polyamide кількість в упаковці: 1 шт |
на замовлення 189 шт: термін постачання 7-14 дні (днів) |
|
||||||||||||||||
 |
M80-8500845 | Виробник : Harwin Inc. |
Description: CONN RCPT 8POS 0.079 GOLD PCB Packaging: Tube Connector Type: Receptacle Voltage Rating: 800V Mounting Type: Through Hole Number of Positions: 8 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Female Socket Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Mated Stacking Heights: 7.23mm, 7.85mm Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 12.0µin (0.30µm) Contact Finish - Post: Gold Part Status: Active Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.202" (5.14mm) Row Spacing - Mating: 0.079" (2.00mm) Number of Rows: 2 |
на замовлення 1910 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
M80-8500845 | Виробник : HARWIN |
Description: HARWIN - M80-8500845 - Printbuchse, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 8 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: Y-EX Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbindermontage: Durchsteckmontage usEccn: EAR99 Anzahl der Kontakte: 8Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Produktpalette: Datamate L-Tek M80 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: Lead (25-Jun-2025) |
на замовлення 35 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
M80-8500845 | Виробник : Harwin |
Headers & Wire Housings 4+4 POS DIL FEMALE VERT GOLD |
на замовлення 210 шт: термін постачання 128-137 дні (днів) |
|
