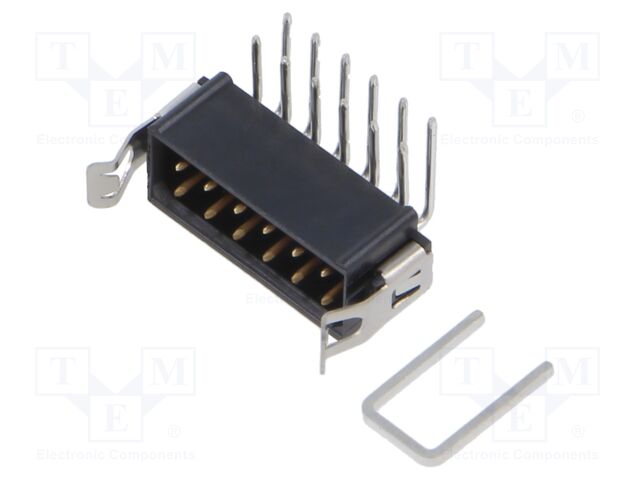

M80-8511242 HARWIN
Виробник: HARWIN
Category: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 12; Datamate L-Tek; 3A
Type of connector: wire-wire/PCB
Spatial orientation: angled 90°
Connector variant: polarized
Connector: socket
Kind of connector: male
Mechanical mounting: on PCBs
Contact plating: gold-plated
Kind of package: tube
Terminals plating: tinned
Flammability rating: UL94V-0
Locking system: with latch
Contacts pitch: 2mm
Lead length: 3mm
Number of pins: 12
Current rating: 3A
Rated voltage: 0.8kV
Electrical mounting: THT
Connector pinout layout: 2x6
Manufacturer series: Datamate L-Tek
Body material: PPS
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 399.20 грн |
| 10+ | 320.36 грн |
| 16+ | 311.98 грн |
| 80+ | 280.95 грн |
| 96+ | 277.59 грн |
| 112+ | 274.24 грн |
| 160+ | 267.53 грн |
| 256+ | 258.30 грн |
Відгуки про товар
Написати відгук
Технічний опис M80-8511242 HARWIN
Description: CONN HEADER R/A 12POS 2MM, Features: Strain Relief Clips, Packaging: Tube, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 12, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.235" (5.97mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції M80-8511242 за ціною від 255.03 грн до 525.91 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-8511242 | Harwin Inc. |
Description: CONN HEADER R/A 12POS 2MM Features: Strain Relief Clips Packaging: Tube Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A Mounting Type: Through Hole, Right Angle Number of Positions: 12 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.235" (5.97mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
на замовлення 617 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
M80-8511242 | HARWIN |
Description: HARWIN - M80-8511242 - Stiftleiste, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 12 Kontakt(e), Durchsteckmontage tariffCode: 85366910 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 12Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Datamate L-Tek M80 productTraceability: Yes-Date/Lot Code Kontaktanschluss: Durchsteckmontage usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm |
на замовлення 44 шт: термін постачання 21-31 дні (днів) |
|
||||||||
 |
M80-8511242 | Harwin |
Headers & Wire Housings Datamate L-Tek 6+6 POS DIL MALE R/A LATCHED GOLD |
на замовлення 159 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| M80-8511242 |
|
Виробник: Harwin Inc.
Description: CONN HEADER R/A 12POS 2MM
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Description: CONN HEADER R/A 12POS 2MM
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
на замовлення 617 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 438.94 грн |
| 16+ | 347.06 грн |
| 112+ | 302.49 грн |
| 512+ | 255.03 грн |
| M80-8511242 |
|
Виробник: HARWIN
Description: HARWIN - M80-8511242 - Stiftleiste, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 12 Kontakt(e), Durchsteckmontage
tariffCode: 85366910
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 12Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Datamate L-Tek M80
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Durchsteckmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
Description: HARWIN - M80-8511242 - Stiftleiste, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 12 Kontakt(e), Durchsteckmontage
tariffCode: 85366910
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 12Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: Datamate L-Tek M80
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Durchsteckmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2mm
на замовлення 44 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 525.91 грн |
| 10+ | 459.26 грн |
| M80-8511242 |
|
Виробник: Harwin
Headers & Wire Housings Datamate L-Tek 6+6 POS DIL MALE R/A LATCHED GOLD
Headers & Wire Housings Datamate L-Tek 6+6 POS DIL MALE R/A LATCHED GOLD
на замовлення 159 шт:
термін постачання 21-30 дні (днів)
