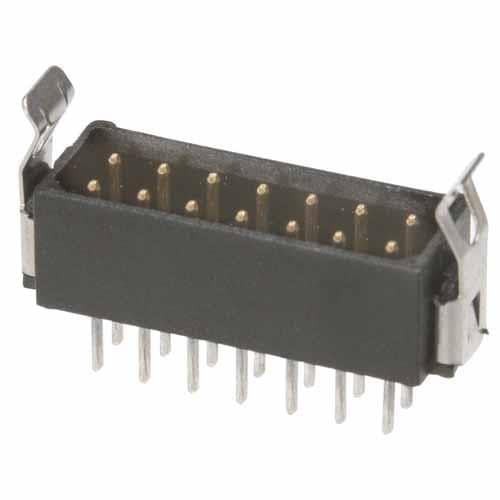

M80-8531242 HARWIN
Виробник: HARWINCategory: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 12; Datamate L-Tek; 3A
Type of connector: wire-wire/PCB
Connector: socket
Kind of connector: male
Number of pins: 12
Manufacturer series: Datamate L-Tek
Current rating: 3A
Rated voltage: 800V
Spatial orientation: straight
Electrical mounting: THT
Mechanical mounting: on PCBs
Contacts pitch: 2mm
Contact plating: gold-plated
Flammability rating: UL94V-0
Body material: PPS
Connector variant: polarized
Kind of package: tube
Terminals plating: tinned
Connector pinout layout: 2x6
Locking system: with latch
Lead length: 3mm
на замовлення 138 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 325.19 грн |
| 6+ | 169.85 грн |
| 16+ | 161.20 грн |
Відгуки про товар
Написати відгук
Технічний опис M80-8531242 HARWIN
Description: CONN HEADER VERT 12POS 2MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A per Contact, Mounting Type: Through Hole, Number of Positions: 12, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.219" (5.56mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції M80-8531242 за ціною від 193.44 грн до 448.28 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-8531242 | Виробник : Harwin Inc. |
Description: CONN HEADER VERT 12POS 2MM Packaging: Tube Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A per Contact Mounting Type: Through Hole Number of Positions: 12 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.219" (5.56mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
на замовлення 2515 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
|
|
M80-8531242 | Виробник : HARWIN |
Category: Raster signal connectors 2,00mm Description: Connector: wire-wire/PCB; socket; male; PIN: 12; Datamate L-Tek; 3A Type of connector: wire-wire/PCB Connector: socket Kind of connector: male Number of pins: 12 Manufacturer series: Datamate L-Tek Current rating: 3A Rated voltage: 800V Spatial orientation: straight Electrical mounting: THT Mechanical mounting: on PCBs Contacts pitch: 2mm Contact plating: gold-plated Flammability rating: UL94V-0 Body material: PPS Connector variant: polarized Kind of package: tube Terminals plating: tinned Connector pinout layout: 2x6 Locking system: with latch Lead length: 3mm кількість в упаковці: 1 шт |
на замовлення 138 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||
 |
M80-8531242 | Виробник : HARWIN |
Description: HARWIN - M80-8531242 - Stiftleiste, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 12 Kontakt(e), Durchsteckmontage tariffCode: 85366990 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 12Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Datamate L-Tek M80 productTraceability: Yes-Date/Lot Code Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (25-Jun-2025) |
на замовлення 193 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
M80-8531242 | Виробник : Harwin |
Headers & Wire Housings 6+6 POS DIL MALE VERT LATCHED TIN |
на замовлення 22 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
| M80-8531242 | Виробник : Harwin |
|
на замовлення 1 шт: термін постачання 5 дні (днів) |
