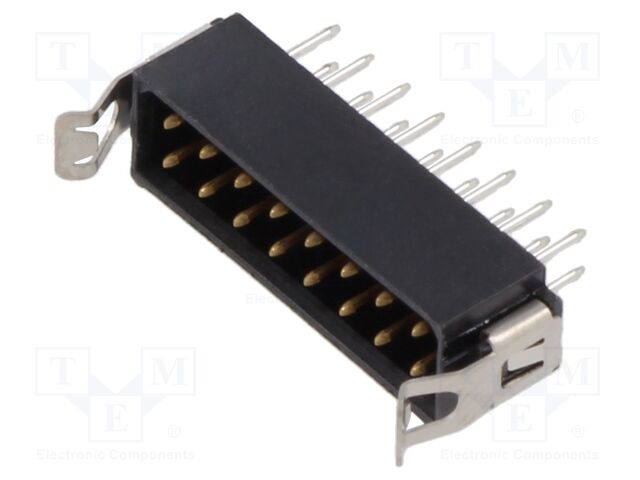

M80-8531642 HARWIN
Виробник: HARWINCategory: Raster signal connectors 2,00mm
Description: Connector: PCB-cable/PCB; socket; male; PIN: 16; Datamate L-Tek; 3A
Type of connector: PCB-cable/PCB
Connector: socket
Kind of connector: male
Number of pins: 16
Rated voltage: 800V
Current rating: 3A
Spatial orientation: straight
Electrical mounting: THT
Mechanical mounting: on PCBs
Connector pinout layout: 2x8
Contacts pitch: 2mm
Locking system: spring latch
Contact plating: selectively gold plated
Manufacturer series: Datamate L-Tek
на замовлення 190 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 367.13 грн |
| 5+ | 191.24 грн |
| 13+ | 180.66 грн |
Відгуки про товар
Написати відгук
Технічний опис M80-8531642 HARWIN
Description: CONN HEADER VERT 16POS 2MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A per Contact, Mounting Type: Through Hole, Number of Positions: 16, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.219" (5.56mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції M80-8531642 за ціною від 216.00 грн до 471.56 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M80-8531642 | Виробник : Harwin Inc. |
Description: CONN HEADER VERT 16POS 2MM Packaging: Tube Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A per Contact Mounting Type: Through Hole Number of Positions: 16 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.219" (5.56mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
на замовлення 1978 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
|
|
M80-8531642 | Виробник : HARWIN |
Category: Raster signal connectors 2,00mm Description: Connector: PCB-cable/PCB; socket; male; PIN: 16; Datamate L-Tek; 3A Type of connector: PCB-cable/PCB Connector: socket Kind of connector: male Number of pins: 16 Rated voltage: 800V Current rating: 3A Spatial orientation: straight Electrical mounting: THT Mechanical mounting: on PCBs Connector pinout layout: 2x8 Contacts pitch: 2mm Locking system: spring latch Contact plating: selectively gold plated Manufacturer series: Datamate L-Tek кількість в упаковці: 1 шт |
на замовлення 190 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||
 |
M80-8531642 | Виробник : HARWIN |
Description: HARWIN - M80-8531642 - Stiftleiste, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 16 Kontakt(e), Durchsteckmontage tariffCode: 85366990 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 16Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbindertyp: PCB Header Produktpalette: Datamate L-Tek M80 productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (27-Jun-2024) |
на замовлення 280 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
M80-8531642 | Виробник : Harwin |
Headers & Wire Housings 8+8 POS DIL MALE VERT LATCHED TIN |
на замовлення 738 шт: термін постачання 21-30 дні (днів) |
|
