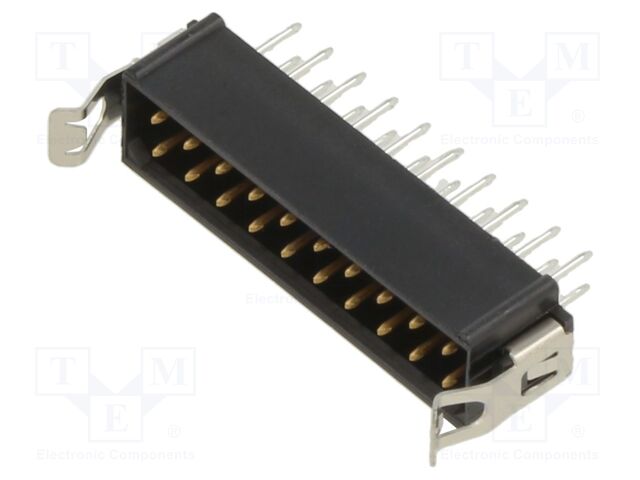

M80-8532042 HARWIN
Виробник: HARWINCategory: Raster signal connectors 2,00mm
Description: Connector: wire-wire/PCB; socket; male; PIN: 20; Datamate L-Tek; 3A
Mechanical mounting: on PCBs
Manufacturer series: Datamate L-Tek
Flammability rating: UL94V-0
Kind of package: tube
Connector: socket
Kind of connector: male
Contact plating: gold-plated
Type of connector: wire-wire/PCB
Electrical mounting: THT
Terminals plating: tinned
Locking system: with latch
Contacts pitch: 2mm
Lead length: 3mm
Current rating: 3A
Number of pins: 20
Rated voltage: 800V
Connector pinout layout: 2x10
Body material: PPS
Connector variant: polarized
Spatial orientation: straight
на замовлення 186 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 321.16 грн |
| 10+ | 259.15 грн |
| 50+ | 232.84 грн |
| 100+ | 221.67 грн |
| 150+ | 215.29 грн |
Відгуки про товар
Написати відгук
Технічний опис M80-8532042 HARWIN
Description: CONN HEADER VERT 20POS 2MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 800V, Current Rating (Amps): 2.2A per Contact, Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 29.5µin (0.75µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.219" (5.56mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції M80-8532042 за ціною від 230.61 грн до 475.73 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
M80-8532042 | Виробник : HARWIN |
Category: Raster signal connectors 2,00mm Description: Connector: wire-wire/PCB; socket; male; PIN: 20; Datamate L-Tek; 3A Mechanical mounting: on PCBs Manufacturer series: Datamate L-Tek Flammability rating: UL94V-0 Kind of package: tube Connector: socket Kind of connector: male Contact plating: gold-plated Type of connector: wire-wire/PCB Electrical mounting: THT Terminals plating: tinned Locking system: with latch Contacts pitch: 2mm Lead length: 3mm Current rating: 3A Number of pins: 20 Rated voltage: 800V Connector pinout layout: 2x10 Body material: PPS Connector variant: polarized Spatial orientation: straight кількість в упаковці: 1 шт |
на замовлення 186 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||||
 |
M80-8532042 | Виробник : Harwin Inc. |
Description: CONN HEADER VERT 20POS 2MM Packaging: Tube Connector Type: Header Voltage Rating: 800V Current Rating (Amps): 2.2A per Contact Mounting Type: Through Hole Number of Positions: 20 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 29.5µin (0.75µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.219" (5.56mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled Row Spacing - Mating: 0.079" (2.00mm) |
на замовлення 2011 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
M80-8532042 | Виробник : Harwin |
Headers & Wire Housings 10+10 POS DIL MALE VERT LATCHED TIN |
на замовлення 607 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
 |
M80-8532042 | Виробник : HARWIN |
Description: HARWIN - M80-8532042 - Stiftleiste, Wannenstecker, Board-to-Board, Wire-to-Board, 2 mm, 2 Reihe(n), 20 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 20Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: Datamate L-Tek M80 productTraceability: Yes-Date/Lot Code Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2mm SVHC: No SVHC (25-Jun-2025) |
на замовлення 70 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
| M80-8532042 | Виробник : Harwin |
Роз'єм 2-рядний; Вид = Вилка; К-сть конт. = 20; Крок, мм = 2; Серія = Datamate L-Tek; Тип монт. = на плату; В-нь між рядами = 2 мм; DIP |
на замовлення 28 шт: термін постачання 3 дні (днів) |
