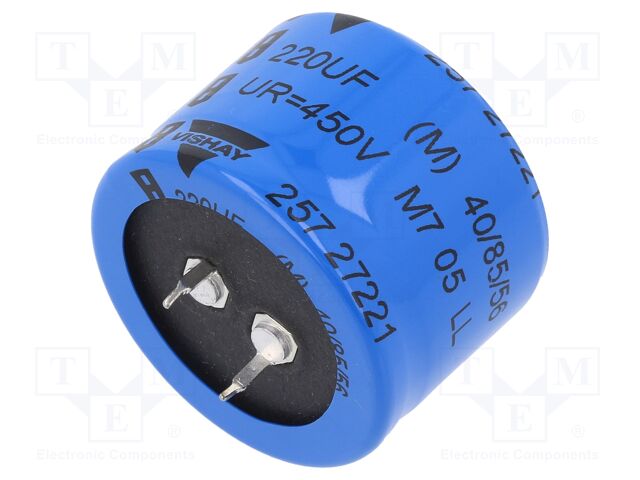

MAL225727221E3 VISHAY
Виробник: VISHAY
Category: SNAP-IN electrolytic capacitors
Description: Capacitor: electrolytic; SNAP-IN; 220uF; 450VDC; Ø35x25mm; ±20%
Type of capacitor: electrolytic
Mounting: SNAP-IN
Capacitance: 220µF
Operating voltage: 450V DC
Body dimensions: Ø35x25mm
Terminal pitch: 10mm
Tolerance: ±20%
Service life: 5000h
Operating temperature: -40...85°C
Height: 25mm
Diameter: 35mm
Відгуки про товар
Написати відгук
Технічний опис MAL225727221E3 VISHAY
Description: CAP ALUM 220UF 20% 450V SNAP TH, Packaging: Box, Tolerance: ±20%, Package / Case: Radial, Can - Snap-In, Size / Dimension: 1.378" Dia (35.00mm), Polarization: Polar, Mounting Type: Through Hole, Operating Temperature: -40°C ~ 85°C, Applications: General Purpose, Lead Spacing: 0.394" (10.00mm), ESR (Equivalent Series Resistance): 890mOhm @ 100Hz, Lifetime @ Temp.: 5000 Hrs @ 85°C, Height - Seated (Max): 1.063" (27.00mm), Capacitance: 220 µF, Voltage - Rated: 450 V, Impedance: 750 mOhms, Ripple Current @ Low Frequency: 1.52 A @ 100 Hz, Ripple Current @ High Frequency: 2.128 A @ 10 kHz.
Інші пропозиції MAL225727221E3 за ціною від 306.62 грн до 760.57 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MAL225727221E3 | Vishay Beyschlag/Draloric/BC Components |
Description: CAP ALUM 220UF 20% 450V SNAP TH Packaging: Box Tolerance: ±20% Package / Case: Radial, Can - Snap-In Size / Dimension: 1.378" Dia (35.00mm) Polarization: Polar Mounting Type: Through Hole Operating Temperature: -40°C ~ 85°C Applications: General Purpose Lead Spacing: 0.394" (10.00mm) ESR (Equivalent Series Resistance): 890mOhm @ 100Hz Lifetime @ Temp.: 5000 Hrs @ 85°C Height - Seated (Max): 1.063" (27.00mm) Capacitance: 220 µF Voltage - Rated: 450 V Impedance: 750 mOhms Ripple Current @ Low Frequency: 1.52 A @ 100 Hz Ripple Current @ High Frequency: 2.128 A @ 10 kHz |
на замовлення 352 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
MAL225727221E3 | Vishay / BC Components |
Aluminium Electrolytic Capacitors - Snap In 220uF 450V 35x25mm |
на замовлення 184 шт: термін постачання 21-30 дні (днів) |
|
| MAL225727221E3 |
|
Виробник: Vishay Beyschlag/Draloric/BC Components
Description: CAP ALUM 220UF 20% 450V SNAP TH
Packaging: Box
Tolerance: ±20%
Package / Case: Radial, Can - Snap-In
Size / Dimension: 1.378" Dia (35.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.394" (10.00mm)
ESR (Equivalent Series Resistance): 890mOhm @ 100Hz
Lifetime @ Temp.: 5000 Hrs @ 85°C
Height - Seated (Max): 1.063" (27.00mm)
Capacitance: 220 µF
Voltage - Rated: 450 V
Impedance: 750 mOhms
Ripple Current @ Low Frequency: 1.52 A @ 100 Hz
Ripple Current @ High Frequency: 2.128 A @ 10 kHz
Description: CAP ALUM 220UF 20% 450V SNAP TH
Packaging: Box
Tolerance: ±20%
Package / Case: Radial, Can - Snap-In
Size / Dimension: 1.378" Dia (35.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.394" (10.00mm)
ESR (Equivalent Series Resistance): 890mOhm @ 100Hz
Lifetime @ Temp.: 5000 Hrs @ 85°C
Height - Seated (Max): 1.063" (27.00mm)
Capacitance: 220 µF
Voltage - Rated: 450 V
Impedance: 750 mOhms
Ripple Current @ Low Frequency: 1.52 A @ 100 Hz
Ripple Current @ High Frequency: 2.128 A @ 10 kHz
на замовлення 352 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 1+ | 734.20 грн |
| 10+ | 507.48 грн |
| 50+ | 425.33 грн |
| 100+ | 374.89 грн |
| MAL225727221E3 |
|
Виробник: Vishay / BC Components
Aluminium Electrolytic Capacitors - Snap In 220uF 450V 35x25mm
Aluminium Electrolytic Capacitors - Snap In 220uF 450V 35x25mm
на замовлення 184 шт:
термін постачання 21-30 дні (днів)| Кількість | Ціна |
|---|---|
| 1+ | 760.57 грн |
| 10+ | 452.09 грн |
| 50+ | 391.71 грн |
| 100+ | 368.51 грн |
| 500+ | 336.86 грн |
| 1000+ | 306.62 грн |
