Продукція > SUNON > MEC0251V2-000U-A99
MEC0251V2-000U-A99

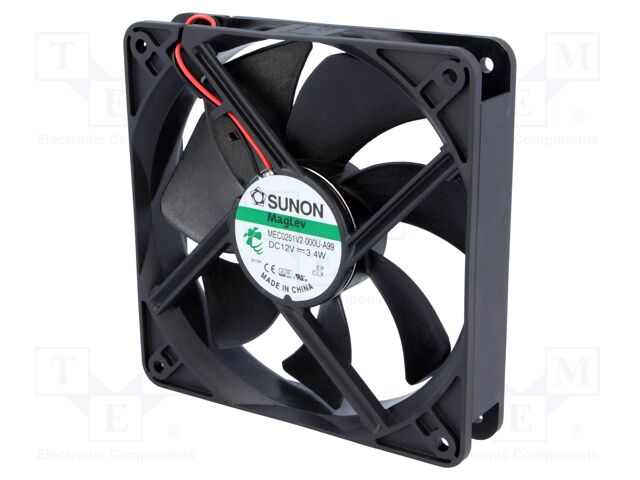

MEC0251V2-000U-A99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b pVersion=0046&contRep=ZT&docId=E1C051EE161B8FF1A6F5005056AB5A8F&compId=MEC0251V2-A99(D12017070G-00).pdf?ci_sign=766f70b6aa010fe1862208d330c73619c214e33c Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 120x120x25mm; 158.1m3/h; 40.5dBA; Vapo; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Fan dimensions: 120x120x25mm
Power consumption: 3.4W
Current rating: 0.279A
Fan efficiency: 158.1m3/h
Noise level: 40.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2700 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 5.58mm H2O
Operating voltage: 6...13.8V DC
Wire size: 24AWG
Lead length: 0.33m
Additional functions: autorestart
Insulation class: A
Fan motor: brushless DC
на замовлення 1 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
1+569.04 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис MEC0251V2-000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 120x120x25mm; 158.1m3/h; 40.5dBA; Vapo; 24AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Fan dimensions: 120x120x25mm, Power consumption: 3.4W, Current rating: 0.279A, Fan efficiency: 158.1m3/h, Noise level: 40.5dBA, Kind of Bearing: Vapo, Rotational rate/speed: 2700 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 5.58mm H2O, Operating voltage: 6...13.8V DC, Wire size: 24AWG, Lead length: 0.33m, Additional functions: autorestart, Insulation class: A, Fan motor: brushless DC, кількість в упаковці: 1 шт.

Інші пропозиції MEC0251V2-000U-A99 за ціною від 391.44 грн до 1376.06 грн

Фото Назва Виробник Інформація Доступність
Ціна
MEC0251V2-000U-A99 MEC0251V2-000U-A99 Виробник : SUNON pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b pVersion=0046&contRep=ZT&docId=E1C051EE161B8FF1A6F5005056AB5A8F&compId=MEC0251V2-A99(D12017070G-00).pdf?ci_sign=766f70b6aa010fe1862208d330c73619c214e33c Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 120x120x25mm; 158.1m3/h; 40.5dBA; Vapo; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Fan dimensions: 120x120x25mm
Power consumption: 3.4W
Current rating: 0.279A
Fan efficiency: 158.1m3/h
Noise level: 40.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2700 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 5.58mm H2O
Operating voltage: 6...13.8V DC
Wire size: 24AWG
Lead length: 0.33m
Additional functions: autorestart
Insulation class: A
Fan motor: brushless DC
кількість в упаковці: 1 шт
на замовлення 1 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
1+682.85 грн
10+567.91 грн
20+490.01 грн
40+432.19 грн
240+391.44 грн
В кошику  од. на суму  грн.
MEC0251V2-000U-A99 MEC0251V2-000U-A99 Виробник : Sunon Fans MEC0251V2-0000-A99.pdf Description: FAN AXIAL 120X25MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Vapo-Bearing™
RPM: 2700 RPM
Air Flow: 93.0 CFM (2.60m³/min)
Width: 25.00mm
Weight: 0.357 lb (161.93 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 40.5dB(A)
Static Pressure: 0.220 in H2O (54.8 Pa)
Part Status: Active
Power (Watts): 3.4 W
на замовлення 363 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+988.35 грн
10+783.19 грн
40+687.01 грн
80+602.45 грн
120+601.99 грн
В кошику  од. на суму  грн.
MEC0251V2-000U-A99 MEC0251V2-000U-A99 Виробник : Sunon Sunon_04142020_MEC0251V2-0000-A99-1832744.pdf DC Fans Axial Fan, 120x120x25mm, 12VDC, 93CFM, 0.22"H2O, Vapo, Wire, Auto Restart
на замовлення 762 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+1185.37 грн
10+1055.08 грн
25+890.92 грн
50+871.97 грн
100+871.21 грн
200+870.45 грн
В кошику  од. на суму  грн.
MEC0251V2-000U-A99 Виробник : Sunon MEC0251V2-0000-A99.pdf MEC0251V2-000U-A99
на замовлення 20 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
9+1376.06 грн
10+1307.90 грн
Мінімальне замовлення: 9
В кошику  од. на суму  грн.
