Продукція > SUNON > MEC0252V1-000U-G99

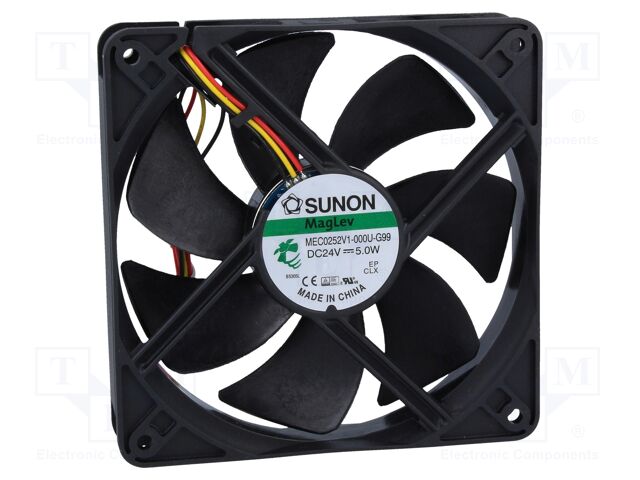

MEC0252V1-000U-G99

MEC0252V1-000U-G99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b pVersion=0046&contRep=ZT&docId=E1D7CE2FD080F8F1A704005056AB0C4F&compId=MEC0252V1-G99.pdf?ci_sign=841abb76977ef85dc448598df318fef7fcb4d048 Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 120x120x25mm; 183.83m3/h; 44.5dBA; Vapo
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 120x120x25mm
Power consumption: 5W
Current rating: 0.207A
Fan efficiency: 183.83m3/h
Noise level: 44.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 7.11mm H2O
Operating voltage: 10...27.6V DC
Wire size: 24AWG
Lead length: 0.33m
Additional functions: autorestart
Signal output: F type
Insulation class: A
Fan motor: brushless DC
на замовлення 1676 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
1+630.60 грн
10+459.86 грн
40+385.69 грн
200+363.83 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис MEC0252V1-000U-G99 SUNON

Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 120x120x25mm; 183.83m3/h; 44.5dBA; Vapo, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Fan dimensions: 120x120x25mm, Power consumption: 5W, Current rating: 0.207A, Fan efficiency: 183.83m3/h, Noise level: 44.5dBA, Kind of Bearing: Vapo, Rotational rate/speed: 3100 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x3, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 7.11mm H2O, Operating voltage: 10...27.6V DC, Wire size: 24AWG, Lead length: 0.33m, Additional functions: autorestart, Signal output: F type, Insulation class: A, Fan motor: brushless DC, кількість в упаковці: 1 шт.

Інші пропозиції MEC0252V1-000U-G99 за ціною від 436.59 грн до 888.92 грн

Фото Назва Виробник Інформація Доступність
Ціна
MEC0252V1-000U-G99 MEC0252V1-000U-G99 Виробник : SUNON pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b pVersion=0046&contRep=ZT&docId=E1D7CE2FD080F8F1A704005056AB0C4F&compId=MEC0252V1-G99.pdf?ci_sign=841abb76977ef85dc448598df318fef7fcb4d048 Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 120x120x25mm; 183.83m3/h; 44.5dBA; Vapo
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 120x120x25mm
Power consumption: 5W
Current rating: 0.207A
Fan efficiency: 183.83m3/h
Noise level: 44.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 7.11mm H2O
Operating voltage: 10...27.6V DC
Wire size: 24AWG
Lead length: 0.33m
Additional functions: autorestart
Signal output: F type
Insulation class: A
Fan motor: brushless DC
кількість в упаковці: 1 шт
на замовлення 1676 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
1+756.72 грн
10+573.06 грн
40+462.83 грн
200+436.59 грн
В кошику  од. на суму  грн.
MEC0252V1-000U-G99 Виробник : Sunon SUNON%20DC%20Brushless%20Fan%20&%20Blower(255-E).pdf MEC0252V1-000U-G99
на замовлення 2108 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
14+888.92 грн
18+697.37 грн
40+584.97 грн
200+533.11 грн
Мінімальне замовлення: 14
В кошику  од. на суму  грн.
MEC0252V1-000U-G99 Виробник : Sunon Fans SUNON%20DC%20Brushless%20Fan%20&%20Blower(255-E).pdf Description: 24VDC FAN 120X25MM ALARM
Features: Auto Restart, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Vapo-Bearing™
RPM: 3100 RPM
Air Flow: 108.2 CFM (3.03m³/min)
Width: 25.00mm
Termination: 3 Wire Leads
Approval Agency: CCC, CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 44.5dB(A)
Static Pressure: 0.280 in H2O (69.7 Pa)
Power (Watts): 5 W
товару немає в наявності
В кошику  од. на суму  грн.
MEC0252V1-000U-G99 Виробник : Sunon SUNON%20DC%20Brushless%20Fan%20&%20Blower(255-E).pdf DC Fans DC Axial Fan, 120x120x25mm, 24VDC, Vapo, 3x Wire, Auto Restart/Tach, MagLev
товару немає в наявності
В кошику  од. на суму  грн.
