Продукція > SUNON > MEC0382V3-000U-A99

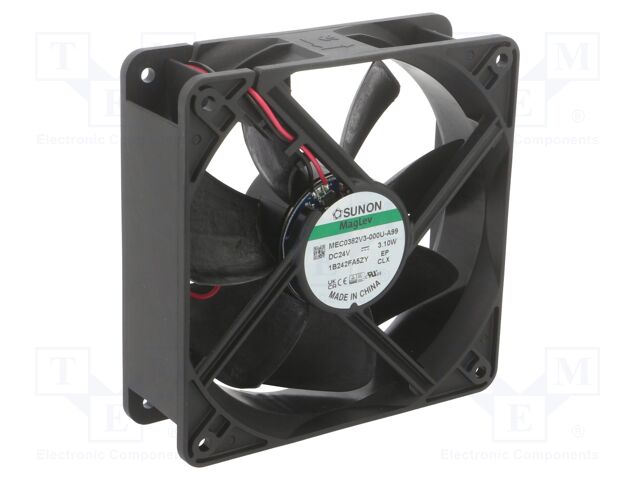

MEC0382V3-000U-A99

MEC0382V3-000U-A99 SUNON


(D12015710G-03)-2.pdf Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 120x120x38mm; 158.01m3/h; 37dBA; Vapo
Supply voltage: 24V DC
Operating temperature: -10...70°C
Additional functions: autorestart
Rotational rate/speed: 2100rpm
Current and power consumption tolerance: ±15%
Power consumption: 3.1W
Lead length: 0.33m
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 0.13A
Leads: leads x2
Operating voltage: 10...27.6V DC
Type of fan: DC
Fan dimensions: 120x120x38mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 158.01m3/h
Noise level: 37dBA
на замовлення 616 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
1+790.19 грн
10+632.65 грн
20+561.57 грн
40+489.69 грн
240+454.15 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис MEC0382V3-000U-A99 SUNON

Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 120x120x38mm; 158.01m3/h; 37dBA; Vapo, Supply voltage: 24V DC, Operating temperature: -10...70°C, Additional functions: autorestart, Rotational rate/speed: 2100rpm, Current and power consumption tolerance: ±15%, Power consumption: 3.1W, Lead length: 0.33m, Kind of fan: axial, Min. insulation resistance: 10MΩ, Enclosure material: thermoplastic, Current rating: 0.13A, Leads: leads x2, Operating voltage: 10...27.6V DC, Type of fan: DC, Fan dimensions: 120x120x38mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 158.01m3/h, Noise level: 37dBA, кількість в упаковці: 1 шт.

Інші пропозиції MEC0382V3-000U-A99 за ціною від 544.98 грн до 1958.56 грн

Фото Назва Виробник Інформація Доступність
Ціна
MEC0382V3-000U-A99 MEC0382V3-000U-A99 Виробник : SUNON (D12015710G-03)-2.pdf Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 120x120x38mm; 158.01m3/h; 37dBA; Vapo
Supply voltage: 24V DC
Operating temperature: -10...70°C
Additional functions: autorestart
Rotational rate/speed: 2100rpm
Current and power consumption tolerance: ±15%
Power consumption: 3.1W
Lead length: 0.33m
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 0.13A
Leads: leads x2
Operating voltage: 10...27.6V DC
Type of fan: DC
Fan dimensions: 120x120x38mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 158.01m3/h
Noise level: 37dBA
кількість в упаковці: 1 шт
на замовлення 616 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
1+948.23 грн
10+788.38 грн
20+673.88 грн
40+587.63 грн
240+544.98 грн
В кошику  од. на суму  грн.
MEC0382V3-000U-A99 MEC0382V3-000U-A99 Виробник : Sunon Fans (D12015710G-03)-2.pdf Description: FAN AXIAL 120X38MM 24VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 24VDC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Vapo-Bearing™
RPM: 2100 RPM
Air Flow: 93.0 CFM (2.60m³/min)
Width: 38.00mm
Weight: 0.481 lb (218.18 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 37.0dB(A)
Static Pressure: 0.180 in H2O (44.8 Pa)
Part Status: Active
Power (Watts): 3.1 W
на замовлення 162 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1393.53 грн
10+1100.86 грн
40+964.52 грн
80+863.48 грн
В кошику  од. на суму  грн.
MEC0382V3-000U-A99 MEC0382V3-000U-A99 Виробник : Sunon (D12015710G-03)-2.pdf DC Fans Axial Fan, 120x120x38mm, 24VDC, 93CFM, 0.18"H2O, Vapo, Wire, Auto Restart
на замовлення 255 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+1433.94 грн
10+1228.60 грн
25+1034.23 грн
40+940.21 грн
В кошику  од. на суму  грн.
MEC0382V3-000U-A99 Виробник : Sunon 89ee12038_u.pdf DC FAN,120X120X38 MM, 93.0 TO 138.0 CFM
на замовлення 337 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
7+1958.56 грн
10+1518.08 грн
30+1435.18 грн
60+1331.88 грн
120+1142.00 грн
Мінімальне замовлення: 7
В кошику  од. на суму  грн.
