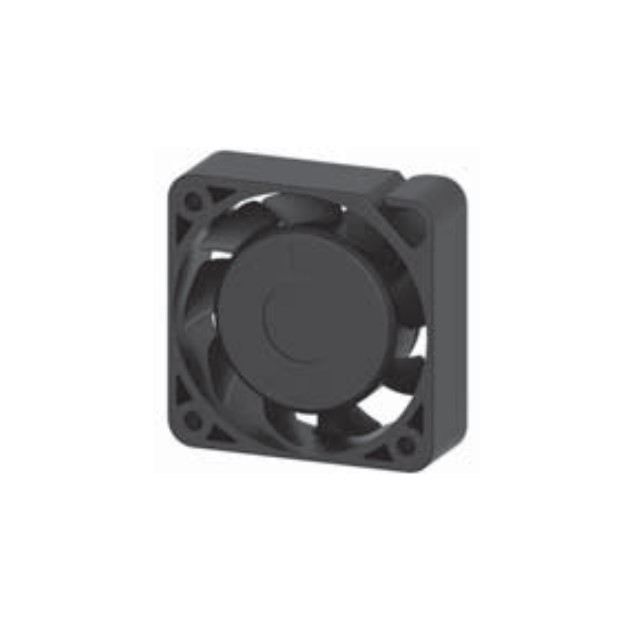

MF20060V3-1000U-G99 Sunon Fans
Виробник: Sunon Fans
Description: 5VDC FAN 20X6MM ALARM
Packaging: Box
Features: Auto Restart, Speed Sensor (Tach)
Voltage - Rated: 5VDC
Size / Dimension: Square - 20mm L x 20mm H
Bearing Type: Vapo-Bearing™
RPM: 6200 RPM
Air Flow: 0.280 CFM (0.008m³/min)
Width: 6.00mm
Termination: 3 Wire Leads
Approval Agency: CCC, CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 24.2dB(A)
Static Pressure: 0.030 in H2O (7.5 Pa)
Power (Watts): 0.1 W
Відгуки про товар
Написати відгук
Технічний опис MF20060V3-1000U-G99 Sunon Fans
Category: DC5V Fans, Description: Fan: DC; axial; 5VDC; 20x20x6mm; 0.51m3/h; 4.2dBA; Vapo; Out: F type, Leads: leads x3, Enclosure material: thermoplastic, Impeller material: thermoplastic, Flammability rating: UL94V-0, Kind of Bearing: Vapo, Operating temperature: -10...70°C, Current rating: 19mA, Fan dimensions: 20x20x6mm, Power consumption: 140mW, Lead length: 0.15m, Fan efficiency: 0.51m3/h, Static pressure: 0.76mm H2O, Operating voltage: 3.5...5.5V DC, Noise level: 4.2dBA, Supply voltage: 5V DC, Wire size: 30AWG, Rotational rate/speed: 6200 (±20%)rpm, Min. insulation resistance: 10MΩ, Storage time: 70000h, Insulation class: A, Additional functions: autorestart; reverse polarity protection, Kind of fan: axial, Fan motor: brushless DC, Type of fan: DC, Signal output: F type.
Інші пропозиції MF20060V3-1000U-G99
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
| MF20060V3-1000U-G99 | Sunon |
DC Fans DC Axial Fan, 20x20x6mm, 5VDC, Vapo, 3x Lead Wires, Auto Restart, Tach |
товару немає в наявності |
В кошику од. на суму грн. | |
| MF20060V3-1000U-G99 | SUNON |
Category: DC5V Fans Description: Fan: DC; axial; 5VDC; 20x20x6mm; 0.51m3/h; 4.2dBA; Vapo; Out: F type Leads: leads x3 Enclosure material: thermoplastic Impeller material: thermoplastic Flammability rating: UL94V-0 Kind of Bearing: Vapo Operating temperature: -10...70°C Current rating: 19mA Fan dimensions: 20x20x6mm Power consumption: 140mW Lead length: 0.15m Fan efficiency: 0.51m3/h Static pressure: 0.76mm H2O Operating voltage: 3.5...5.5V DC Noise level: 4.2dBA Supply voltage: 5V DC Wire size: 30AWG Rotational rate/speed: 6200 (±20%)rpm Min. insulation resistance: 10MΩ Storage time: 70000h Insulation class: A Additional functions: autorestart; reverse polarity protection Kind of fan: axial Fan motor: brushless DC Type of fan: DC Signal output: F type |
товару немає в наявності |
Мінімальне замовлення: 200 шт В кошику од. на суму грн. |
| MF20060V3-1000U-G99 |
|
Виробник: Sunon
DC Fans DC Axial Fan, 20x20x6mm, 5VDC, Vapo, 3x Lead Wires, Auto Restart, Tach
DC Fans DC Axial Fan, 20x20x6mm, 5VDC, Vapo, 3x Lead Wires, Auto Restart, Tach
товару немає в наявності
В кошику
од. на суму грн.
| MF20060V3-1000U-G99 |
|
Виробник: SUNON
Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 20x20x6mm; 0.51m3/h; 4.2dBA; Vapo; Out: F type
Leads: leads x3
Enclosure material: thermoplastic
Impeller material: thermoplastic
Flammability rating: UL94V-0
Kind of Bearing: Vapo
Operating temperature: -10...70°C
Current rating: 19mA
Fan dimensions: 20x20x6mm
Power consumption: 140mW
Lead length: 0.15m
Fan efficiency: 0.51m3/h
Static pressure: 0.76mm H2O
Operating voltage: 3.5...5.5V DC
Noise level: 4.2dBA
Supply voltage: 5V DC
Wire size: 30AWG
Rotational rate/speed: 6200 (±20%)rpm
Min. insulation resistance: 10MΩ
Storage time: 70000h
Insulation class: A
Additional functions: autorestart; reverse polarity protection
Kind of fan: axial
Fan motor: brushless DC
Type of fan: DC
Signal output: F type
Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 20x20x6mm; 0.51m3/h; 4.2dBA; Vapo; Out: F type
Leads: leads x3
Enclosure material: thermoplastic
Impeller material: thermoplastic
Flammability rating: UL94V-0
Kind of Bearing: Vapo
Operating temperature: -10...70°C
Current rating: 19mA
Fan dimensions: 20x20x6mm
Power consumption: 140mW
Lead length: 0.15m
Fan efficiency: 0.51m3/h
Static pressure: 0.76mm H2O
Operating voltage: 3.5...5.5V DC
Noise level: 4.2dBA
Supply voltage: 5V DC
Wire size: 30AWG
Rotational rate/speed: 6200 (±20%)rpm
Min. insulation resistance: 10MΩ
Storage time: 70000h
Insulation class: A
Additional functions: autorestart; reverse polarity protection
Kind of fan: axial
Fan motor: brushless DC
Type of fan: DC
Signal output: F type
