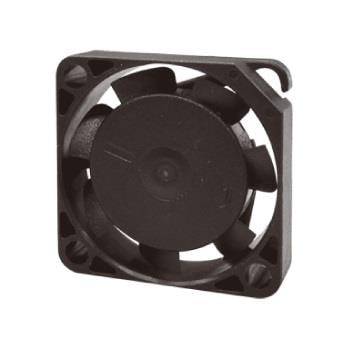

MF25060V2-1000U-A99 SUNON

Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 25x25x6mm; 3.72m3/h; 18dBA; Vapo; 10000rpm
Kind of fan: axial
Fan motor: brushless DC
Type of fan: DC
Leads: leads x2
Impeller material: thermoplastic
Flammability rating: UL94V-0
Kind of Bearing: Vapo
Operating temperature: -10...70°C
Fan dimensions: 25x25x6mm
Current rating: 75mA
Lead length: 0.15m
Power consumption: 0.38W
Operating voltage: 2.5...6V DC
Fan efficiency: 3.72m3/h
Static pressure: 4.06mm H2O
Supply voltage: 5V DC
Noise level: 18dBA
Wire size: 28AWG
Rotational rate/speed: 10000rpm
Min. insulation resistance: 10MΩ
Insulation class: A
Enclosure material: thermoplastic
Additional functions: autorestart
на замовлення 4947 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
2+ | 403.89 грн |
50+ | 291.35 грн |
100+ | 253.45 грн |
200+ | 241.60 грн |
Відгуки про товар
Написати відгук
Технічний опис MF25060V2-1000U-A99 SUNON
Category: DC5V Fans, Description: Fan: DC; axial; 5VDC; 25x25x6mm; 3.72m3/h; 18dBA; Vapo; 10000rpm, Kind of fan: axial, Fan motor: brushless DC, Type of fan: DC, Leads: leads x2, Impeller material: thermoplastic, Flammability rating: UL94V-0, Kind of Bearing: Vapo, Operating temperature: -10...70°C, Fan dimensions: 25x25x6mm, Current rating: 75mA, Lead length: 0.15m, Power consumption: 0.38W, Operating voltage: 2.5...6V DC, Fan efficiency: 3.72m3/h, Static pressure: 4.06mm H2O, Supply voltage: 5V DC, Noise level: 18dBA, Wire size: 28AWG, Rotational rate/speed: 10000rpm, Min. insulation resistance: 10MΩ, Insulation class: A, Enclosure material: thermoplastic, Additional functions: autorestart, кількість в упаковці: 1 шт.
Інші пропозиції MF25060V2-1000U-A99 за ціною від 289.93 грн до 865.84 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
MF25060V2-1000U-A99 | Виробник : SUNON |
![]() Description: Fan: DC; axial; 5VDC; 25x25x6mm; 3.72m3/h; 18dBA; Vapo; 10000rpm Kind of fan: axial Fan motor: brushless DC Type of fan: DC Leads: leads x2 Impeller material: thermoplastic Flammability rating: UL94V-0 Kind of Bearing: Vapo Operating temperature: -10...70°C Fan dimensions: 25x25x6mm Current rating: 75mA Lead length: 0.15m Power consumption: 0.38W Operating voltage: 2.5...6V DC Fan efficiency: 3.72m3/h Static pressure: 4.06mm H2O Supply voltage: 5V DC Noise level: 18dBA Wire size: 28AWG Rotational rate/speed: 10000rpm Min. insulation resistance: 10MΩ Insulation class: A Enclosure material: thermoplastic Additional functions: autorestart кількість в упаковці: 1 шт |
на замовлення 4947 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||
![]() |
MF25060V2-1000U-A99 | Виробник : Sunon |
![]() |
на замовлення 698 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
![]() |
MF25060V2-1000U-A99 | Виробник : Sunon Fans |
![]() Features: Auto Restart Packaging: Bulk Voltage - Rated: 5VDC Size / Dimension: Square - 25mm L x 25mm H Bearing Type: Vapo-Bearing™ RPM: 10000 RPM Air Flow: 2.2 CFM (0.061m³/min) Width: 6.50mm Weight: 0.012 lb (5.44 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 18.0dB(A) Static Pressure: 0.160 in H2O (40.0 Pa) Part Status: Active Power (Watts): 380 mW |
на замовлення 3495 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
MF25060V2-1000U-A99 | Виробник : Sunon |
![]() |
на замовлення 5859 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||
MF25060V2-1000U-A99 | Виробник : Sunon |
![]() |
на замовлення 945 шт: термін постачання 21-31 дні (днів) |
|
