MF30101V1-1000U-A99

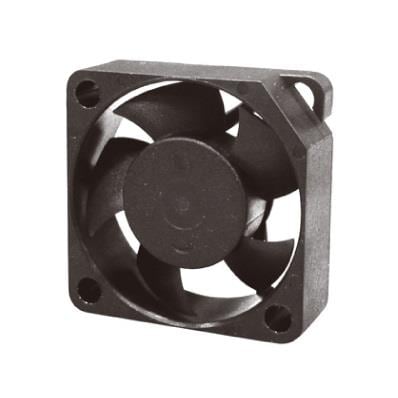

MF30101V1-1000U-A99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285EA515FC0D820&compId=MF30101V1-A99-A.pdf?ci_sign=4d2f9b29c4f9426c9c9a31535f92a04a5cf9386e Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 9.3m3/h; 23dBA; Vapo; 11500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 30x30x10mm
Power consumption: 0.66W
Current rating: 55mA
Fan efficiency: 9.3m3/h
Noise level: 23dBA
Kind of Bearing: Vapo
Rotational rate/speed: 11500rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Static pressure: 6.35mm H2O
Insulation class: A
Wire size: 28AWG
Lead length: 0.145m
Additional functions: autorestart
Flammability rating: UL94V-0
Fan motor: brushless DC
на замовлення 2399 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
1+448.15 грн
10+371.50 грн
40+341.20 грн
200+280.62 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис MF30101V1-1000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 30x30x10mm; 9.3m3/h; 23dBA; Vapo; 11500rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 30x30x10mm, Power consumption: 0.66W, Current rating: 55mA, Fan efficiency: 9.3m3/h, Noise level: 23dBA, Kind of Bearing: Vapo, Rotational rate/speed: 11500rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Operating temperature: -10...70°C, Static pressure: 6.35mm H2O, Insulation class: A, Wire size: 28AWG, Lead length: 0.145m, Additional functions: autorestart, Flammability rating: UL94V-0, Fan motor: brushless DC, кількість в упаковці: 1 шт.

Інші пропозиції MF30101V1-1000U-A99 за ціною від 336.74 грн до 888.41 грн

Фото Назва Виробник Інформація Доступність
Ціна
MF30101V1-1000U-A99 MF30101V1-1000U-A99 Виробник : SUNON pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285EA515FC0D820&compId=MF30101V1-A99-A.pdf?ci_sign=4d2f9b29c4f9426c9c9a31535f92a04a5cf9386e Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 9.3m3/h; 23dBA; Vapo; 11500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 30x30x10mm
Power consumption: 0.66W
Current rating: 55mA
Fan efficiency: 9.3m3/h
Noise level: 23dBA
Kind of Bearing: Vapo
Rotational rate/speed: 11500rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Static pressure: 6.35mm H2O
Insulation class: A
Wire size: 28AWG
Lead length: 0.145m
Additional functions: autorestart
Flammability rating: UL94V-0
Fan motor: brushless DC
кількість в упаковці: 1 шт
на замовлення 2399 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
1+537.78 грн
10+462.94 грн
40+409.44 грн
200+336.74 грн
В кошику  од. на суму  грн.
MF30101V1-1000U-A99 MF30101V1-1000U-A99 Виробник : Sunon Fans (D03033580G-01)-1.pdf Description: FAN AXIAL 30X10MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 30mm L x 30mm H
Bearing Type: Vapo-Bearing™
RPM: 11500 RPM
Air Flow: 5.5 CFM (0.154m³/min)
Width: 10.00mm
Weight: 0.018 lb (8.16 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 23.0dB(A)
Static Pressure: 0.250 in H2O (62.3 Pa)
Part Status: Active
Power (Watts): 660 mW
на замовлення 3006 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+825.38 грн
10+654.98 грн
25+601.41 грн
50+527.97 грн
100+497.97 грн
В кошику  од. на суму  грн.
MF30101V1-1000U-A99 MF30101V1-1000U-A99 Виробник : Sunon (D03033580G-01)-1.pdf DC Fans Axial Fan, 30x30x10mm, 12VDC, 5.5CFM, 0.25"H2O, Vapo, Wire, Auto Restart
на замовлення 90 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+888.41 грн
10+743.70 грн
25+593.89 грн
50+554.86 грн
100+523.48 грн
В кошику  од. на суму  грн.
MF30101V1-1000U-A99 Виробник : Sunon (D03033580G-01)-1.pdf DC Fan Axial Vapo Bearing 12V 6V to 13.8V 5.5CFM 23dB 30 X 30 X 10mm High Speed
на замовлення 2399 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
19+667.10 грн
21+593.86 грн
40+545.81 грн
200+455.70 грн
Мінімальне замовлення: 19
В кошику  од. на суму  грн.
