Продукція > SUNON > MF30101V1-1000U-G99
MF30101V1-1000U-G99

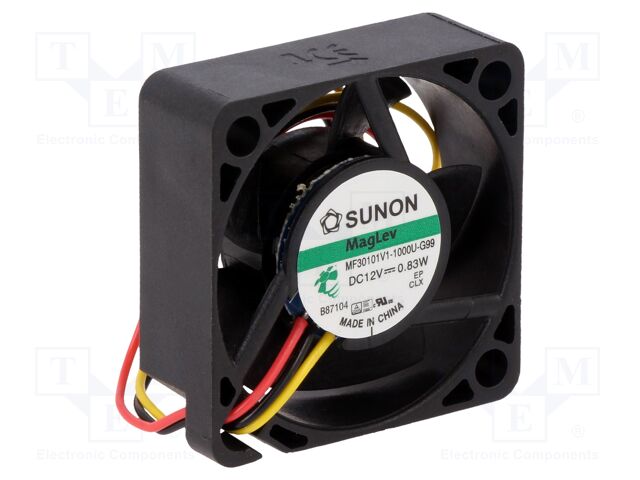

MF30101V1-1000U-G99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285EA515FC29820&compId=MF30101V1-G99-A.pdf?ci_sign=2242b6dade54fcec2cc5ce191109e536e1ea4d06 Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 9.3m3/h; 23dBA; Vapo; Out: F type
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 30x30x10mm
Power consumption: 0.66W
Current rating: 55mA
Fan efficiency: 9.3m3/h
Noise level: 23dBA
Kind of Bearing: Vapo
Rotational rate/speed: 11500rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Static pressure: 6.35mm H2O
Flammability rating: UL94V-0
Signal output: F type
Wire size: 28AWG
Fan motor: brushless DC
Lead length: 0.145m
Additional functions: autorestart
Insulation class: A
на замовлення 147 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
5+513.83 грн
40+390.67 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис MF30101V1-1000U-G99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 30x30x10mm; 9.3m3/h; 23dBA; Vapo; Out: F type, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 30x30x10mm, Power consumption: 0.66W, Current rating: 55mA, Fan efficiency: 9.3m3/h, Noise level: 23dBA, Kind of Bearing: Vapo, Rotational rate/speed: 11500rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x3, Operating temperature: -10...70°C, Static pressure: 6.35mm H2O, Flammability rating: UL94V-0, Signal output: F type, Wire size: 28AWG, Fan motor: brushless DC, Lead length: 0.145m, Additional functions: autorestart, Insulation class: A, кількість в упаковці: 1 шт.

Інші пропозиції MF30101V1-1000U-G99 за ціною від 385.79 грн до 1287.62 грн

Фото Назва Виробник Інформація Доступність
Ціна
MF30101V1-1000U-G99 MF30101V1-1000U-G99 Виробник : SUNON pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285EA515FC29820&compId=MF30101V1-G99-A.pdf?ci_sign=2242b6dade54fcec2cc5ce191109e536e1ea4d06 Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 30x30x10mm; 9.3m3/h; 23dBA; Vapo; Out: F type
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 30x30x10mm
Power consumption: 0.66W
Current rating: 55mA
Fan efficiency: 9.3m3/h
Noise level: 23dBA
Kind of Bearing: Vapo
Rotational rate/speed: 11500rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Static pressure: 6.35mm H2O
Flammability rating: UL94V-0
Signal output: F type
Wire size: 28AWG
Fan motor: brushless DC
Lead length: 0.145m
Additional functions: autorestart
Insulation class: A
кількість в упаковці: 1 шт
на замовлення 147 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
5+616.60 грн
40+486.83 грн
200+385.79 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
MF30101V1-1000U-G99 MF30101V1-1000U-G99 Виробник : Sunon Fans (D03033590G-01)-1.pdf Description: FAN AXIAL 30X10MM 12VDC WIRE
Features: Auto Restart, Speed Sensor (Tach)
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 30mm L x 30mm H
Bearing Type: Vapo-Bearing™
RPM: 11500 RPM
Air Flow: 5.5 CFM (0.154m³/min)
Width: 10.00mm
Weight: 0.018 lb (8.16 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 3 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 23.0dB(A)
Static Pressure: 0.250 in H2O (62.3 Pa)
Part Status: Active
Power (Watts): 660 mW
на замовлення 1486 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+833.42 грн
10+661.85 грн
25+607.68 грн
50+533.44 грн
100+503.92 грн
В кошику  од. на суму  грн.
MF30101V1-1000U-G99 MF30101V1-1000U-G99 Виробник : Sunon Sunon_MF25100V3_1000U_A99-3051246.pdf DC Fans Axial Fan, 30x30x10mm, 12VDC, 0.25"H2O, Vapo, 3x Wire, Auto Restart, Tach
на замовлення 834 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+833.71 грн
10+717.67 грн
25+572.74 грн
50+535.77 грн
100+506.34 грн
400+501.81 грн
1200+484.46 грн
В кошику  од. на суму  грн.
MF30101V1-1000U-G99 Виробник : Sunon (D03033590G-01)-1.pdf MF30101V1-1000U-G99
на замовлення 147 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
15+821.44 грн
40+663.08 грн
Мінімальне замовлення: 15
В кошику  од. на суму  грн.
MF30101V1-1000U-G99 Виробник : Sunon (D03033590G-01)-1.pdf MF30101V1-1000U-G99
на замовлення 1000 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
10+1287.62 грн
30+1197.44 грн
60+1162.05 грн
120+1087.53 грн
270+863.26 грн
Мінімальне замовлення: 10
В кошику  од. на суму  грн.
