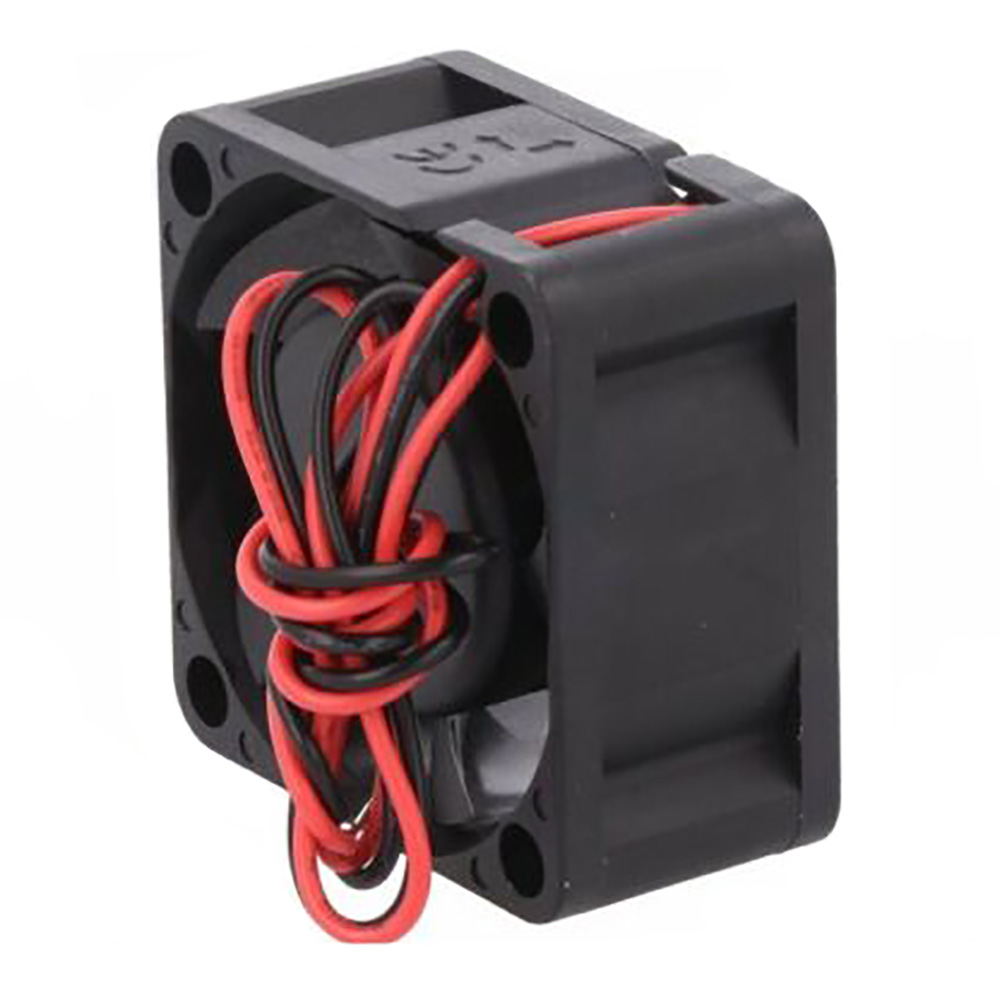

Технічний опис MF40200V2-1000U-A99 Sunon
Category: DC5V Fans, Description: Fan: DC; 40x40x20mm; axial; 5VDC; 13.01m3/h; 21dBA; Vapo; 6000rpm, Operating voltage: 3.5...6V DC, Leads: leads x2, Lead length: 0.305m, Operating temperature: -10...70°C, Insulation class: A, Supply voltage: 5V DC, Flammability rating: UL94V-0, Current rating: 0.107A, Static pressure: 4.31mm H2O, Fan efficiency: 13.01m3/h, Rotational rate/speed: 6000rpm, Enclosure material: thermoplastic, Kind of Bearing: Vapo, Fan motor: brushless DC, Fan dimensions: 40x40x20mm, Min. insulation resistance: 10MΩ, Power consumption: 0.54W, Impeller material: thermoplastic, Type of fan: DC, Noise level: 21dBA, Additional functions: autorestart, Kind of fan: axial, Wire size: 26AWG.
Інші пропозиції MF40200V2-1000U-A99 за ціною від 190.47 грн до 981.75 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF40200V2-1000U-A99 | SUNON |
 Category: DC5V FansDescription: Fan: DC; 40x40x20mm; axial; 5VDC; 13.01m3/h; 21dBA; Vapo; 6000rpm Operating voltage: 3.5...6V DC Leads: leads x2 Lead length: 0.305m Operating temperature: -10...70°C Insulation class: A Supply voltage: 5V DC Flammability rating: UL94V-0 Current rating: 0.107A Static pressure: 4.31mm H2O Fan efficiency: 13.01m3/h Rotational rate/speed: 6000rpm Enclosure material: thermoplastic Kind of Bearing: Vapo Fan motor: brushless DC Fan dimensions: 40x40x20mm Min. insulation resistance: 10MΩ Power consumption: 0.54W Impeller material: thermoplastic Type of fan: DC Noise level: 21dBA Additional functions: autorestart Kind of fan: axial Wire size: 26AWG |
на замовлення 315 шт: термін постачання 14-30 дні (днів) |
|
||||||||||
 |
MF40200V2-1000U-A99 | Sunon Fans |
Description: FAN AXIAL 40X20MM VAPO 5VDC WIRE Features: Auto Restart Packaging: Bulk Voltage - Rated: 5VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Vapo-Bearing™ RPM: 6000 RPM Air Flow: 7.7 CFM (0.216m³/min) Width: 20.00mm Weight: 0.064 lb (29.03 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 21.0dB(A) Static Pressure: 0.170 in H2O (42.3 Pa) Part Status: Active Power (Watts): 540 mW |
на замовлення 806 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
MF40200V2-1000U-A99 | SUNON |
Description: SUNON - MF40200V2-1000U-A99 - DC FAN, VAPO, 40MM, 6000RPM, 5VDC tariffCode: 0 euEccn: NLR Stromanschluss: 2 Lead Wires rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Vapo Bearing Nennleistung: 540mW isCanonical: Y IP-Schutzart: - Luftstrom - m3/min: - Nennstrom: 107mA Außentiefe: 20mm Geräuschentwicklung: 21dBA Luftstrom - CFM: 7.7cu.ft/min SVHC: No SVHC (27-Jun-2024) Lüfterrahmen: Square Produktpalette: DC Brushless M Series productTraceability: No Rahmengröße: 40mm usEccn: EAR99 Versorgungsspannung, V DC: 5V Nenndrehzahl: 6000rpm directShipCharge: 25 |
на замовлення 26 шт: термін постачання 21-31 дні (днів) |
В кошику од. на суму грн. | ||||||||||
| MF40200V2-1000U-A99 | Sunon |
DC Fan Axial Vapo Bearing 5V 7.7CFM 21dB 40 X 40 X 20mm Middle Speed |
на замовлення 300 шт: термін постачання 21-31 дні (днів) |
|
| MF40200V2-1000U-A99 |
|
Виробник: SUNON
Category: DC5V Fans
Description: Fan: DC; 40x40x20mm; axial; 5VDC; 13.01m3/h; 21dBA; Vapo; 6000rpm
Operating voltage: 3.5...6V DC
Leads: leads x2
Lead length: 0.305m
Operating temperature: -10...70°C
Insulation class: A
Supply voltage: 5V DC
Flammability rating: UL94V-0
Current rating: 0.107A
Static pressure: 4.31mm H2O
Fan efficiency: 13.01m3/h
Rotational rate/speed: 6000rpm
Enclosure material: thermoplastic
Kind of Bearing: Vapo
Fan motor: brushless DC
Fan dimensions: 40x40x20mm
Min. insulation resistance: 10MΩ
Power consumption: 0.54W
Impeller material: thermoplastic
Type of fan: DC
Noise level: 21dBA
Additional functions: autorestart
Kind of fan: axial
Wire size: 26AWG
Category: DC5V Fans
Description: Fan: DC; 40x40x20mm; axial; 5VDC; 13.01m3/h; 21dBA; Vapo; 6000rpm
Operating voltage: 3.5...6V DC
Leads: leads x2
Lead length: 0.305m
Operating temperature: -10...70°C
Insulation class: A
Supply voltage: 5V DC
Flammability rating: UL94V-0
Current rating: 0.107A
Static pressure: 4.31mm H2O
Fan efficiency: 13.01m3/h
Rotational rate/speed: 6000rpm
Enclosure material: thermoplastic
Kind of Bearing: Vapo
Fan motor: brushless DC
Fan dimensions: 40x40x20mm
Min. insulation resistance: 10MΩ
Power consumption: 0.54W
Impeller material: thermoplastic
Type of fan: DC
Noise level: 21dBA
Additional functions: autorestart
Kind of fan: axial
Wire size: 26AWG
на замовлення 315 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 319.98 грн |
| 50+ | 243.80 грн |
| 100+ | 213.32 грн |
| 200+ | 190.47 грн |
| MF40200V2-1000U-A99 |
|
Виробник: Sunon Fans
Description: FAN AXIAL 40X20MM VAPO 5VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 5VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Vapo-Bearing™
RPM: 6000 RPM
Air Flow: 7.7 CFM (0.216m³/min)
Width: 20.00mm
Weight: 0.064 lb (29.03 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 21.0dB(A)
Static Pressure: 0.170 in H2O (42.3 Pa)
Part Status: Active
Power (Watts): 540 mW
Description: FAN AXIAL 40X20MM VAPO 5VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 5VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Vapo-Bearing™
RPM: 6000 RPM
Air Flow: 7.7 CFM (0.216m³/min)
Width: 20.00mm
Weight: 0.064 lb (29.03 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 21.0dB(A)
Static Pressure: 0.170 in H2O (42.3 Pa)
Part Status: Active
Power (Watts): 540 mW
на замовлення 806 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 597.33 грн |
| 10+ | 467.55 грн |
| 25+ | 426.79 грн |
| 50+ | 373.03 грн |
| 200+ | 333.22 грн |
| MF40200V2-1000U-A99 |
|
Виробник: SUNON
Description: SUNON - MF40200V2-1000U-A99 - DC FAN, VAPO, 40MM, 6000RPM, 5VDC
tariffCode: 0
euEccn: NLR
Stromanschluss: 2 Lead Wires
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Vapo Bearing
Nennleistung: 540mW
isCanonical: Y
IP-Schutzart: -
Luftstrom - m3/min: -
Nennstrom: 107mA
Außentiefe: 20mm
Geräuschentwicklung: 21dBA
Luftstrom - CFM: 7.7cu.ft/min
SVHC: No SVHC (27-Jun-2024)
Lüfterrahmen: Square
Produktpalette: DC Brushless M Series
productTraceability: No
Rahmengröße: 40mm
usEccn: EAR99
Versorgungsspannung, V DC: 5V
Nenndrehzahl: 6000rpm
directShipCharge: 25
Description: SUNON - MF40200V2-1000U-A99 - DC FAN, VAPO, 40MM, 6000RPM, 5VDC
tariffCode: 0
euEccn: NLR
Stromanschluss: 2 Lead Wires
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Vapo Bearing
Nennleistung: 540mW
isCanonical: Y
IP-Schutzart: -
Luftstrom - m3/min: -
Nennstrom: 107mA
Außentiefe: 20mm
Geräuschentwicklung: 21dBA
Luftstrom - CFM: 7.7cu.ft/min
SVHC: No SVHC (27-Jun-2024)
Lüfterrahmen: Square
Produktpalette: DC Brushless M Series
productTraceability: No
Rahmengröße: 40mm
usEccn: EAR99
Versorgungsspannung, V DC: 5V
Nenndrehzahl: 6000rpm
directShipCharge: 25
на замовлення 26 шт:
термін постачання 21-31 дні (днів)
| MF40200V2-1000U-A99 |
|
Виробник: Sunon
DC Fan Axial Vapo Bearing 5V 7.7CFM 21dB 40 X 40 X 20mm Middle Speed
DC Fan Axial Vapo Bearing 5V 7.7CFM 21dB 40 X 40 X 20mm Middle Speed
на замовлення 300 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 30+ | 981.75 грн |
| 60+ | 901.70 грн |
| 120+ | 866.67 грн |
| 270+ | 776.37 грн |
