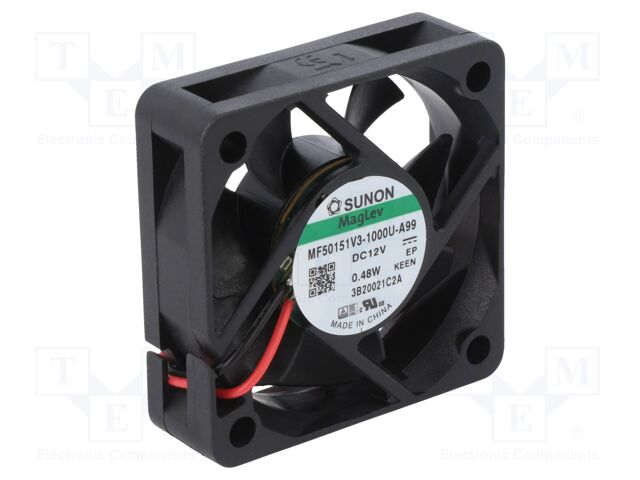

MF50151V3-1000U-A99

MF50151V3-1000U-A99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB90B41EDA9EE0B1B4B00C80C4&compId=MF50151V3-A99-A.pdf?ci_sign=89a9c9305cedc079c36f2248a5f5a3c5968f7edc Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 50x50x15mm; 17.32m3/h; 20.1dBA; Vapo; 3800rpm
Supply voltage: 12V DC
Leads: leads x2
Operating voltage: 4.5...13.8V DC
Type of fan: DC
Fan dimensions: 50x50x15mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 17.32m3/h
Static pressure: 3.04mm H2O
Noise level: 20.1dBA
Rotational rate/speed: 3800rpm
Current and power consumption tolerance: ±15%
Power consumption: 340mW
Lead length: 0.3m
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Enclosure material: thermoplastic
Current rating: 28mA
на замовлення 833 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
3+192.29 грн
50+137.94 грн
100+123.38 грн
200+118.02 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис MF50151V3-1000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 50x50x15mm; 17.32m3/h; 20.1dBA; Vapo; 3800rpm, Supply voltage: 12V DC, Leads: leads x2, Operating voltage: 4.5...13.8V DC, Type of fan: DC, Fan dimensions: 50x50x15mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 17.32m3/h, Static pressure: 3.04mm H2O, Noise level: 20.1dBA, Rotational rate/speed: 3800rpm, Current and power consumption tolerance: ±15%, Power consumption: 340mW, Lead length: 0.3m, Additional functions: autorestart, Kind of fan: axial, Min. insulation resistance: 10MΩ, Operating temperature: -10...70°C, Enclosure material: thermoplastic, Current rating: 28mA, кількість в упаковці: 1 шт.
