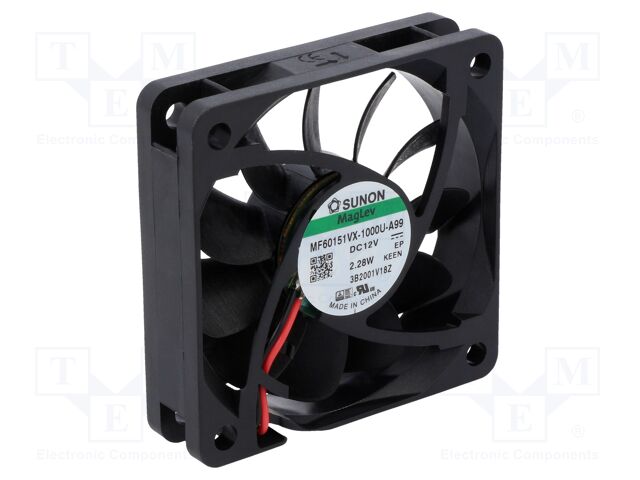

MF60151VX-1000U-A99

Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; 60x60x15mm; axial; 12VDC; 51.65m3/h; 36.2dBA; Vapo; 5400rpm
Type of fan: DC
Fan dimensions: 60x60x15mm
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Power consumption: 2.22W
Current rating: 185mA
Fan efficiency: 51.65m³/h
Noise level: 36.2dBA
Kind of Bearing: Vapo
Rotational rate/speed: 5400rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.29m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC

Виробник: Sunon Fans
Description: FAN AXIAL 60X15MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Vapo-Bearing™
RPM: 5400 RPM
Air Flow: 30.4 CFM (0.851m³/min)
Width: 15.00mm
Weight: 0.079 lb (35.83 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 36.2dB(A)
Static Pressure: 0.220 in H2O (55.0 Pa)
Part Status: Active
Power (Watts): 2.22 W

Виробник: Sunon
DC Fans DC Axial Fan, 60x60x15mm, 12VDC, 30.4CFM, 0.22"H2O, Vapo, 2xWire, Auto Restart

Виробник: SUNON
Description: SUNON - MF60151VX-1000U-A99 - DC FAN, VAPO, 60MM, 5400RPM, 12VDC
tariffCode: 84145925
euEccn: NLR
Stromanschluss: 2 Lead Wires
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Vapo Bearing
Nennleistung: 1.98W
isCanonical: Y
IP-Schutzart: -
Luftstrom - m3/min: -
Nennstrom: 165mA
Außentiefe: 15mm
Geräuschentwicklung: 36.2dBA
Luftstrom - CFM: 30.4cu.ft/min
SVHC: No SVHC (27-Jun-2024)
Lüfterrahmen: Square
Produktpalette: DC Brushless M Series
productTraceability: No
Rahmengröße: 60mm
usEccn: EAR99
Versorgungsspannung, V DC: 12V
Nenndrehzahl: 5400rpm
directShipCharge: 25

Виробник: Sunon
DC Axial Fan, 12VDC, Vapo Bearing
