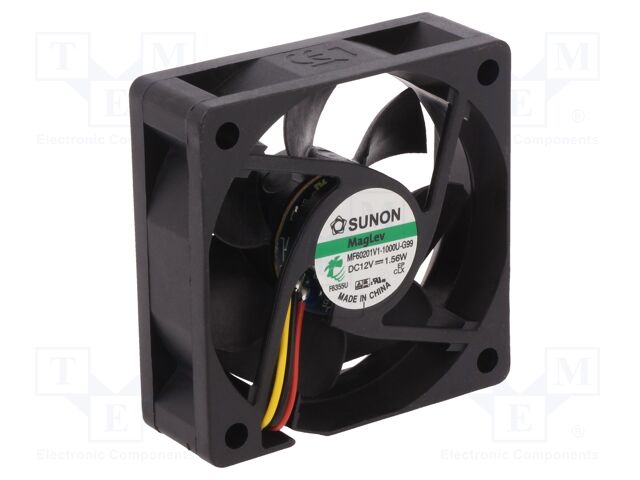

MF60201V1-1000U-G99 SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x20mm; 38.87m3/h; 33.5dBA; Vapo; 5000rpm
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Enclosure material: thermoplastic
Current rating: 0.1A
Supply voltage: 12V DC
Leads: leads x3
Operating voltage: 4.5...13.8V DC
Type of fan: DC
Fan dimensions: 60x60x20mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 38.87m3/h
Static pressure: 5.33mm H2O
Noise level: 33.5dBA
Rotational rate/speed: 5000rpm
Current and power consumption tolerance: ±15%
Power consumption: 1.2W
Wire size: 26AWG
Cable length: 0.29m
Related items: BUB-72H
Additional functions: autorestart
Signal output: F type
Kind of fan: axial
на замовлення 2095 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 380.16 грн |
| 50+ | 278.17 грн |
| 100+ | 241.13 грн |
| 200+ | 228.28 грн |
Відгуки про товар
Написати відгук
Технічний опис MF60201V1-1000U-G99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x20mm; 38.87m3/h; 33.5dBA; Vapo; 5000rpm, Min. insulation resistance: 10MΩ, Operating temperature: -10...70°C, Enclosure material: thermoplastic, Current rating: 0.1A, Supply voltage: 12V DC, Leads: leads x3, Operating voltage: 4.5...13.8V DC, Type of fan: DC, Fan dimensions: 60x60x20mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 38.87m3/h, Static pressure: 5.33mm H2O, Noise level: 33.5dBA, Rotational rate/speed: 5000rpm, Current and power consumption tolerance: ±15%, Power consumption: 1.2W, Wire size: 26AWG, Cable length: 0.29m, Related items: BUB-72H, Additional functions: autorestart, Signal output: F type, Kind of fan: axial, кількість в упаковці: 1 шт.
Інші пропозиції MF60201V1-1000U-G99 за ціною від 273.94 грн до 570.28 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF60201V1-1000U-G99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 60x60x20mm; 38.87m3/h; 33.5dBA; Vapo; 5000rpm Min. insulation resistance: 10MΩ Operating temperature: -10...70°C Enclosure material: thermoplastic Current rating: 0.1A Supply voltage: 12V DC Leads: leads x3 Operating voltage: 4.5...13.8V DC Type of fan: DC Fan dimensions: 60x60x20mm Fan motor: brushless DC Impeller material: thermoplastic Flammability rating: UL94V-0 Insulation class: A Kind of Bearing: Vapo Fan efficiency: 38.87m3/h Static pressure: 5.33mm H2O Noise level: 33.5dBA Rotational rate/speed: 5000rpm Current and power consumption tolerance: ±15% Power consumption: 1.2W Wire size: 26AWG Cable length: 0.29m Related items: BUB-72H Additional functions: autorestart Signal output: F type Kind of fan: axial кількість в упаковці: 1 шт |
на замовлення 2095 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| MF60201V1-1000U-G99 | Виробник : Sunon |
MF60201V1-1000U-G99 |
на замовлення 2095 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
| MF60201V1-1000U-G99 | Виробник : Sunon Fans |
Description: 12VDC FAN 60X20MM ALARM Features: Auto Restart, Speed Sensor (Tach) Packaging: Box Voltage - Rated: 12VDC Size / Dimension: Square - 60mm L x 60mm H Bearing Type: Vapo-Bearing™ RPM: 5000 RPM Air Flow: 23.0 CFM (0.644m³/min) Width: 20.00mm Termination: 3 Wire Leads Approval Agency: CCC, CE, cURus, TUV, UKCA Fan Type: Tubeaxial Noise: 33.5dB(A) Static Pressure: 0.210 in H2O (52.3 Pa) Power (Watts): 1.2 W |
товару немає в наявності |
||||||||||||
| MF60201V1-1000U-G99 | Виробник : Sunon |
DC Fans DC Axial Fan, 60x60x20mm, 12VDC, Vapo, 3x Wire, Auto Restart, Tach, MagLev Motor |
товару немає в наявності |
