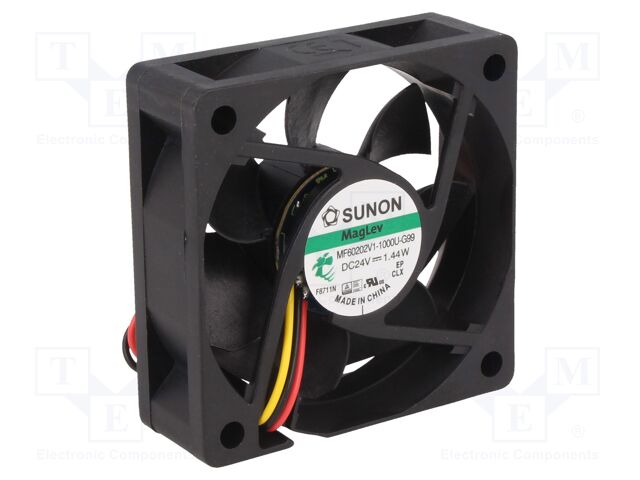

MF60202V1-1000U-G99 SUNON
Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 60x60x20mm; 38.87m3/h; 33.5dBA; Vapo; 26AWG
Additional functions: autorestart
Kind of fan: axial
Kind of Bearing: Vapo
Fan motor: brushless DC
Type of fan: DC
Leads: leads x3
Signal output: F type
Impeller material: thermoplastic
Enclosure material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Current rating: 55mA
Fan dimensions: 60x60x20mm
Lead length: 0.29m
Power consumption: 1.32W
Static pressure: 5.33mm H2O
Operating voltage: 8...27.6V DC
Supply voltage: 24V DC
Fan efficiency: 38.87m3/h
Wire size: 26AWG
Noise level: 33.5dBA
Rotational rate/speed: 5000 (±15%)rpm
Min. insulation resistance: 10MΩ
Related items: BUB-72H
Insulation class: A
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 455.19 грн |
| 10+ | 392.49 грн |
| 50+ | 332.11 грн |
Відгуки про товар
Написати відгук
Технічний опис MF60202V1-1000U-G99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 60x60x20mm; 38.87m3/h; 33.5dBA; Vapo; 26AWG, Additional functions: autorestart, Kind of fan: axial, Kind of Bearing: Vapo, Fan motor: brushless DC, Type of fan: DC, Leads: leads x3, Signal output: F type, Impeller material: thermoplastic, Enclosure material: thermoplastic, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Current rating: 55mA, Fan dimensions: 60x60x20mm, Lead length: 0.29m, Power consumption: 1.32W, Static pressure: 5.33mm H2O, Operating voltage: 8...27.6V DC, Supply voltage: 24V DC, Fan efficiency: 38.87m3/h, Wire size: 26AWG, Noise level: 33.5dBA, Rotational rate/speed: 5000 (±15%)rpm, Min. insulation resistance: 10MΩ, Related items: BUB-72H, Insulation class: A.
Інші пропозиції MF60202V1-1000U-G99
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
| MF60202V1-1000U-G99 | Sunon Fans |
Description: 24VDC FAN 60X20MM ALARM Features: Auto Restart, Speed Sensor (Tach) Packaging: Box Voltage - Rated: 24VDC Size / Dimension: Square - 60mm L x 60mm H Bearing Type: Vapo-Bearing™ RPM: 5000 RPM Air Flow: 23.0 CFM (0.644m³/min) Width: 20.00mm Termination: 3 Wire Leads Approval Agency: CCC, CE, cURus, TUV, UKCA Fan Type: Tubeaxial Noise: 33.5dB(A) Static Pressure: 0.210 in H2O (52.3 Pa) Power (Watts): 1.32 W |
товару немає в наявності |
Мінімальне замовлення: 200 шт В кошику од. на суму грн. | |
| MF60202V1-1000U-G99 | Sunon |
DC Fans DC Axial Fan, 60x60x20mm, 24VDC, Vapo, 3x Wire, Auto Restart, Tach, MagLev Motor |
товару немає в наявності |
В кошику од. на суму грн. |
| MF60202V1-1000U-G99 |
|
Виробник: Sunon Fans
Description: 24VDC FAN 60X20MM ALARM
Features: Auto Restart, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Vapo-Bearing™
RPM: 5000 RPM
Air Flow: 23.0 CFM (0.644m³/min)
Width: 20.00mm
Termination: 3 Wire Leads
Approval Agency: CCC, CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 33.5dB(A)
Static Pressure: 0.210 in H2O (52.3 Pa)
Power (Watts): 1.32 W
Description: 24VDC FAN 60X20MM ALARM
Features: Auto Restart, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Vapo-Bearing™
RPM: 5000 RPM
Air Flow: 23.0 CFM (0.644m³/min)
Width: 20.00mm
Termination: 3 Wire Leads
Approval Agency: CCC, CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 33.5dB(A)
Static Pressure: 0.210 in H2O (52.3 Pa)
Power (Watts): 1.32 W
товару немає в наявності
Мінімальне замовлення: 200 шт
В кошику
од. на суму грн.
| MF60202V1-1000U-G99 |
|
Виробник: Sunon
DC Fans DC Axial Fan, 60x60x20mm, 24VDC, Vapo, 3x Wire, Auto Restart, Tach, MagLev Motor
DC Fans DC Axial Fan, 60x60x20mm, 24VDC, Vapo, 3x Wire, Auto Restart, Tach, MagLev Motor
