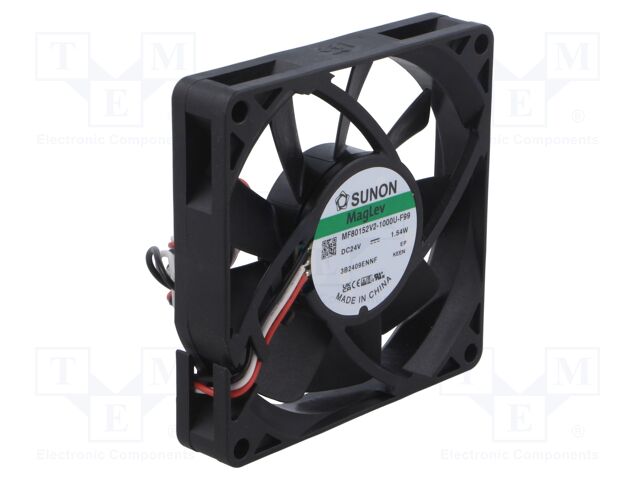

MF80152V2-1000U-F99 SUNON
Виробник: SUNONCategory: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x15mm; 29.9dBA; Vapo; Out: R type
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 80x80x15mm
Power consumption: 1.32W
Current rating: 55mA
Noise level: 29.9dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3100rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Lead length: 0.315m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Insulation class: A
Operating voltage: 8...27.6V DC
Signal output: R type
Fan motor: brushless DC
Additional functions: autorestart; protection against reverse connection of power supply
на замовлення 197 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 391.09 грн |
| 50+ | 342.72 грн |
| 100+ | 322.28 грн |
Відгуки про товар
Написати відгук
Технічний опис MF80152V2-1000U-F99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x15mm; 29.9dBA; Vapo; Out: R type, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Fan dimensions: 80x80x15mm, Power consumption: 1.32W, Current rating: 55mA, Noise level: 29.9dBA, Kind of Bearing: Vapo, Rotational rate/speed: 3100rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x3, Lead length: 0.315m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Insulation class: A, Operating voltage: 8...27.6V DC, Signal output: R type, Fan motor: brushless DC, Additional functions: autorestart; protection against reverse connection of power supply, кількість в упаковці: 1 шт.
Інші пропозиції MF80152V2-1000U-F99 за ціною від 363.15 грн до 771.36 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF80152V2-1000U-F99 | Виробник : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 80x80x15mm; 29.9dBA; Vapo; Out: R type Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Fan dimensions: 80x80x15mm Power consumption: 1.32W Current rating: 55mA Noise level: 29.9dBA Kind of Bearing: Vapo Rotational rate/speed: 3100rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x3 Lead length: 0.315m Operating temperature: -10...70°C Flammability rating: UL94V-0 Insulation class: A Operating voltage: 8...27.6V DC Signal output: R type Fan motor: brushless DC Additional functions: autorestart; protection against reverse connection of power supply кількість в упаковці: 1 шт |
на замовлення 197 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| MF80152V2-1000U-F99 | Виробник : Sunon |
MF80152V2-1000U-F99 |
на замовлення 197 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
| MF80152V2-1000U-F99 | Виробник : Sunon Fans |
Description: 24VDC FAN 80X15MM TACH Features: Auto Restart, Locked Rotor Sensor Packaging: Box Voltage - Rated: 24VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Vapo-Bearing™ RPM: 3100 RPM Air Flow: 33.6 CFM (0.941m³/min) Width: 15.00mm Termination: 3 Wire Leads Approval Agency: CCC, CE, cURus, TUV, UKCA Fan Type: Tubeaxial Noise: 29.9dB(A) Static Pressure: 0.130 in H2O (32.4 Pa) Power (Watts): 1.32 W |
товару немає в наявності |
||||||||||||
| MF80152V2-1000U-F99 | Виробник : Sunon |
DC Fans DC Axial Fan, 80x80x15mm, 24VDC, Vapo, 3x Wire, Auto Restart/Lock Sensor, MagLev |
товару немає в наявності |
