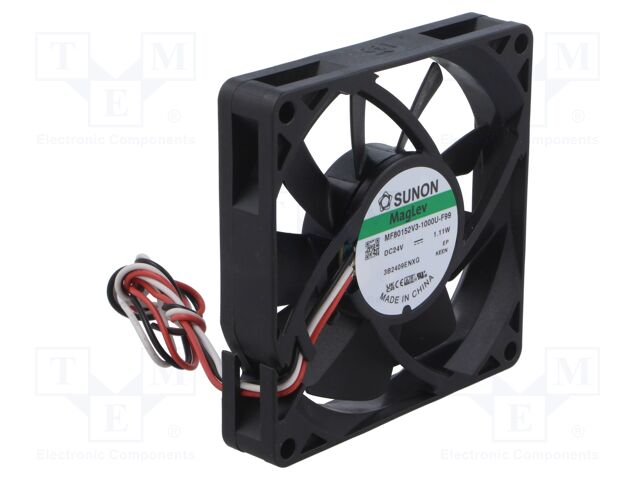

MF80152V3-1000U-F99 SUNON
Виробник: SUNONCategory: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x15mm; 26.5dBA; Vapo; Out: R type
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 8...27.6V DC
Fan dimensions: 80x80x15mm
Power consumption: 0.96W
Current rating: 40mA
Noise level: 26.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 2800rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart; protection against reverse connection of power supply
Fan motor: brushless DC
Lead length: 0.315m
Signal output: R type
Current and power consumption tolerance: ±15%
на замовлення 174 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 396.44 грн |
| 50+ | 349.23 грн |
| 100+ | 329.57 грн |
Відгуки про товар
Написати відгук
Технічний опис MF80152V3-1000U-F99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x15mm; 26.5dBA; Vapo; Out: R type, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 8...27.6V DC, Fan dimensions: 80x80x15mm, Power consumption: 0.96W, Current rating: 40mA, Noise level: 26.5dBA, Kind of Bearing: Vapo, Rotational rate/speed: 2800rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x3, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart; protection against reverse connection of power supply, Fan motor: brushless DC, Lead length: 0.315m, Signal output: R type, Current and power consumption tolerance: ±15%, кількість в упаковці: 1 шт.
Інші пропозиції MF80152V3-1000U-F99 за ціною від 371.90 грн до 569.14 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MF80152V3-1000U-F99 | Виробник : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 80x80x15mm; 26.5dBA; Vapo; Out: R type Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 8...27.6V DC Fan dimensions: 80x80x15mm Power consumption: 0.96W Current rating: 40mA Noise level: 26.5dBA Kind of Bearing: Vapo Rotational rate/speed: 2800rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x3 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart; protection against reverse connection of power supply Fan motor: brushless DC Lead length: 0.315m Signal output: R type Current and power consumption tolerance: ±15% кількість в упаковці: 1 шт |
на замовлення 174 шт: термін постачання 14-21 дні (днів) |
|
|||||||||||
| MF80152V3-1000U-F99 | Виробник : Sunon |
MF80152V3-1000U-F99 |
на замовлення 175 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
| MF80152V3-1000U-F99 | Виробник : Sunon Fans |
Description: 24VDC FAN 80X15MM TACH Features: Auto Restart, Locked Rotor Sensor Packaging: Box Voltage - Rated: 24VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Vapo-Bearing™ RPM: 2800 RPM Air Flow: 30.0 CFM (0.840m³/min) Width: 15.00mm Termination: 3 Wire Leads Approval Agency: CCC, CE, cURus, TUV, UKCA Fan Type: Tubeaxial Noise: 26.5dB(A) Static Pressure: 0.110 in H2O (27.4 Pa) Power (Watts): 0.96 W |
товару немає в наявності |
||||||||||||
| MF80152V3-1000U-F99 | Виробник : Sunon |
DC Fans DC Axial Fan, 80x80x15mm, 24VDC, Vapo, 3x Wire, Auto Restart/Lock Sensor, MagLev |
товару немає в наявності |
