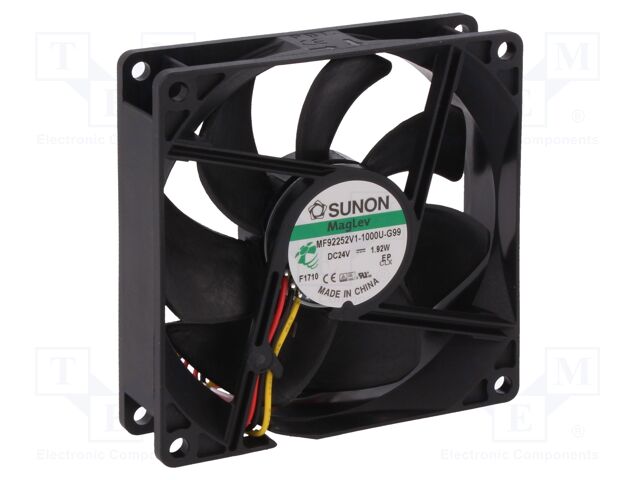

MF92252V1-1000U-G99 SUNON
Виробник: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 87.5m3/h; 34dBA; Vapo; Out: F type
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 92x92x25mm
Power consumption: 1.8W
Current rating: 75mA
Fan efficiency: 87.5m3/h
Noise level: 34dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 3.8mm H2O
Operating voltage: 8...27.6V DC
Wire size: 24AWG
Signal output: F type
Fan motor: brushless DC
Insulation class: A
Additional functions: autorestart
Lead length: 0.31m
| Кількість | Ціна без ПДВ |
|---|---|
| 2+ | 366.68 грн |
| 10+ | 301.08 грн |
| 28+ | 254.11 грн |
| 56+ | 250.76 грн |
Відгуки про товар
Написати відгук
Технічний опис MF92252V1-1000U-G99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 92x92x25mm; 87.5m3/h; 34dBA; Vapo; Out: F type, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Fan dimensions: 92x92x25mm, Power consumption: 1.8W, Current rating: 75mA, Fan efficiency: 87.5m3/h, Noise level: 34dBA, Kind of Bearing: Vapo, Rotational rate/speed: 3000 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x3, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 3.8mm H2O, Operating voltage: 8...27.6V DC, Wire size: 24AWG, Signal output: F type, Fan motor: brushless DC, Insulation class: A, Additional functions: autorestart, Lead length: 0.31m.
Інші пропозиції MF92252V1-1000U-G99
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
MF92252V1-1000U-G99 | Sunon Fans |
Description: FAN AXIAL 92X25MM 24VDC WIRE Packaging: Bulk Features: Auto Restart, Speed Sensor (Tach) Voltage - Rated: 24VDC Size / Dimension: Square - 92mm L x 92mm H Bearing Type: Vapo-Bearing™ RPM: 3000 RPM Air Flow: 51.5 CFM (1.44m³/min) Width: 25.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 3 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 34.0dB(A) Static Pressure: 0.150 in H2O (37.3 Pa) Part Status: Active Power (Watts): 1.8 W |
товару немає в наявності |
Мінімальне замовлення: 56 шт В кошику од. на суму грн. |
| MF92252V1-1000U-G99 | Sunon |
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, Vapo, 3x Wire, Auto Restart, Tach, MagLev Motor |
товару немає в наявності |
В кошику од. на суму грн. |
| MF92252V1-1000U-G99 |
|
Виробник: Sunon Fans
Description: FAN AXIAL 92X25MM 24VDC WIRE
Packaging: Bulk
Features: Auto Restart, Speed Sensor (Tach)
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Vapo-Bearing™
RPM: 3000 RPM
Air Flow: 51.5 CFM (1.44m³/min)
Width: 25.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 3 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 34.0dB(A)
Static Pressure: 0.150 in H2O (37.3 Pa)
Part Status: Active
Power (Watts): 1.8 W
Description: FAN AXIAL 92X25MM 24VDC WIRE
Packaging: Bulk
Features: Auto Restart, Speed Sensor (Tach)
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Vapo-Bearing™
RPM: 3000 RPM
Air Flow: 51.5 CFM (1.44m³/min)
Width: 25.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 3 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 34.0dB(A)
Static Pressure: 0.150 in H2O (37.3 Pa)
Part Status: Active
Power (Watts): 1.8 W
товару немає в наявності
Мінімальне замовлення: 56 шт
В кошику
од. на суму грн.
| MF92252V1-1000U-G99 |
|
Виробник: Sunon
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, Vapo, 3x Wire, Auto Restart, Tach, MagLev Motor
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, Vapo, 3x Wire, Auto Restart, Tach, MagLev Motor
товару немає в наявності
В кошику
од. на суму грн.
