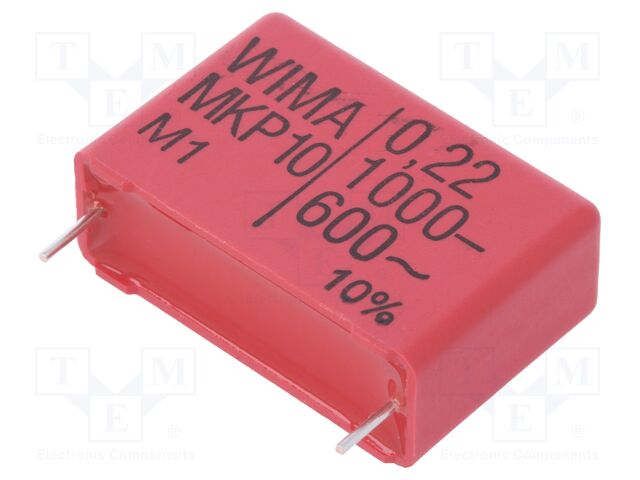

MKP1O132206B00KSSD WIMA
Виробник: WIMA
Description: CAP FILM 0.22UF 10% 1KVDC RAD
Tolerance: ±10%
Packaging: Bulk
Package / Case: Radial
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 110°C
Applications: High Pulse, DV/DT
Lead Spacing: 1.083" (27.50mm)
Termination: PC Pins
Dielectric Material: Polypropylene (PP), Metallized
Voltage Rating - AC: 600V
Voltage Rating - DC: 1000V (1kV)
Height - Seated (Max): 0.827" (21.00mm)
Capacitance: 0.22 µF
Size / Dimension: 1.240" L x 0.433" W (31.50mm x 11.00mm)
| Кількість | Ціна |
|---|---|
| 2+ | 158.33 грн |
| 10+ | 104.31 грн |
| 50+ | 85.14 грн |
| 459+ | 65.33 грн |
Відгуки про товар
Написати відгук
Технічний опис MKP1O132206B00KSSD WIMA
Category: THT Film Capacitors, Description: Capacitor: polypropylene; 220nF; Uoper: 1kVDC; Uoper max: 1kVDC, Type of capacitor: polypropylene, Capacitance: 0.22µF, Operating voltage: 1kV DC, Max. operating voltage: 600V AC; 1kV DC, Body dimensions: 31.5x11x21mm, Mounting: THT, Tolerance: ±10%, Terminal pitch: 27.5mm, Capacitors features: low dielectric loss factor; self-healing feature, Climate class: 55/100/56, Pulse resistance: 1.8kV/μs, Capacitor application: audio equipment; impulse circuits, Lead length: 6mm, Flammability rating: UL94V-0, Kind of material: flame retardant, Operating temperature: -55...110°C, Kind of package: cardboard packaging.
Інші пропозиції MKP1O132206B00KSSD за ціною від 64.52 грн до 173.14 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MKP1O132206B00KSSD | Виробник : WIMA |
Film Capacitors .22uF 1000 Volts 10% |
на замовлення 446 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
 |
MKP1O132206B00KSSD | Виробник : WIMA |
Category: THT Film Capacitors Description: Capacitor: polypropylene; 220nF; Uoper: 1kVDC; Uoper max: 1kVDC Type of capacitor: polypropylene Capacitance: 0.22µF Operating voltage: 1kV DC Max. operating voltage: 600V AC; 1kV DC Body dimensions: 31.5x11x21mm Mounting: THT Tolerance: ±10% Terminal pitch: 27.5mm Capacitors features: low dielectric loss factor; self-healing feature Climate class: 55/100/56 Pulse resistance: 1.8kV/μs Capacitor application: audio equipment; impulse circuits Lead length: 6mm Flammability rating: UL94V-0 Kind of material: flame retardant Operating temperature: -55...110°C Kind of package: cardboard packaging |
товару немає в наявності |
