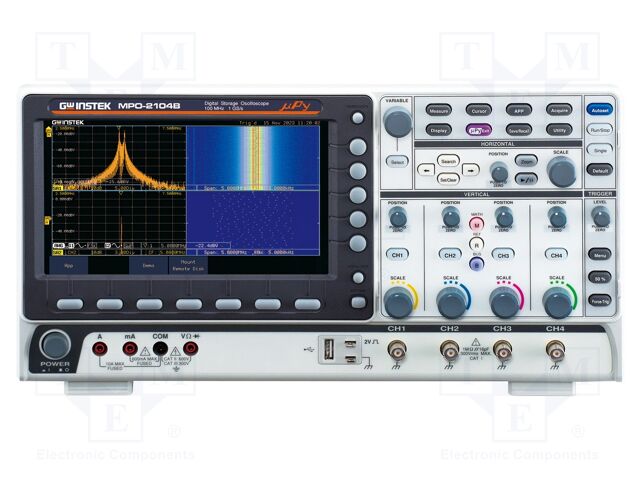

MPO-2104B GW INSTEK
Виробник: GW INSTEK
Description: GW INSTEK - MPO-2104B - Digitales Oszilloskop, MPO-2000 Series, 4 Kanäle, 100 MHz, 1 GSPS, 3.5 ns
tariffCode: 90302000
rohsCompliant: Y-EX
Lieferumfang des Kits: MPO-2104B, Tastkopf GTP-100B-4, 2x Kabel GTL-110, Messleitung GTL-105A/GTL-207, Netzkabel, Kalibrierzertifikat
Berechnete Anstiegszeit: 3.5ns
hazardous: false
rohsPhthalatesCompliant: YES
Abtastrate: 1GSPS
isCanonical: Y
Aufzeichnungslänge (Speichertiefe): -
usEccn: 3A992.g
Netzsteckertyp: -
Herstellergewährleistung: 3 Jahre
euEccn: NLR
Produktpalette: MPO-2000 Series
Bandbreite: 100MHz
productTraceability: No
Oszilloskopkanäle: 4 Kanäle
Oszilloskopanzeige: WVGA-TFT-LCD-Farbanzeige
SVHC: No SVHC (10-Jun-2022)
Відгуки про товар
Написати відгук
Технічний опис MPO-2104B GW INSTEK
Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 10pts/ch; LCD TFT 8", Kind of display used: LCD TFT 8", Display resolution: 800x480, Number of channels: 4, Vertical resolution: 8bit, Dimensions: 384x208x127.3mm, Interface: Go/NoGo BNC; LAN; USB 2.0 host; USB device, Sampling: 1Gsps, Standard equipment: cable BNC-BNC x2; mains cable; oscilloscope probe (1 per channel); test leads; test leads with crocodile clips, Supply voltage: 100...240V AC, Trigger: alternate; bus; falling-edge; impulse width; pulse; rising-edge; timeout; video signal; with delay, Type of oscilloscope: digital, Manufacturer series: MPO-2000, Related items: MP2-PRO, Rise time: ≤3.5ns, Time base: 1n...100s/div, Input coupling: AC, DC, GND, Trigger coupling: AC; DC; highpass; lowpass; noise, Display parameters: (5000), Memory record length: 10pts/ch, Max. input voltage: 300V, Measuring instrument features: I2C, SPI, UART, CAN, LIN Serial Decode; mask testing; protocols analyse: I2C, SPI, UART, CAN, LIN; the Python script function, Input impedance: 1MΩ/16pF, Band: 100MHz, Input sensitivity: 1mV/div...10V/div, Additional functions: arbitrary waveform generator; multimeter; power supply; spectrum analyser.
Інші пропозиції MPO-2104B
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 +1 |
MPO-2104B | Виробник : GW INSTEK |
Category: Digital Oscilloscopes Description: Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 10pts/ch; LCD TFT 8" Kind of display used: LCD TFT 8" Display resolution: 800x480 Number of channels: 4 Vertical resolution: 8bit Dimensions: 384x208x127.3mm Interface: Go/NoGo BNC; LAN; USB 2.0 host; USB device Sampling: 1Gsps Standard equipment: cable BNC-BNC x2; mains cable; oscilloscope probe (1 per channel); test leads; test leads with crocodile clips Supply voltage: 100...240V AC Trigger: alternate; bus; falling-edge; impulse width; pulse; rising-edge; timeout; video signal; with delay Type of oscilloscope: digital Manufacturer series: MPO-2000 Related items: MP2-PRO Rise time: ≤3.5ns Time base: 1n...100s/div Input coupling: AC, DC, GND Trigger coupling: AC; DC; highpass; lowpass; noise Display parameters: (5000) Memory record length: 10pts/ch Max. input voltage: 300V Measuring instrument features: I2C, SPI, UART, CAN, LIN Serial Decode; mask testing; protocols analyse: I2C, SPI, UART, CAN, LIN; the Python script function Input impedance: 1MΩ/16pF Band: 100MHz Input sensitivity: 1mV/div...10V/div Additional functions: arbitrary waveform generator; multimeter; power supply; spectrum analyser |
товару немає в наявності |
