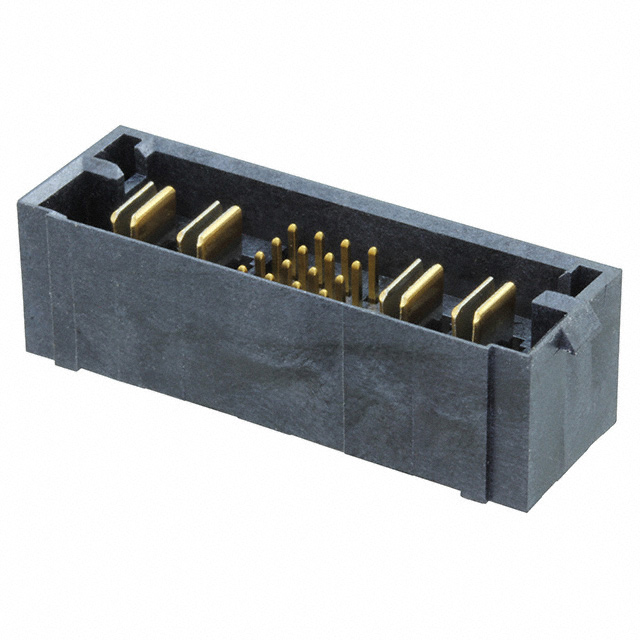

MPTC-02-16-02-6.30-01-L-V Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER VERT 20POS
Packaging: Tray
Features: Board Guide
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 20 (16 + 4 Power)
Number of Rows: 4
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Blade; Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular, Square
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.448" (11.38mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Description: CONN HEADER VERT 20POS
Packaging: Tray
Features: Board Guide
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 20 (16 + 4 Power)
Number of Rows: 4
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Blade; Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular, Square
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.448" (11.38mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
на замовлення 253 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 337.72 грн |
25+ | 294.13 грн |
50+ | 272.75 грн |
100+ | 243.81 грн |
Відгуки про товар
Написати відгук
Технічний опис MPTC-02-16-02-6.30-01-L-V Samtec Inc.
Description: CONN HEADER VERT 20POS, Packaging: Tray, Features: Board Guide, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 20 (16 + 4 Power), Number of Rows: 4, Style: Board to Board, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Blade; Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Phosphor Bronze, Insulation Color: Black, Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Rectangular, Square, Contact Length - Post: 0.107" (2.71mm), Insulation Height: 0.448" (11.38mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.079" (2.00mm).
Інші пропозиції MPTC-02-16-02-6.30-01-L-V за ціною від 269.69 грн до 396.78 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MPTC-02-16-02-6.30-01-L-V | Виробник : Samtec | Heavy Duty Power Connectors 5.00 mm PowerStrip/30 A Signal/Power Combo Terminal Strip |
на замовлення 196 шт: термін постачання 21-30 дні (днів) |
|
|||||||||
MPTC-02-16-02-6.30-01-L-V | Виробник : SAMTEC |
Description: SAMTEC - MPTC-02-16-02-6.30-01-L-V - Stiftleiste, Board-to-Board, 4 Reihe(n), 20 Kontakt(e), Durchsteckmontage, MPTC tariffCode: 85366930 productTraceability: No rohsCompliant: YES euEccn: NLR hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 |
на замовлення 1 шт: термін постачання 21-31 дні (днів) |
||||||||||
MPTC-02-16-02-6.30-01-L-V | Виробник : Samtec | Conn Shrouded Header (4 Sides) HDR 4Power/16Signal POS 1.88mm/2mm Solder ST Top Entry Thru-Hole PowerStrip™ Tray |
товар відсутній |
