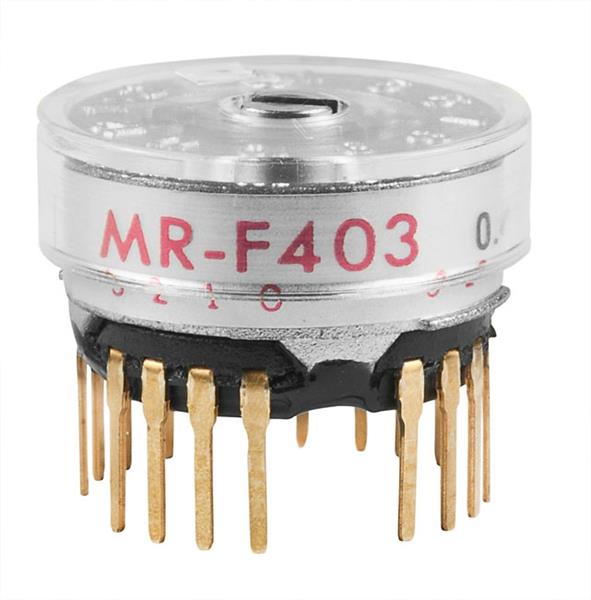

Технічний опис MRF403 NKK Switches
Category: Rotary Switches, Description: Switch: rotary; Pos: 3; 0.1A/28VAC; 0.1A/28VDC; Poles number: 4; THT, Type of switch: rotary, Number of positions: 3, Stable positions number: 3, AC contacts rating @R: 0.1A / 28V AC, DC contacts rating @R: 0.1A / 28V DC, Poles number: 4, Mounting: THT, Leads: for PCB, Contact material: phosphor bronze, Switching method: ON-ON-ON, Max. contact resistance:: 50mΩ, Min. insulation resistance: 0.1GΩ, Body dimensions: Ø14x8.2mm, Electrical life: 10000 cycles, Contact plating: gold-plated, Manufacturer series: MR, Operating temperature: -10...70°C.
Інші пропозиції MRF403 за ціною від 684.02 грн до 1302.46 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MRF403 | NKK Switches |
 Description: SWITCH ROTARY 2-3POS 0.4VA 28VPackaging: Box Features: Process Sealed Contact Finish: Gold Current Rating (Amps): 0.4VA (AC/DC) Mounting Type: Through Hole Number of Positions: 2 ~ 3 Termination Style: PC Pin Actuator Length: Flush Actuator Type: Screwdriver Slot Angle of Throw: 30° Number of Decks: 1 Number of Poles per Deck: 4 Circuit per Deck: 4P3T Contact Material: Phosphor Bronze Contact Timing: Non-Shorting (BBM) Index Stops: Adjustable Part Status: Active Voltage Rating - AC: 28 V Voltage Rating - DC: 28 V |
на замовлення 424 шт: термін постачання 21-31 дні (днів) |
|
| MRF403 |
|
Виробник: NKK Switches
Description: SWITCH ROTARY 2-3POS 0.4VA 28V
Packaging: Box
Features: Process Sealed
Contact Finish: Gold
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole
Number of Positions: 2 ~ 3
Termination Style: PC Pin
Actuator Length: Flush
Actuator Type: Screwdriver Slot
Angle of Throw: 30°
Number of Decks: 1
Number of Poles per Deck: 4
Circuit per Deck: 4P3T
Contact Material: Phosphor Bronze
Contact Timing: Non-Shorting (BBM)
Index Stops: Adjustable
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
Description: SWITCH ROTARY 2-3POS 0.4VA 28V
Packaging: Box
Features: Process Sealed
Contact Finish: Gold
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole
Number of Positions: 2 ~ 3
Termination Style: PC Pin
Actuator Length: Flush
Actuator Type: Screwdriver Slot
Angle of Throw: 30°
Number of Decks: 1
Number of Poles per Deck: 4
Circuit per Deck: 4P3T
Contact Material: Phosphor Bronze
Contact Timing: Non-Shorting (BBM)
Index Stops: Adjustable
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
на замовлення 424 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1302.46 грн |
| 5+ | 1077.36 грн |
| 10+ | 1008.90 грн |
| 25+ | 867.71 грн |
| 50+ | 812.10 грн |
| 100+ | 759.81 грн |
| 250+ | 684.02 грн |
