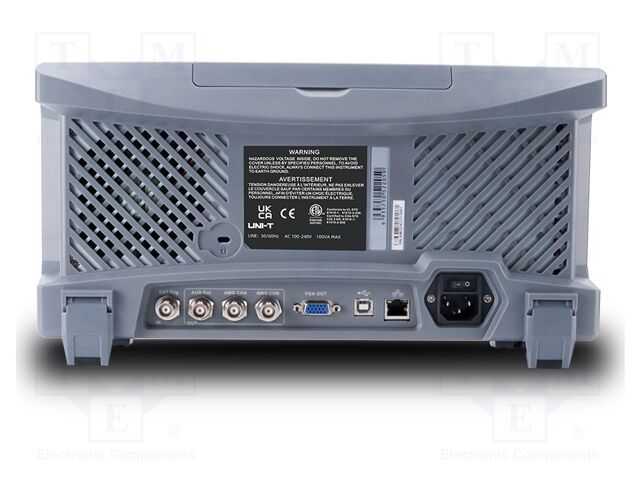

MSO2202 UNI-T
Виробник: UNI-TCategory: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 200MHz; 2 Gs/s; 56Mpts; LCD TFT 8"
Supply voltage: 100...240V AC
Standard equipment: BNC cable; mains cable; test probe x2; USB cable
Type of oscilloscope: digital
Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; runt; slope; video signal; with delay
Kind of display used: LCD TFT 8"
Time base: 1n...1ks/div
Rise time: ≤1.8ns
Input sensitivity: 500µV/div...20V/div
Dimensions: 370x185x115mm
Number of channels: 2
Vertical resolution: 8bit
Display resolution: 800x480
Input impedance: 1MΩ/16pF
Memory record length: 56Mpts
Sampling: 2 Gs/s
Band: 200MHz
Input coupling: AC, DC, GND
Measuring instrument features: automatic measurement of many parameters; mathematical functions: addition, subtraction, division, multiplication and FFT; split screen function
Related items: MSO/UPO2000-AUTO; MSO/UPO2000-BND; MSO/UPO2000-CAN; MSO/UPO2000-CANF; MSO/UPO2000-COM; MSO/UPO2000-EMBD; MSO/UPO2000-FR; MSO/UPO2000-I2C; MSO/UPO2000-LIN; MSO/UPO2000-SPI
Interface: AUX; LAN; USB device; USB Host; VGA
на замовлення 1 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 63628.89 грн |
Відгуки про товар
Написати відгук
Технічний опис MSO2202 UNI-T
Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 2; 200MHz; 2 Gs/s; 56Mpts; LCD TFT 8", Supply voltage: 100...240V AC, Standard equipment: BNC cable; mains cable; test probe x2; USB cable, Type of oscilloscope: digital, Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; runt; slope; video signal; with delay, Kind of display used: LCD TFT 8", Time base: 1n...1ks/div, Rise time: ≤1.8ns, Input sensitivity: 500µV/div...20V/div, Dimensions: 370x185x115mm, Number of channels: 2, Vertical resolution: 8bit, Display resolution: 800x480, Input impedance: 1MΩ/16pF, Memory record length: 56Mpts, Sampling: 2 Gs/s, Band: 200MHz, Input coupling: AC, DC, GND, Measuring instrument features: automatic measurement of many parameters; mathematical functions: addition, subtraction, division, multiplication and FFT; split screen function, Related items: MSO/UPO2000-AUTO; MSO/UPO2000-BND; MSO/UPO2000-CAN; MSO/UPO2000-CANF; MSO/UPO2000-COM; MSO/UPO2000-EMBD; MSO/UPO2000-FR; MSO/UPO2000-I2C; MSO/UPO2000-LIN; MSO/UPO2000-SPI, Interface: AUX; LAN; USB device; USB Host; VGA, кількість в упаковці: 1 шт.
Інші пропозиції MSO2202 за ціною від 76354.67 грн до 98595.59 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||
|---|---|---|---|---|---|---|---|---|---|
|
+1 |
MSO2202 | Виробник : UNI-T |
Category: Digital Oscilloscopes Description: Oscilloscope: digital; Ch: 2; 200MHz; 2 Gs/s; 56Mpts; LCD TFT 8" Supply voltage: 100...240V AC Standard equipment: BNC cable; mains cable; test probe x2; USB cable Type of oscilloscope: digital Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; runt; slope; video signal; with delay Kind of display used: LCD TFT 8" Time base: 1n...1ks/div Rise time: ≤1.8ns Input sensitivity: 500µV/div...20V/div Dimensions: 370x185x115mm Number of channels: 2 Vertical resolution: 8bit Display resolution: 800x480 Input impedance: 1MΩ/16pF Memory record length: 56Mpts Sampling: 2 Gs/s Band: 200MHz Input coupling: AC, DC, GND Measuring instrument features: automatic measurement of many parameters; mathematical functions: addition, subtraction, division, multiplication and FFT; split screen function Related items: MSO/UPO2000-AUTO; MSO/UPO2000-BND; MSO/UPO2000-CAN; MSO/UPO2000-CANF; MSO/UPO2000-COM; MSO/UPO2000-EMBD; MSO/UPO2000-FR; MSO/UPO2000-I2C; MSO/UPO2000-LIN; MSO/UPO2000-SPI Interface: AUX; LAN; USB device; USB Host; VGA кількість в упаковці: 1 шт |
на замовлення 1 шт: термін постачання 14-21 дні (днів) |
|
||||
 |
MSO2202 | Виробник : UNI-TREND TECHNOLOGY EU GmbH |
Description: 200 MHZ, 2+16 CH, 2GSA/S, DSO Packaging: Bulk Display Type: LCD Function: Record, Playback Memory Size: 56Mpts Interface: RS232, USB Type: Bench Voltage - Supply: 100 ~ 240VAC Sampling Rate (Per Second): 2G Voltage - Input (Max): 400V Channels: 2 Input Impedance: 1M - 16pF Probe Type: Passive (2) Bandwidth: 200 MHz Rise Time (Typ): 1.8 ns |
на замовлення 10 шт: термін постачання 21-31 дні (днів) |
|
