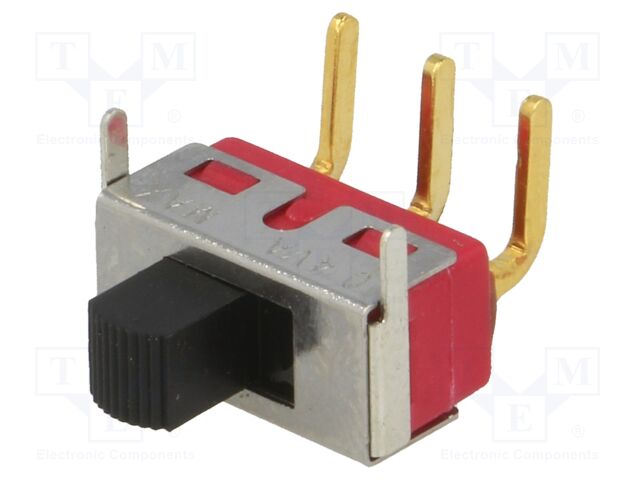

MSS13PLP IC SWITCHES
Виробник: IC SWITCHES
Category: Slide Switches
Description: Switch: slide; Pos: 2; SPDT; 2A/250VAC; ON-ON; THT; 12.7x6.6x6.35mm
Mounting: THT
Contact material: copper alloy
Flammability rating: UL94V-0
Type of switch: slide
Mechanical durability: 30000 cycles
AC contacts rating @R: 2A / 250V AC
Operating temperature: -30...85°C
Contacts configuration: SPDT
Stable positions number: 2
Leads: angled; for PCB
Knob height: 4.72mm
Body material: stainless steel
Body dimensions: 12.7x6.6x6.35mm
Switching method: ON-ON
Min. insulation resistance: 1GΩ
Max. contact resistance:: 10mΩ
Number of positions: 2
Actuator material: polyamide
Contact plating: silver plated
Terminal pitch: 4.7mm
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 207.58 грн |
| 5+ | 168.76 грн |
| 20+ | 144.77 грн |
Відгуки про товар
Написати відгук
Технічний опис MSS13PLP IC SWITCHES
Category: Slide Switches, Description: Switch: slide; Pos: 2; SPDT; 2A/250VAC; ON-ON; THT; 12.7x6.6x6.35mm, Mounting: THT, Contact material: copper alloy, Flammability rating: UL94V-0, Type of switch: slide, Mechanical durability: 30000 cycles, AC contacts rating @R: 2A / 250V AC, Operating temperature: -30...85°C, Contacts configuration: SPDT, Stable positions number: 2, Leads: angled; for PCB, Knob height: 4.72mm, Body material: stainless steel, Body dimensions: 12.7x6.6x6.35mm, Switching method: ON-ON, Min. insulation resistance: 1GΩ, Max. contact resistance:: 10mΩ, Number of positions: 2, Actuator material: polyamide, Contact plating: silver plated, Terminal pitch: 4.7mm.
