Продукція > SEFRAM > MW3036B

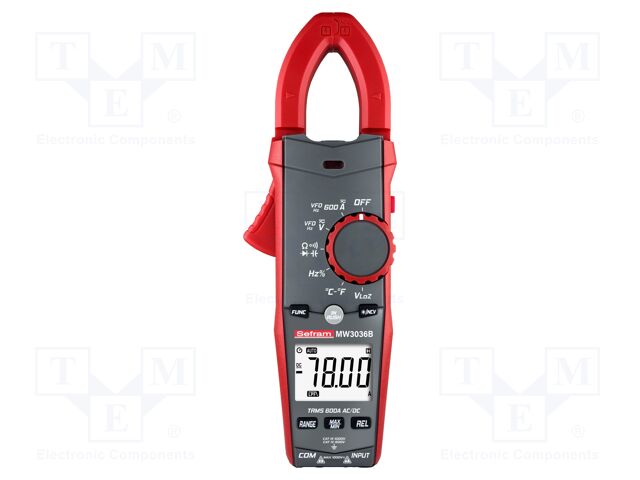

MW3036B

MW3036B SEFRAM

MW3036B.pdf Виробник: SEFRAM
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; LCD; (6000); 27mm
Type of meter: multifunction
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; inrush current; resistance; temperature
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.8% + 5 digit)
DC current measuring range: 60A; 600A
DC current measuring accuracy: ±(3% + 10 digit)
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 6MΩ; 600MΩ
Capacitance measuring range: 6nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF; 100mF
Capacitance measuring accuracy: ±(4%+ 5 digit)
Resistance measuring accuracy: ±(1%+3 digit)
Test: diodes
Continuity test: acoustic indication; <30Ω
Power supply: battery AAA 1,5V x3
Standard equipment: case; K-type thermocouple; test leads; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function
Illumination: yes
Sampling: 3x/s
Temperature measuring range: -20...1000°C
True effective value measurement: True RMS AC
Kind of meter: digital; pincers type
Bandwidth for AC voltage measurements: 45Hz...1kHz
AC current measuring range: 6A; 60A; 600A
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 10MHz
Diode test: 3V
Battery/ rechargeable battery: battery AAA 1,5V x3
Frequency measuring accuracy: ±(0.5%+5 digit)
AC current measuring accuracy: ±(2.5% + 5 digit)
Max jaw capacity: 27mm
Dimensions: 220x75x35mm
на замовлення 1 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+16660.84 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис MW3036B SEFRAM

Category: Meters and AC/DC Clamp Probes, Description: Meter: multifunction; digital,pincers type; LCD; (6000); 27mm, Type of meter: multifunction, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; inrush current; resistance; temperature, Kind of display used: LCD, Display parameters: (6000), DC voltage measuring range: 6V; 60V; 600V; 1kV, DC voltage measuring accuracy: ±(0.5% + 5 digit), AC voltage measuring range: 6V; 60V; 600V; 1kV, AC voltage measuring accuracy: ±(0.8% + 5 digit), DC current measuring range: 60A; 600A, DC current measuring accuracy: ±(3% + 10 digit), Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 6MΩ; 600MΩ, Capacitance measuring range: 6nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF; 100mF, Capacitance measuring accuracy: ±(4%+ 5 digit), Resistance measuring accuracy: ±(1%+3 digit), Test: diodes, Continuity test: acoustic indication; .

Інші пропозиції MW3036B за ціною від 18899.01 грн до 19993.00 грн

Фото Назва Виробник Інформація Доступність
Ціна
MW3036B MW3036B Виробник : SEFRAM 4393705.pdf Description: SEFRAM - MW3036B - MESSZANGE, TRMS, 1KV, 600A, AUTO
tariffCode: 90303370
Messwert Gleichspannung, max.: 1kV
Messwert Wechselspannung, max.: 1kV
Messwert Widerstand, max.: 6Mohm
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: TBA
usEccn: 3A992.a
Backenöffnung, max.: 27mm
euEccn: NLR
DMM-Messverfahren: Echteffektivwert
Anzahl der Stellen: 4
DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Diode, Frequenz, Widerstand, Temperatur
Produktpalette: -
productTraceability: No
Messwert Wechselstrom, max.: 600A
Bereichswahl: Automatisch
SVHC: No SVHC (07-Nov-2024)
на замовлення 1 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+18899.01 грн
В кошику  од. на суму  грн.
MW3036B MW3036B Виробник : SEFRAM MW3036B.pdf Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; LCD; (6000); 27mm
Type of meter: multifunction
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; inrush current; resistance; temperature
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.8% + 5 digit)
DC current measuring range: 60A; 600A
DC current measuring accuracy: ±(3% + 10 digit)
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 6MΩ; 600MΩ
Capacitance measuring range: 6nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF; 100mF
Capacitance measuring accuracy: ±(4%+ 5 digit)
Resistance measuring accuracy: ±(1%+3 digit)
Test: diodes
Continuity test: acoustic indication; <30Ω
Power supply: battery AAA 1,5V x3
Standard equipment: case; K-type thermocouple; test leads; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function
Illumination: yes
Sampling: 3x/s
Temperature measuring range: -20...1000°C
True effective value measurement: True RMS AC
Kind of meter: digital; pincers type
Bandwidth for AC voltage measurements: 45Hz...1kHz
AC current measuring range: 6A; 60A; 600A
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 10MHz
Diode test: 3V
Battery/ rechargeable battery: battery AAA 1,5V x3
Frequency measuring accuracy: ±(0.5%+5 digit)
AC current measuring accuracy: ±(2.5% + 5 digit)
Max jaw capacity: 27mm
Dimensions: 220x75x35mm
кількість в упаковці: 1 шт
на замовлення 1 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
1+19993.00 грн
В кошику  од. на суму  грн.
