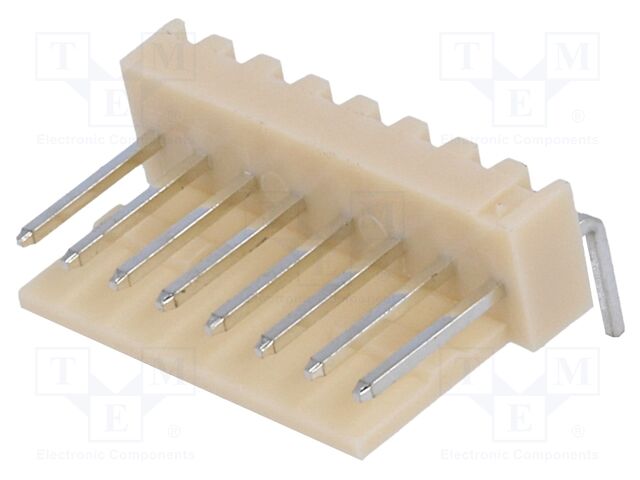

NS25-W8K NINIGI
Виробник: NINIGICategory: Raster signal connectors 2,54mm
Description: Connector: wire-board; socket; male; PIN: 8; NS25; 3A; 250V; THT; 1x8
Type of connector: wire-board
Connector: socket
Kind of connector: male
Number of pins: 8
Manufacturer series: NS25
Current rating: 3A
Rated voltage: 250V
Spatial orientation: angled 90°
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 1x8
Contact plating: tinned
Flammability rating: UL94V-0
Max. contact resistance:: 10mΩ
Enclosure material: polyamide
A dimension: 20.32mm
B dimension: 17.78mm
Leads dimensions: 0.64x0.64x3.3mm
Operating temperature: -25...85°C
на замовлення 19480 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 60+ | 7.20 грн |
| 80+ | 5.35 грн |
| 200+ | 4.02 грн |
| 1000+ | 3.35 грн |
| 5000+ | 2.67 грн |
Відгуки про товар
Написати відгук
Технічний опис NS25-W8K NINIGI
Category: Raster signal connectors 2,54mm, Description: Connector: wire-board; socket; male; PIN: 8; NS25; 3A; 250V; THT; 1x8, Type of connector: wire-board, Connector: socket, Kind of connector: male, Number of pins: 8, Manufacturer series: NS25, Current rating: 3A, Rated voltage: 250V, Spatial orientation: angled 90°, Electrical mounting: THT, Contacts pitch: 2.54mm, Connector pinout layout: 1x8, Contact plating: tinned, Flammability rating: UL94V-0, Max. contact resistance:: 10mΩ, Enclosure material: polyamide, A dimension: 20.32mm, B dimension: 17.78mm, Leads dimensions: 0.64x0.64x3.3mm, Operating temperature: -25...85°C, кількість в упаковці: 10 шт.
