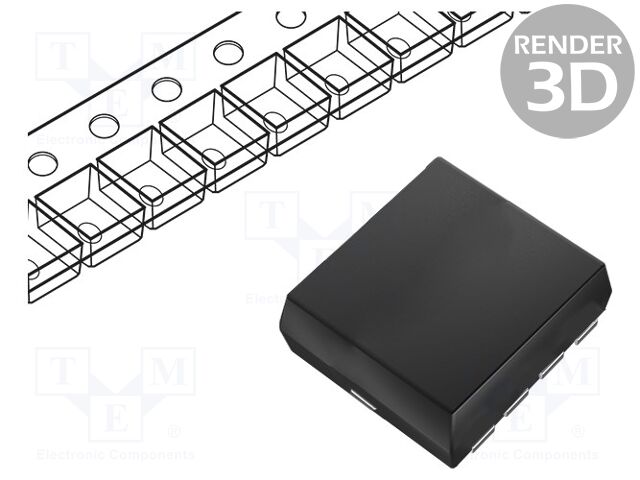

NVTFS5116PLTAG onsemi
Виробник: onsemi
Description: MOSFET P-CH 60V 6A 8WDFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
Rds On (Max) @ Id, Vgs: 52mOhm @ 7A, 10V
Power Dissipation (Max): 3.2W (Ta), 21W (Tc)
Vgs(th) (Max) @ Id: 3V @ 250µA
Supplier Device Package: 8-WDFN (3.3x3.3)
Grade: Automotive
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1258 pF @ 25 V
Qualification: AEC-Q101
| Кількість | Ціна |
|---|---|
| 1500+ | 26.50 грн |
| 3000+ | 23.50 грн |
| 4500+ | 22.47 грн |
| 7500+ | 20.01 грн |
Відгуки про товар
Написати відгук
Технічний опис NVTFS5116PLTAG onsemi
Description: MOSFET P-CH 60V 6A 8WDFN, Packaging: Tape & Reel (TR), Package / Case: 8-PowerWDFN, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: P-Channel, Current - Continuous Drain (Id) @ 25°C: 6A (Ta), Rds On (Max) @ Id, Vgs: 52mOhm @ 7A, 10V, Power Dissipation (Max): 3.2W (Ta), 21W (Tc), Vgs(th) (Max) @ Id: 3V @ 250µA, Supplier Device Package: 8-WDFN (3.3x3.3), Grade: Automotive, Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 60 V, Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 1258 pF @ 25 V, Qualification: AEC-Q101.
Інші пропозиції NVTFS5116PLTAG за ціною від 22.50 грн до 94.15 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NVTFS5116PLTAG | onsemi |
MOSFETs Single P-Channel 60V,14A,52mohm |
на замовлення 13493 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
|
|
NVTFS5116PLTAG | onsemi |
Description: MOSFET P-CH 60V 6A 8WDFN Packaging: Cut Tape (CT) Package / Case: 8-PowerWDFN Mounting Type: Surface Mount Operating Temperature: -55°C ~ 175°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: P-Channel Current - Continuous Drain (Id) @ 25°C: 6A (Ta) Rds On (Max) @ Id, Vgs: 52mOhm @ 7A, 10V Power Dissipation (Max): 3.2W (Ta), 21W (Tc) Vgs(th) (Max) @ Id: 3V @ 250µA Supplier Device Package: 8-WDFN (3.3x3.3) Grade: Automotive Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V Vgs (Max): ±20V Drain to Source Voltage (Vdss): 60 V Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 1258 pF @ 25 V Qualification: AEC-Q101 |
на замовлення 8921 шт: термін постачання 21-31 дні (днів) |
|
| NVTFS5116PLTAG |
|
Виробник: onsemi
MOSFETs Single P-Channel 60V,14A,52mohm
MOSFETs Single P-Channel 60V,14A,52mohm
на замовлення 13493 шт:
термін постачання 21-30 дні (днів)| Кількість | Ціна |
|---|---|
| 6+ | 63.34 грн |
| 10+ | 50.95 грн |
| 100+ | 34.95 грн |
| 500+ | 29.75 грн |
| 1000+ | 25.32 грн |
| 1500+ | 23.56 грн |
| 3000+ | 22.50 грн |
| NVTFS5116PLTAG |
|
Виробник: onsemi
Description: MOSFET P-CH 60V 6A 8WDFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
Rds On (Max) @ Id, Vgs: 52mOhm @ 7A, 10V
Power Dissipation (Max): 3.2W (Ta), 21W (Tc)
Vgs(th) (Max) @ Id: 3V @ 250µA
Supplier Device Package: 8-WDFN (3.3x3.3)
Grade: Automotive
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1258 pF @ 25 V
Qualification: AEC-Q101
Description: MOSFET P-CH 60V 6A 8WDFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
Rds On (Max) @ Id, Vgs: 52mOhm @ 7A, 10V
Power Dissipation (Max): 3.2W (Ta), 21W (Tc)
Vgs(th) (Max) @ Id: 3V @ 250µA
Supplier Device Package: 8-WDFN (3.3x3.3)
Grade: Automotive
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1258 pF @ 25 V
Qualification: AEC-Q101
на замовлення 8921 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 4+ | 94.15 грн |
| 10+ | 56.99 грн |
| 100+ | 37.77 грн |
| 500+ | 27.71 грн |
