ODP6033 OWON
Виробник: OWON
Category: Multichannel Power Supplies
Description: Laboratory power supply: programmable; 0÷60VDC; 0÷3A; 0÷60VDC
Type of laboratory power supply: programmable
Kind of power supply: multi-channel; symmetrical
Kind of display used: LCD 4"
Number of channels: 3
Output voltage: 0...60V DC
Output current: 0...3A
Output voltage 2: 0...60V DC
Output current 2: 0...3A
Output voltage 3: 0...6V DC
Output current 3: 0...3A
Supply voltage: 220V AC
Output voltage resolution: 1mV
Output current resolution: 1mA
Voltage stabilisation: ≤0.01%+ 3mV
Current stabilisation: ≤0.01%+ 3mA
Dimensions: 250x158x358mm

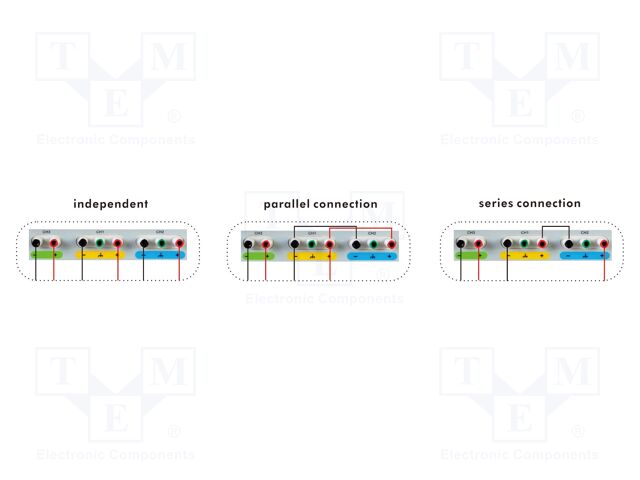

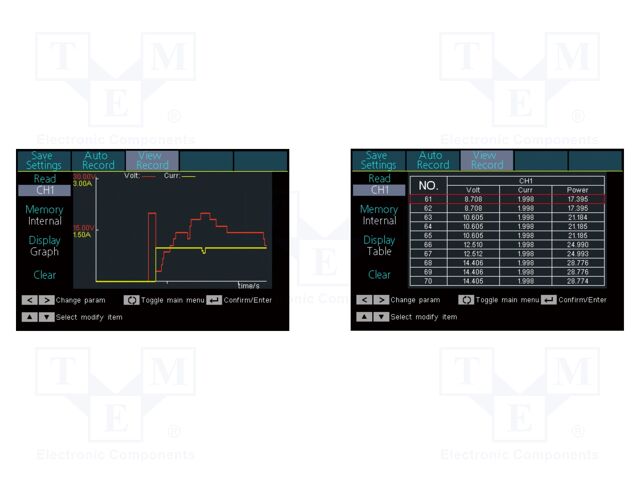

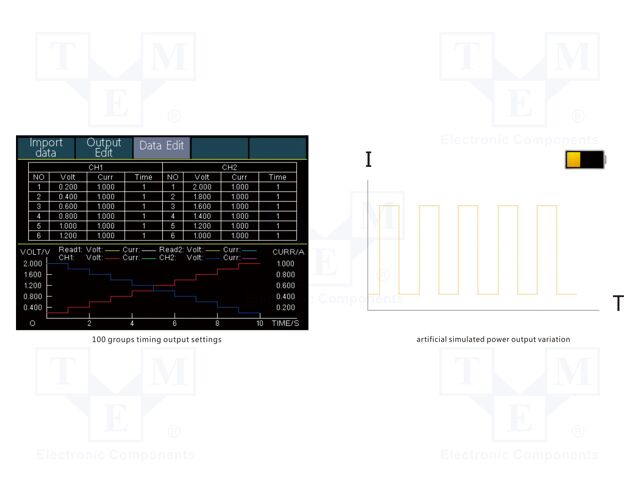

Measuring instrument features: datalogging; function artificial simulated power output variation; low distortion level; operation mode:individual, parallel or serial; smart cooling control; three independent controllable channels
Standard equipment: fuse; mains cable; user's manual
Protection: anti-overvoltage OVP; over current OCP
Manufacturer series: ODP
Maximum power: 378W

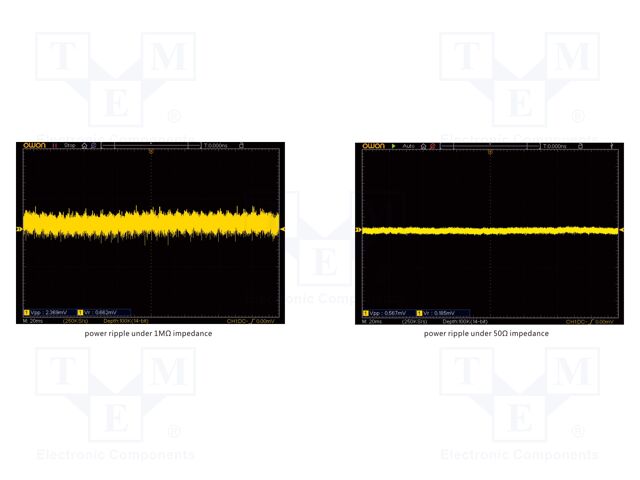

Voltage (regulated) ripple and noise: ≤1mVrms; ≤4mVpp

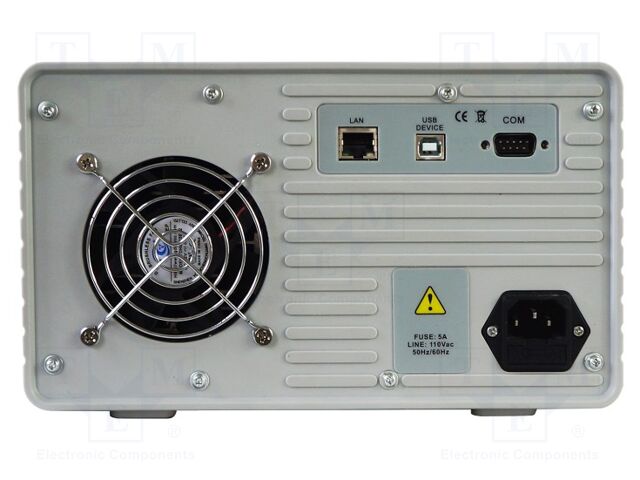

Interface: LAN; RS232; USB
Connectors for the country: Europe
Software: LabVIEW
Operating modes: constant current; constant voltage
