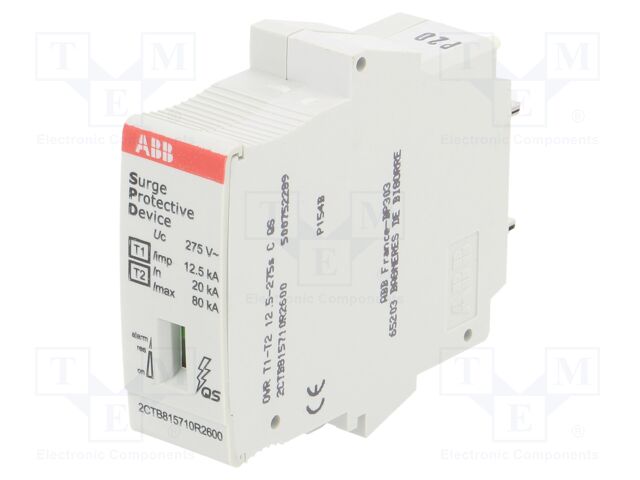

OVR T1-T2 12.5-275S C QS ABB

Category: Surge Arresters, Description: Cartridge for surge arrestor; Type 1+2; Poles: 1; In 8/20us: 80kA, Surge arresters features: fitted with mechanical indicators of each arrester operation, Mounting: for DIN rail mounting, IP rating: IP20, Kind of network: TN-C; TN-S; TT, Kind of surge arrester: Type 1+2, Operating temperature: -40...80°C, Number of poles: 1, Rated voltage: 230/400V AC, Max. operating voltage: 275V AC, Protection level at rated imp. current: 1.1kV, Rated impulse current In (10/350)µs: 12.5kA, Rated impulse current In (8/20)µs: 80kA, Type of installation accessories: cartridge for surge arrestor.
