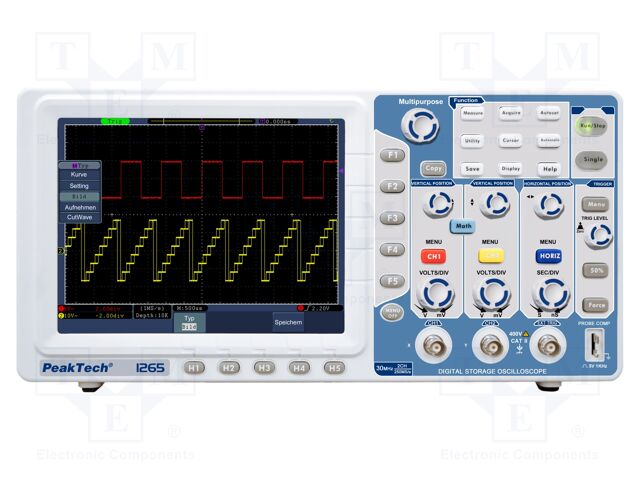

P 1265

P 1265 PEAKTECH


pVersion=0046&contRep=ZT&docId=005056AB90B41EDABCCDD8401CA5A0C7&compId=P%201265.pdf?ci_sign=11e86f9e1dceca1c4fb43f7a1391fc795887c5ed Виробник: PEAKTECH
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 30MHz; 125Msps; 10kpts; LCD TFT 8"
Type of oscilloscope: digital
Band: 30MHz
Number of channels: 2
Memory record length: 10kpts
Sampling: 125Msps
Trigger modes: automatic; normal; single
Input coupling: AC, DC, GND
Standard equipment: mains cable; oscilloscope probe x2; test adapter; USB cable; user's manual
Interface: LAN; USB; VGA
Input impedance: 1MΩ/10pF
Rise time: ≤11ns
Input sensitivity: 5mV/div...5V/div
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function
Software: included
Vertical resolution: 8bit
Horizontal accuracy: ±3%
Trigger source: CH1; CH2; external signal
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 400V
Kind of display used: LCD TFT 8"
Time base: 4n...100s/div
Operating temperature: 0...40°C
Body dimensions: 348x170x78mm
Connectors for the country: Europe
Power consumption: 15W
Display resolution: 800x600
Supply voltage: 100...240V AC
Trigger: falling-edge; pulse; rising-edge; slope; video signal
кількість в упаковці: 1 шт
товару немає в наявності

В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис P 1265 PEAKTECH

Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 2; 30MHz; 125Msps; 10kpts; LCD TFT 8", Type of oscilloscope: digital, Band: 30MHz, Number of channels: 2, Memory record length: 10kpts, Sampling: 125Msps, Trigger modes: automatic; normal; single, Input coupling: AC, DC, GND, Standard equipment: mains cable; oscilloscope probe x2; test adapter; USB cable; user's manual, Interface: LAN; USB; VGA, Input impedance: 1MΩ/10pF, Rise time: ≤11ns, Input sensitivity: 5mV/div...5V/div, Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function, Software: included, Vertical resolution: 8bit, Horizontal accuracy: ±3%, Trigger source: CH1; CH2; external signal, Trigger coupling: AC; DC; highpass; lowpass, Max. input voltage: 400V, Kind of display used: LCD TFT 8", Time base: 4n...100s/div, Operating temperature: 0...40°C, Body dimensions: 348x170x78mm, Connectors for the country: Europe, Power consumption: 15W, Display resolution: 800x600, Supply voltage: 100...240V AC, Trigger: falling-edge; pulse; rising-edge; slope; video signal, кількість в упаковці: 1 шт.
