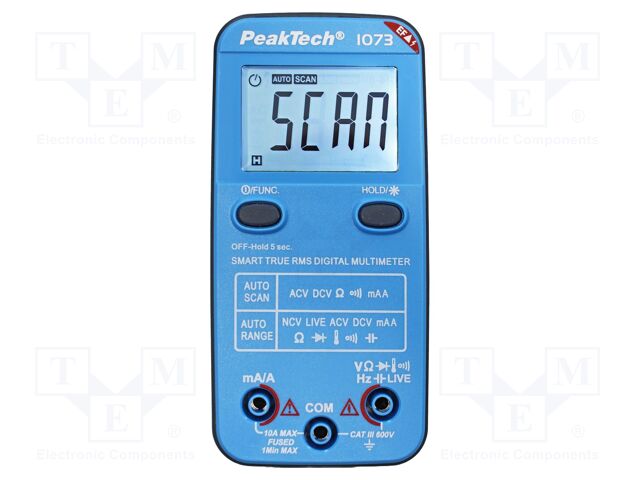

P 1073 PEAKTECH
Виробник: PEAKTECHCategory: Portable digital multimeters
Description: Digital multimeter; LCD; 3,75 digit (3999); I DC: 4000mA,10A
Type of meter: digital multimeter
Measuring instrument features: automatic measurement of many parameters; low battery indicator
Kind of display used: LCD
Display parameters: 3,75 digit (3999)
AC current measuring range: 4A; 10A
AC current measuring accuracy: ±(1.5% + 3 digit)@4A; ±(2% + 3 digit)@10A
DC voltage measuring range: 4V; 40V; 400V; 600V
DC voltage measuring accuracy: ±(0.5% + 3 digit)
AC voltage measuring range: 4V; 40V; 400V; 600V
AC voltage measuring accuracy: ±(1% + 3 digit) @600V; ±(1% + 6 digit) @4V
True effective value measurement: True RMS AC
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 1mF
Capacitance measuring accuracy: ±(3%+15 digit) @ 0.04µF...1mF; ±(5%+30 digit) @ 4nF
Frequency measuring range: 40Hz; 400Hz; 4kHz
Frequency measuring accuracy: ±(0.5%+3 digit)
Temperature measuring range: -200...1200°C
Temperature measurement accuracy: ±(2% + 3°C)
Test: diodes
Continuity test: acoustic indication; <50Ω
Power supply: battery LR03 AAA 1,5V x2
Standard equipment: K-type thermocouple; test leads; user's manual
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Resistance measuring accuracy: ±(0.5%+2 digit)@(2kΩ...2MΩ); ±(0.5%+3 digit)@(200Ω); ±(1.5%+3 digit)@(20MΩ)
DC current measuring accuracy: ±(1% + 3 digit) @4A; ±(1.5% + 3 digit) @10A
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature (external probe required)
Conform to the norm: CAT III 600V
DC current measuring range: 4A; 10A
Diode test: 1mA @1.5V
Dimensions (W x H x D): 130x63x35mm
на замовлення 3 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1544.07 грн |
| 3+ | 1429.74 грн |
Відгуки про товар
Написати відгук
Технічний опис P 1073 PEAKTECH
Category: Portable digital multimeters, Description: Digital multimeter; LCD; 3,75 digit (3999); I DC: 4000mA,10A, Type of meter: digital multimeter, Measuring instrument features: automatic measurement of many parameters; low battery indicator, Kind of display used: LCD, Display parameters: 3,75 digit (3999), AC current measuring range: 4A; 10A, AC current measuring accuracy: ±(1.5% + 3 digit)@4A; ±(2% + 3 digit)@10A, DC voltage measuring range: 4V; 40V; 400V; 600V, DC voltage measuring accuracy: ±(0.5% + 3 digit), AC voltage measuring range: 4V; 40V; 400V; 600V, AC voltage measuring accuracy: ±(1% + 3 digit) @600V; ±(1% + 6 digit) @4V, True effective value measurement: True RMS AC, Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ, Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 1mF, Capacitance measuring accuracy: ±(3%+15 digit) @ 0.04µF...1mF; ±(5%+30 digit) @ 4nF, Frequency measuring range: 40Hz; 400Hz; 4kHz, Frequency measuring accuracy: ±(0.5%+3 digit), Temperature measuring range: -200...1200°C, Temperature measurement accuracy: ±(2% + 3°C), Test: diodes, Continuity test: acoustic indication; .
