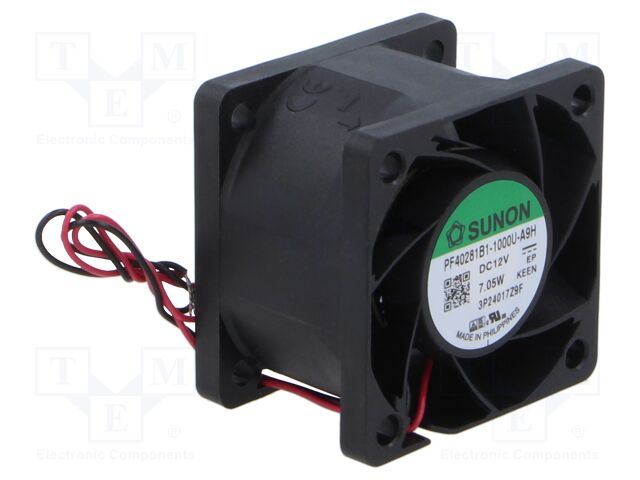

PF40281B1-1000U-A9H SUNON
Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x28mm; 42.31m3/h; 63.7dBA; ball; 28AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6.5...13.2V DC
Fan dimensions: 40x40x28mm
Power consumption: 7.05W
Current rating: 587mA
Fan efficiency: 42.31m3/h
Noise level: 63.7dBA
Kind of Bearing: ball
Rotational rate/speed: 17600 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 52.07mm H2O
Wire size: 28AWG
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 772.20 грн |
| 10+ | 671.76 грн |
| 50+ | 641.57 грн |
| 200+ | 613.05 грн |
Відгуки про товар
Написати відгук
Технічний опис PF40281B1-1000U-A9H SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x28mm; 42.31m3/h; 63.7dBA; ball; 28AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6.5...13.2V DC, Fan dimensions: 40x40x28mm, Power consumption: 7.05W, Current rating: 587mA, Fan efficiency: 42.31m3/h, Noise level: 63.7dBA, Kind of Bearing: ball, Rotational rate/speed: 17600 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 52.07mm H2O, Wire size: 28AWG.
Інші пропозиції PF40281B1-1000U-A9H
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
PF40281B1-1000U-A9H | Sunon Fans |
Description: FAN AXIAL 40X28MM 12VDC WIRE Features: Auto Restart Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Ball RPM: 17600 RPM Air Flow: 24.9 CFM (0.697m³/min) Width: 28.00mm Termination: 2 Wire Leads Approval Agency: CCC, CE, cURus, TUV Fan Type: Tubeaxial Noise: 56.0dB(A) Static Pressure: 2.050 in H2O (510.6 Pa) Power (Watts): 6.12 W |
товару немає в наявності |
Мінімальне замовлення: 150 шт В кошику од. на суму грн. |
 |
PF40281B1-1000U-A9H | Sunon |
DC Fans DC Axial Fan, 40x40x28mm, 12VDC, Ball, Lead Wires, Auto Restart, Low Vibration |
товару немає в наявності |
В кошику од. на суму грн. |
| PF40281B1-1000U-A9H |
|
Виробник: Sunon Fans
Description: FAN AXIAL 40X28MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 17600 RPM
Air Flow: 24.9 CFM (0.697m³/min)
Width: 28.00mm
Termination: 2 Wire Leads
Approval Agency: CCC, CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 56.0dB(A)
Static Pressure: 2.050 in H2O (510.6 Pa)
Power (Watts): 6.12 W
Description: FAN AXIAL 40X28MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 17600 RPM
Air Flow: 24.9 CFM (0.697m³/min)
Width: 28.00mm
Termination: 2 Wire Leads
Approval Agency: CCC, CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 56.0dB(A)
Static Pressure: 2.050 in H2O (510.6 Pa)
Power (Watts): 6.12 W
товару немає в наявності
Мінімальне замовлення: 150 шт
В кошику
од. на суму грн.
| PF40281B1-1000U-A9H |
|
Виробник: Sunon
DC Fans DC Axial Fan, 40x40x28mm, 12VDC, Ball, Lead Wires, Auto Restart, Low Vibration
DC Fans DC Axial Fan, 40x40x28mm, 12VDC, Ball, Lead Wires, Auto Restart, Low Vibration
товару немає в наявності
В кошику
од. на суму грн.
