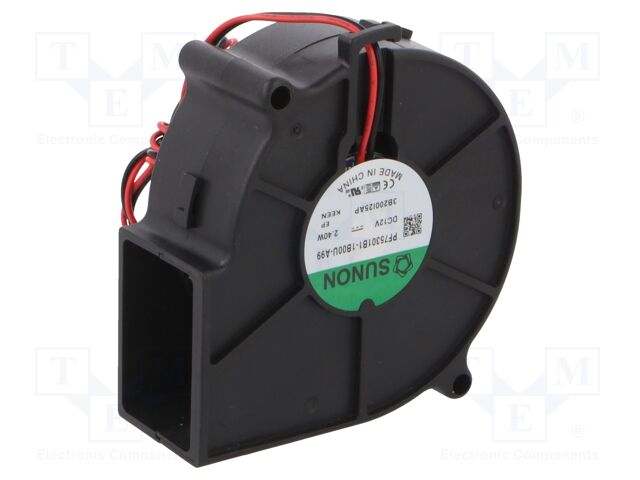

PF75301B1-1B00U-A99 Sunon Fans
Виробник: Sunon FansDescription: Thermal Products
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Bearing Type: Ball
RPM: 3400 RPM
Air Flow: 15.5 CFM (0.434m³/min)
Width: 30.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Blower
Noise: 42.0dB(A)
Static Pressure: 0.570 in H2O (142.0 Pa)
Part Status: Active
Power (Watts): 2.4 W
Size / Dimension: Rectangular/Rounded - 75.7mm L x 75.6mm H
на замовлення 1635 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1643.77 грн |
| 10+ | 1296.84 грн |
| 25+ | 1188.78 грн |
| 50+ | 1042.69 грн |
| 150+ | 1026.71 грн |
Відгуки про товар
Написати відгук
Технічний опис PF75301B1-1B00U-A99 Sunon Fans
Category: DC12V Fans, Description: Fan: DC; blower; 12VDC; 75x75x30mm; 26.34m3/h; 42dBA; ball; 3400rpm, Type of fan: DC, Kind of fan: blower, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 75x75x30mm, Power consumption: 2.4W, Current rating: 0.2A, Fan efficiency: 26.34m3/h, Noise level: 42dBA, Kind of Bearing: ball, Rotational rate/speed: 3400rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.295m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, кількість в упаковці: 1 шт.
Інші пропозиції PF75301B1-1B00U-A99 за ціною від 977.91 грн до 1839.79 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PF75301B1-1B00U-A99 | Виробник : Sunon |
Blowers & Centrifugal Fans DC Blower, 75x75x30mm, 12VDC, Ball, Lead Wires, Auto Restart |
на замовлення 144 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
| PF75301B1-1B00U-A99 | Виробник : Sunon |
PF75301B1-1B00U-A99 |
на замовлення 764 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||
 |
PF75301B1-1B00U-A99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; blower; 12VDC; 75x75x30mm; 26.34m3/h; 42dBA; ball; 3400rpm Type of fan: DC Kind of fan: blower Supply voltage: 12V DC Operating voltage: 6...13.8V DC Fan dimensions: 75x75x30mm Power consumption: 2.4W Current rating: 0.2A Fan efficiency: 26.34m3/h Noise level: 42dBA Kind of Bearing: ball Rotational rate/speed: 3400rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x2 Lead length: 0.295m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC кількість в упаковці: 1 шт |
товару немає в наявності |
|||||||||||||
|
|
PF75301B1-1B00U-A99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; blower; 12VDC; 75x75x30mm; 26.34m3/h; 42dBA; ball; 3400rpm Type of fan: DC Kind of fan: blower Supply voltage: 12V DC Operating voltage: 6...13.8V DC Fan dimensions: 75x75x30mm Power consumption: 2.4W Current rating: 0.2A Fan efficiency: 26.34m3/h Noise level: 42dBA Kind of Bearing: ball Rotational rate/speed: 3400rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x2 Lead length: 0.295m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC |
товару немає в наявності |
