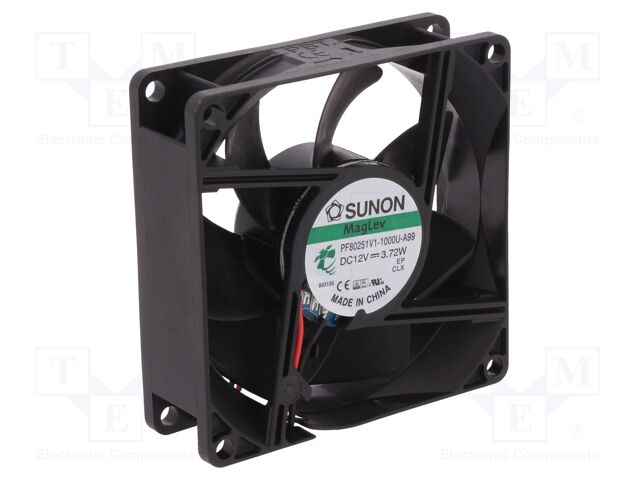

PF80251V1-1000U-A99 SUNON
Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x25mm; 101.4m3/h; 44.7dBA; Vapo; 4800rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 80x80x25mm
Power consumption: 3.72W
Current rating: 0.31A
Fan efficiency: 101.4m3/h
Noise level: 44.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4800rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Lead length: 0.315m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 10.41mm H2O
Wire size: 24AWG
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 610.99 грн |
| 10+ | 469.01 грн |
| 50+ | 416.06 грн |
| 200+ | 355.54 грн |
Відгуки про товар
Написати відгук
Технічний опис PF80251V1-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 80x80x25mm; 101.4m3/h; 44.7dBA; Vapo; 4800rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 80x80x25mm, Power consumption: 3.72W, Current rating: 0.31A, Fan efficiency: 101.4m3/h, Noise level: 44.7dBA, Kind of Bearing: Vapo, Rotational rate/speed: 4800rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Lead length: 0.315m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 10.41mm H2O, Wire size: 24AWG.
Інші пропозиції PF80251V1-1000U-A99 за ціною від 548.05 грн до 1089.57 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PF80251V1-1000U-A99 | Sunon Fans |
Description: FAN AXIAL 80X25MM 12VDC WIRE Features: Auto Restart Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Vapo-Bearing™ RPM: 4800 RPM Air Flow: 60.0 CFM (1.68m³/min) Width: 25.00mm Weight: 0.201 lb (91.17 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 44.7dB(A) Static Pressure: 0.410 in H2O (102.1 Pa) Part Status: Active Power (Watts): 3.72 W |
на замовлення 164 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
| PF80251V1-1000U-A99 | Sunon |
DC Fan Axial Vapo Bearing 12V 53CFM 44.7dB 80 X 80 X 25mm |
на замовлення 6528 шт: термін постачання 21-31 дні (днів) |
|
| PF80251V1-1000U-A99 |
|
Виробник: Sunon Fans
Description: FAN AXIAL 80X25MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Vapo-Bearing™
RPM: 4800 RPM
Air Flow: 60.0 CFM (1.68m³/min)
Width: 25.00mm
Weight: 0.201 lb (91.17 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 44.7dB(A)
Static Pressure: 0.410 in H2O (102.1 Pa)
Part Status: Active
Power (Watts): 3.72 W
Description: FAN AXIAL 80X25MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Vapo-Bearing™
RPM: 4800 RPM
Air Flow: 60.0 CFM (1.68m³/min)
Width: 25.00mm
Weight: 0.201 lb (91.17 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 44.7dB(A)
Static Pressure: 0.410 in H2O (102.1 Pa)
Part Status: Active
Power (Watts): 3.72 W
на замовлення 164 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1089.57 грн |
| 10+ | 847.62 грн |
| 25+ | 772.56 грн |
| 50+ | 674.69 грн |
| 100+ | 627.75 грн |
| PF80251V1-1000U-A99 |
|
Виробник: Sunon
DC Fan Axial Vapo Bearing 12V 53CFM 44.7dB 80 X 80 X 25mm
DC Fan Axial Vapo Bearing 12V 53CFM 44.7dB 80 X 80 X 25mm
на замовлення 6528 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 16+ | 918.20 грн |
| 19+ | 758.83 грн |
| 50+ | 664.28 грн |
| 200+ | 548.05 грн |
