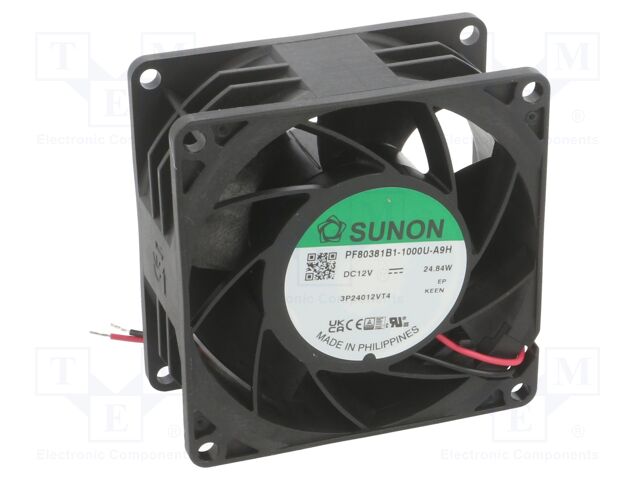

PF80381B1-1000U-A9H SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x38mm; 193.52m3/h; 68.4dBA; ball; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Fan dimensions: 80x80x38mm
Power consumption: 24.84W
Current rating: 2.07A
Fan efficiency: 193.52m3/h
Noise level: 68.4dBA
Kind of Bearing: ball
Rotational rate/speed: 11200 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 68.07mm H2O
Wire size: 24AWG
Fan motor: brushless DC
Operating voltage: 6.3...13.2V DC
Additional functions: autorestart
Insulation class: A
на замовлення 163 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1229.21 грн |
| 10+ | 1070.35 грн |
| 40+ | 998.54 грн |
Відгуки про товар
Написати відгук
Технічний опис PF80381B1-1000U-A9H SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 80x80x38mm; 193.52m3/h; 68.4dBA; ball; 24AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Fan dimensions: 80x80x38mm, Power consumption: 24.84W, Current rating: 2.07A, Fan efficiency: 193.52m3/h, Noise level: 68.4dBA, Kind of Bearing: ball, Rotational rate/speed: 11200 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 68.07mm H2O, Wire size: 24AWG, Fan motor: brushless DC, Operating voltage: 6.3...13.2V DC, Additional functions: autorestart, Insulation class: A, кількість в упаковці: 1 шт.
Інші пропозиції PF80381B1-1000U-A9H за ціною від 1112.08 грн до 2225.40 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PF80381B1-1000U-A9H | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 80x80x38mm; 193.52m3/h; 68.4dBA; ball; 24AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Fan dimensions: 80x80x38mm Power consumption: 24.84W Current rating: 2.07A Fan efficiency: 193.52m3/h Noise level: 68.4dBA Kind of Bearing: ball Rotational rate/speed: 11200 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 68.07mm H2O Wire size: 24AWG Fan motor: brushless DC Operating voltage: 6.3...13.2V DC Additional functions: autorestart Insulation class: A кількість в упаковці: 1 шт |
на замовлення 163 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| PF80381B1-1000U-A9H | Виробник : Sunon Fans |
Description: FAN 60X38MM 12VDC Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Ball RPM: 11200 RPM Air Flow: 113.9 CFM (3.19m³/min) Width: 38.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, cURus, TUV Fan Type: Tubeaxial Noise: 63.4dB(A) Static Pressure: 2.680 in H2O (670.0 Pa) Power (Watts): 21.6 W |
на замовлення 147 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
| PF80381B1-1000U-A9H | Виробник : Sunon |
Sunon DC Fan, 80x80x38mm, 12VDC, 2 Ball Bearing, D08090300G-00 |
