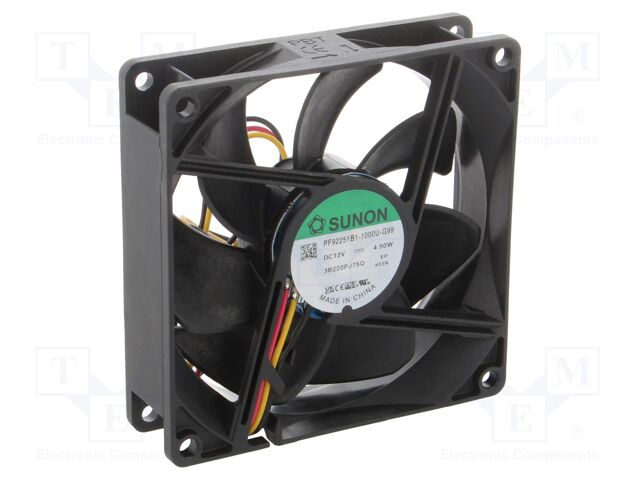

PF92251B1-1000U-G99 SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x25mm; 127.4m3/h; 46.1dBA; ball; 4500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.8V DC
Fan dimensions: 92x92x25mm
Power consumption: 4.5W
Current rating: 0.36A
Fan efficiency: 127.4m3/h
Noise level: 46.1dBA
Kind of Bearing: ball
Signal output: F type
Rotational rate/speed: 4500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
на замовлення 245 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 616.27 грн |
| 10+ | 543.28 грн |
| 56+ | 499.81 грн |
| 224+ | 470.84 грн |
Відгуки про товар
Написати відгук
Технічний опис PF92251B1-1000U-G99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x25mm; 127.4m3/h; 46.1dBA; ball; 4500rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.8V DC, Fan dimensions: 92x92x25mm, Power consumption: 4.5W, Current rating: 0.36A, Fan efficiency: 127.4m3/h, Noise level: 46.1dBA, Kind of Bearing: ball, Signal output: F type, Rotational rate/speed: 4500rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x3, Lead length: 0.3m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, кількість в упаковці: 1 шт.
Інші пропозиції PF92251B1-1000U-G99 за ціною від 565.01 грн до 739.52 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PF92251B1-1000U-G99 | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 92x92x25mm; 127.4m3/h; 46.1dBA; ball; 4500rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.8V DC Fan dimensions: 92x92x25mm Power consumption: 4.5W Current rating: 0.36A Fan efficiency: 127.4m3/h Noise level: 46.1dBA Kind of Bearing: ball Signal output: F type Rotational rate/speed: 4500rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x3 Lead length: 0.3m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC кількість в упаковці: 1 шт |
на замовлення 245 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| PF92251B1-1000U-G99 | Виробник : Sunon Fans |
Description: 12VDC FAN 92X25MM ALARM Features: Auto Restart, Speed Sensor (Tach) Packaging: Box Voltage - Rated: 12VDC Size / Dimension: Square - 92mm L x 92mm H Bearing Type: Ball RPM: 4500 RPM Air Flow: 75.0 CFM (2.10m³/min) Width: 25.00mm Termination: 3 Wire Leads Approval Agency: CCC, CE, cURus, TUV, UKCA Fan Type: Tubeaxial Noise: 46.1dB(A) Static Pressure: 0.350 in H2O (87.2 Pa) Power (Watts): 4.32 W |
товару немає в наявності |
